Plasma Cutting Torches
Sibitweld delivers an extensive portfolio of premium plasma cutting torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial cutting applications. Our precision-manufactured plasma cutting torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding cut quality across all production requirements.
PLASMA TORCH - ST50/STM50
Compatible Torch and Parts for Cebora P50
With High-Frequency Technology
Plasma Torch ST50/STM50 - Technical Specifications
Current Rating
50A
Duty Cycle
60%
Plasma Gas
Air
Gas Pressure
4.5-5.0 Bar
Gas Flow
120 LPM
Ignition Type
HF (High Frequency)
Post Flow
50 Sec (Rec.)
Standard Length
6m (20ft)
| Part No. | Reference | Description | Cable Length | Connection |
|---|---|---|---|---|
| SVD 6800 | 1526 | Plasma Cutting Torch ST50 | 6m (20ft) | 1/8G |
| SVD 6805 | 1574 | Plasma Cutting Torch ST50 | 6m (20ft) | 1/4G |
| SVD 6806 | — | Plasma Cutting Torch ST50 | 6m (20ft) | M14×1 |
| SVD 6809 | — | Plasma Cutting Torch ST50 | 6m (20ft) | M16×1.5 |
| SVD 6807 | — | Plasma Cutting Torch ST50 | 6m (20ft) | Central Adaptor |
| Part No. | Description | Cable Length | Connection |
|---|---|---|---|
| SVD 6730 | Plasma Cutting Auto Torch STM50 | 6m (20ft) | 1/8G |
| SVD 6722 | Plasma Cutting Auto Torch STM50 | 6m (20ft) | 1/4G |
| SVD 6723 | Plasma Cutting Auto Torch STM50 | 6m (20ft) | M14×1 |
| SVD 6724 | Plasma Cutting Auto Torch STM50 | 6m (20ft) | M16×1.5 |
| SVD 6736 | Plasma Cutting Auto Torch STM50 | 6m (20ft) | Central Adaptor |

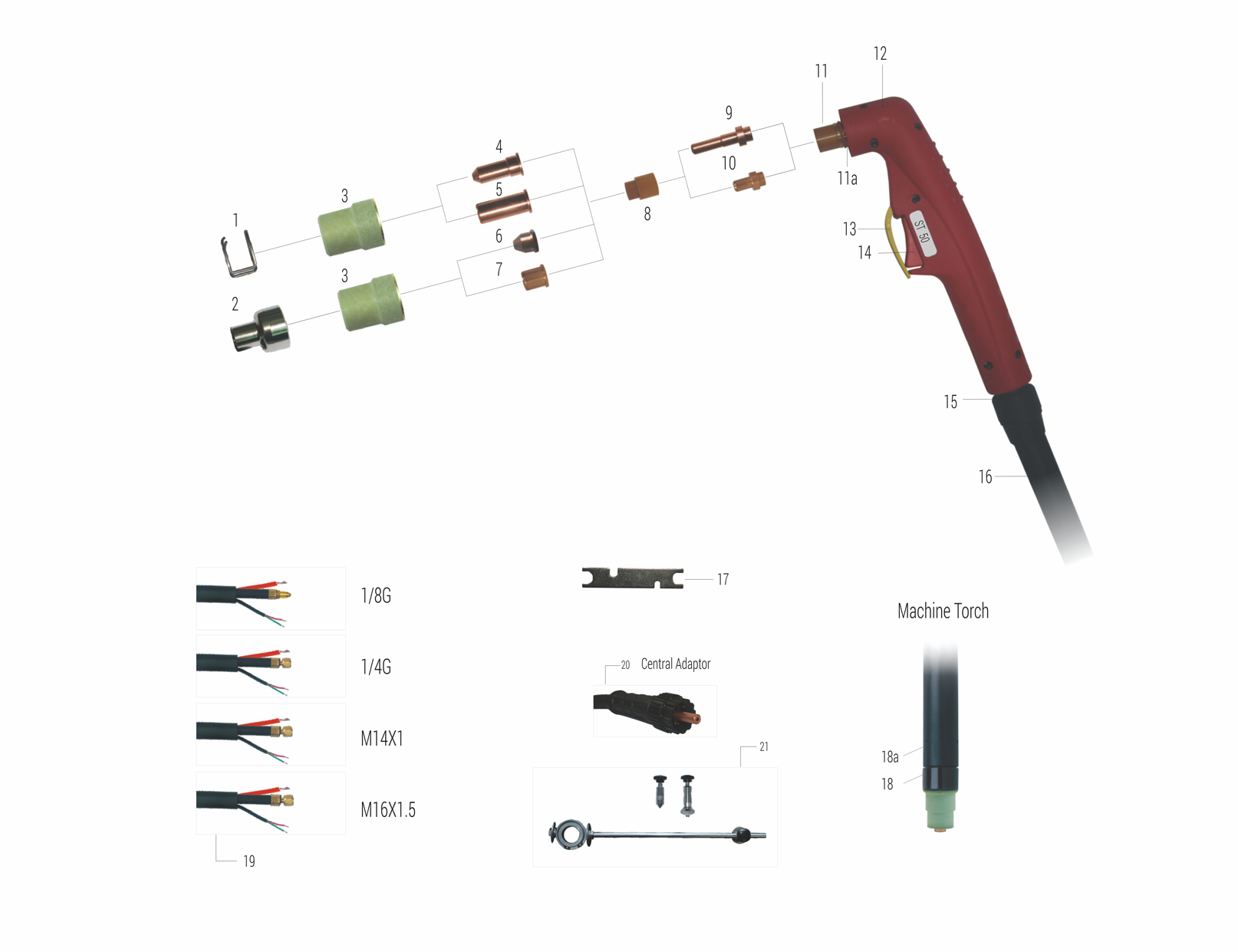

| No. | Part No. | Reference | Description |
|---|---|---|---|
| Shield Caps & Nozzles | |||
| 1 | SCW 0603 | 5.710.121 | Spacer Spring / ST50 |
| 2 | SCW 0006 | 1306 | Shield Cap for Extended Tip / ST50 |
| 3 | SFC 0008-03 | 1370 | Outside Nozzle |
| 3.1 | SFC 0008-01 | — | Outside Nozzle ST50 |
| 3.2 | SFE 0069-10 | 1395 | Outside Nozzle / Max Life ST50 |
| Extended Tips | |||
| 4 | SFE 0019-10 | 1305 | Extended Conical Tip Ø1.0mm / ST50 |
| 5 | SFE 0018-10 | 1304 | Extended Tip |
| 5.1 | SFE 0018-11 | — | Extended Tip Ø1.0mm / ST50 |
| 5.2 | SFE 0064-10 | — | Extended Tip Ø1.0mm / ST50-70 |
| 5.3 | SFE 0033-10 | — | Extended Tip Ø1.1mm / ST50-70 |
| Standard Tips | |||
| 6 | SFE 0033-11 | 1518-HF | Conical Tip Ø1.0mm / ST50-70 |
| 7 | SFE 0033-12 | 1521-HF | Tip |
| 7.1 | SFE 0065-10 | — | Tip Ø1.0mm / ST50-70 |
| 7.2 | SFP 0002 | — | Tip Ø1.1mm / ST50-70 |
| 7.3 | SFL 0015 | — | Tip Ø1.2mm / ST50-70 |
| 7.4 | SFL 0062 | — | Tip Ø1.0mm / ST50-70 |
| Diffuser & Electrodes | |||
| 8 | SFJ 0050 | 185.0031 | Diffuser ST50-70 |
| 9 | SPD 0707 | W0 300144 | Extended Electrode HF Plasma ST50 |
| 10 | SQF 0039 | 166 | Electrode HF Plasma ST50 |
| Torch Heads & Handles | |||
| 11 | SRT 0722 | — | Plasma Torch Head ST50 |
| 11a | SRA 0070 | — | O-Ring Ø12.42×1.78mm Silicon Red |
| 12 | SRT 0893 | — | Plasma Handle Manual / CB50-70 / Red |
| 13 | SFX 00006066-00 | — | Protection Part / Plasma / Yellow |
| 14 | SFX 00006066-00 | — | Trigger Joint / Small / New Type |
| Cable Assemblies - ST50 (Hand Torch) | |||
| 15 | SFX 10006066-00 | — | Cable Assembly |
| 16 | SFX 10006066-00 | — | Cable Assembly / ST50-70 / 6mm² / 6m ATT.1/8G |
| 16.1 | SFX 0628 | — | Cable Assembly / ST50-70 / 6mm² / 6m ATT. Central Adaptor |
| Cable Assemblies - STM50 (Machine Torch) | |||
| 16.2 | SMQ 6006 | — | Cable Assembly / STM50-70 / 6mm² / 6m ATT. Central Adaptor |
| 16.3 | SFJ 0085 | — | Cable Assembly / STM50-70 / 6mm² / 6m ATT.1/8G |
| 16.4 | SQF 0013 | — | Cable Assembly ST50-70 / 6m Central Adaptor |
| 16.5 | SJD 5687 | — | Spanner for Plasma |
| Machine Torch Components | |||
| 17 | SJD 5688 | — | Plasma Torch Head STM50 |
| 18 | SJD 5689 | — | Fiber Glass Position Tube / LTM |
| 18a | SJH 0078 | — | Cable Assembly LTM |
| Adaptors & Accessories | |||
| 19 | SCW 0029 | — | Connecting Adaptor 1/8G - 1/4G |
| 19.1 | — | — | Connecting Adaptor 1/8G - M14×1 |
| 19.2 | — | — | Connecting Adaptor 1/8G - M16×1.5 |
| 19.3 | — | — | Central Adaptor Torch Side Plasma 5 Pins |
| 20 | — | — | Circle Cutting Attachment / ST50 |
DISCLAIMER
⚠️ The parts shown on this page are not genuine brand name parts. They are interchangeable aftermarket parts made to fit the original equipment.
- 🔄 Modifications: Articles stated on this page are subject to modifications or substitution without prior notice.
- ™️ Trademarks: All brand names and trademarks included on this page are registered trademarks of their proper owners and remain the exclusive property of the respective owners.
- ✅ Compatibility: Parts shown are interchangeable parts made to fit the original equipment.
- 🔧 Reference Codes: All reference codes are provided for convenient research purposes only.
