Sibitweld delivers an extensive portfolio of premium plasma cutting torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial cutting applications. Our precision-manufactured plasma cutting torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding cut quality across all production requirements.

PLASMA TORCH - ST150/ STM 150

Close-up of a mechanical keyboard with black keys, red and purple backlighting, and a green and pink background.
Compatible Torch and Parts for Cebora PLASMA CB 150 (P150) - CP160 with High-Frequency Technology
High-Frequency Technology

Compatible Torch and Parts for:

Cebora PLASMA CB 150 (P150) - CP160

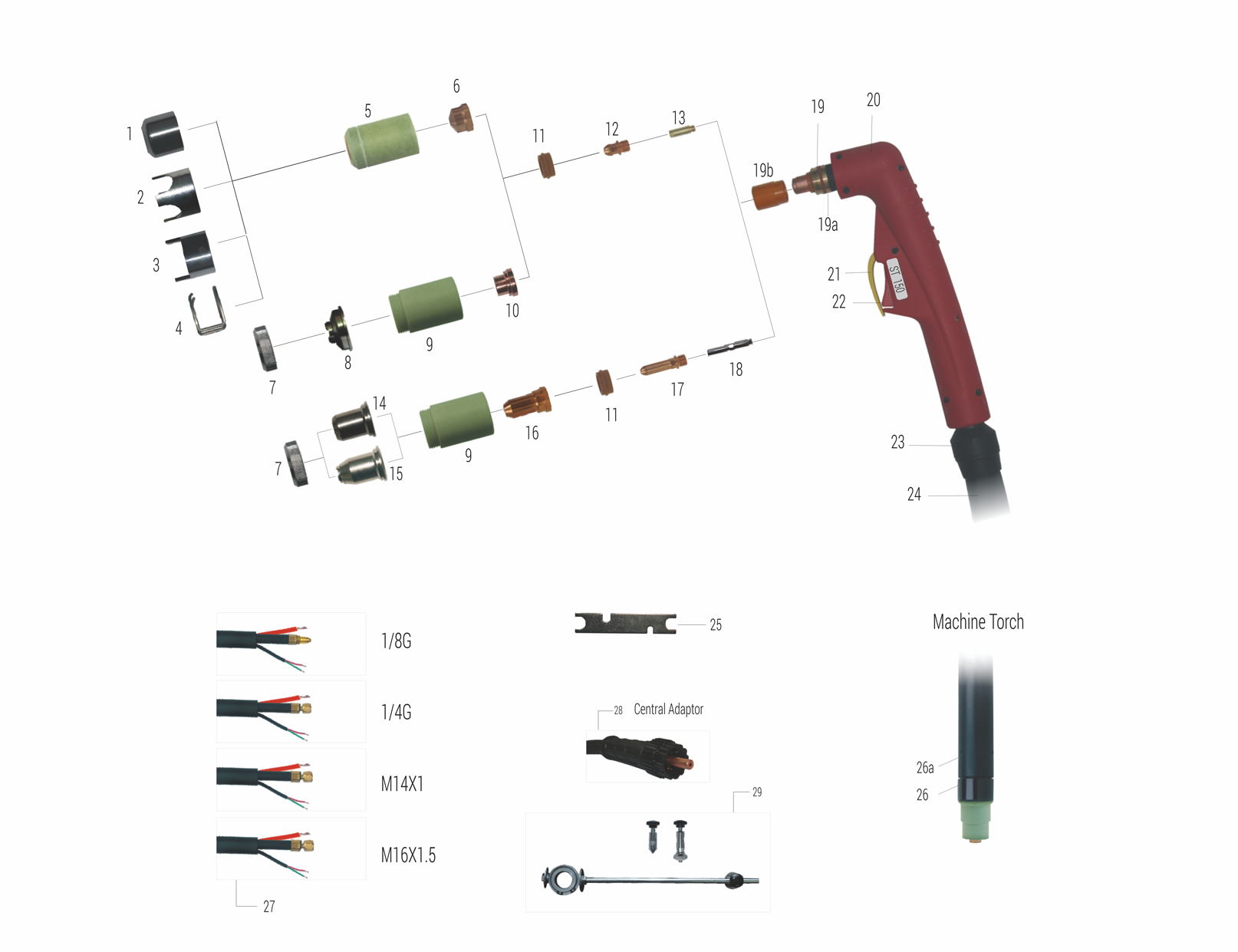

ST150 PLASMA CUTTING TORCH
Plasma Torch ST150/STM150 - Complete Catalog

Plasma Torch ST150/STM150 - Technical Specifications

Current Rating
150A
Duty Cycle
60%
Plasma Gas
Air
Gas Pressure
4.5-5.0 Bar
Gas Flow
220 LPM
Ignition Type
HF (High Frequency)
Post Flow
150 Sec (Rec.)
Standard Length
6m / 12m
Hand Torch - ST150 (Manual Cutting)
Part No. Reference Description Cable Length Connection
SVD 6820 1576 Plasma Cutting Torch ST150 6m (20ft) 1/8G
SVD 6826 — Plasma Cutting Torch ST150 6m (20ft) 1/4G
SVD 6827 — Plasma Cutting Torch ST150 6m (20ft) Central Adaptor
SVD 6828 — Plasma Cutting Torch ST150 6m (20ft) M16×1.5
SVD 6829 — Plasma Cutting Torch ST150 6m (20ft) M14×1
SVD 6830 — Plasma Cutting Torch ST150 12m (40ft) 1/8G
SVD 6836 — Plasma Cutting Torch ST150 12m (40ft) 1/4G
SVD 6837 — Plasma Cutting Torch ST150 12m (40ft) Central Adaptor
SVD 6838 — Plasma Cutting Torch ST150 12m (40ft) M16×1.5
SVD 6839 — Plasma Cutting Torch ST150 12m (40ft) M14×1
Machine Torch - STM150 (Automated Cutting)
Part No. Reference Description Cable Length Connection
SVD 6731 1577 Plasma Cutting Auto Torch STM150 6m (20ft) M16×1.5
SVD 6735 1529 Plasma Cutting Auto Torch STM150 6m (20ft) Central Adaptor
SVD 6737 — Plasma Cutting Auto Torch STM150 6m (20ft) 1/4G
SVD 6738 — Plasma Cutting Auto Torch STM150 6m (20ft) M14×1
SVD 6739 — Plasma Cutting Auto Torch STM150 6m (20ft) 1/8G
SVD 6881 — Plasma Cutting Auto Torch STM150 12m (40ft) M16×1.5
SVD 6885 — Plasma Cutting Auto Torch STM150 12m (40ft) Central Adaptor
SVD 6887 — Plasma Cutting Auto Torch STM150 12m (40ft) 1/4G
SVD 6888 — Plasma Cutting Auto Torch STM150 12m (40ft) M14×1
SVD 6889 — Plasma Cutting Auto Torch STM150 12m (40ft) 1/8G
Consumables & Spare Parts - ST150/STM150
No. Part No. Reference Description
Spacers
1 SCW 0068 1406 Gouging Spacer / ST141-150
2 SCW 0069 W0300177 Four Pointed Spacer / ST101-150
3 SCW 0067 1408 / W0300131 Double Pointed Spacer / ST101-150
4 SCW 0066 — Spacer Spring / ST100-150
Outside Nozzles
5 SFC 0007 1389 Outside Nozzle ST150
Standard Tips
6 SFE 0071-11 1371 Tip
6.1 SFE 0071-13 1372 Tip Ø1.1mm ST100-150
6.2 SFE 0071-16 1373 Tip Ø1.35mm ST100-150
6.3 SFE 0071-18 1374 Tip Ø1.6mm ST100-150
6.4 SCW 0099 W0300184 Tip Ø1.8mm ST100-150
Contact Cutting Components
7 SCW 0083 W0300180 Locking Nut Spacer for Contact Cutting / ST100-150
8 SFC 0089 — Contact Cutting Nozzle ST150
Flat Tips
9 SFE 0073-14 W0300135 Tip
10 SFE 0073-16 W0300137 Flat Tip Ø1.35mm / ST100-150
10.1 SFE 0073-18 51412 Flat Tip Ø1.6mm / ST100-150
10.2 SFP 0004 — Flat Tip Ø1.8mm / ST100-150
Diffuser & Electrodes
10.3 SFL 0089 1377 / W0300124 Diffuser ST100-150
11 SJX 0768 1376 / W0300123 Electrode HF ST100-150
12 SCW 0003 1378 Air Tube ST141-151
Contact Cutting Attachments
13 SCW 0004 W0300182 Contact Cutting Attachment / ST100-150
14 SFE 0075-14 W0300183 Long Contact Cutting Attachment / ST100-150
Extended Tips
15 SFE 0075-16 W0300178 Tip
16 SFE 0075-18 W0300179 Extended Tip Ø1.4mm / ST100-150
16.1 SFE 0080-11 1369 / W0300134 Extended Tip Ø1.6mm / ST100-150
16.2 SFL 0095 — Extended Tip Ø1.8mm / ST100-150
16.3 SJX 0764 1517 / W0300133 Contact Extended Tip 50A / ST100-150
16.4 SFJ 0030 1398 / W0300121 Extended Electrode HF Plasma ST100-150
Air Tubes & Torch Heads
17 SPD 0689 — Extended Air Tube / ST150
18 SFP 9007 — Plasma Torch Head / ST150
19 SQF 0035 185.0031 O-Ring ST150
19a SRT 0722 — Front Insulator ST141-151
Handles & Protection
19b SRA 0070 1354 Plasma Handle Manual / A Series / Red
20 SRT 0894 — Protection Part / Plasma / Yellow
21 SFX 00316060-00 — Trigger Joint / Big / New Type
Cable Assemblies - ST150 (Hand Torch)
22 SFX 00316066-00 — Cable Assembly / ST141-151 / 16mm² / 6m Central Adaptor
23 SFX 10316060-00 — Cable Assembly / ST141-151 / 16mm² / 6m ATT.1/8G
Cable Assemblies - STM150 (Machine Torch)
24 SFX 10316066-00 — Cable Assembly / STM141-151 / 16mm² / 6m Central Adaptor
24.1 SFX 0699 — Cable Assembly / STM141-151 / 16mm² / 6m ATT.1/8G
24.2 SMQ 6006 — Cable Assembly / ST141-151 / 6m Central Adaptor
24.3 SFJ 0089 — Spanner for Plasma
Machine Torch Components
24.4 SQF 0013 — Plasma Torch Head STM150
24.5 SJD 5687 — Fiber Glass Position Tube / STM
25 SJD 5688 — Cable Assembly STM
Adaptors & Accessories
26 SJD 5689 — Connecting Adaptor 1/8G - 1/4G
26a SJH 0078 — Connecting Adaptor 1/8G - M14×1
27 SCW 0077 — Connecting Adaptor 1/8G - M16×1.5
27.1 — — Central Adaptor Torch Side Plasma 5 Pins
27.2 — 169 Circle Cutting Attachment / ST100-151
Disclaimer - SIBIT

DISCLAIMER

⚠️ The parts shown on this page are not genuine brand name parts. They are interchangeable aftermarket parts made to fit the original equipment.

  • 🔄 Modifications: Articles stated on this page are subject to modifications or substitution without prior notice.
  • ™️ Trademarks: All brand names and trademarks included on this page are registered trademarks of their proper owners and remain the exclusive property of the respective owners.
  • ✅ Compatibility: Parts shown are interchangeable parts made to fit the original equipment.
  • 🔧 Reference Codes: All reference codes are provided for convenient research purposes only.
