MIG Torches
Sibitweld delivers an extensive portfolio of premium MIG torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial welding applications. Our precision-manufactured MIG torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding weld quality across all production requirements.
Sibitweld MIG Torch - P500
Compatible Torch and Parts for:
Panasonic 500A
MIG CONSUMABLES
| Parameter | Unit | Specification |
|---|---|---|
| Performance Specifications | ||
| Cooling Method | - | Air Cooling |
| Duty Cycle | % | 60% |
| Rated Current (CO₂) | A | 500 |
| Rated Current (Mixed Gases) | A | 350 |
| Welding Capabilities | ||
| Wire Size Range | mm | Ø1.2~Ø1.6 |
| Compatible Gas Types | - | CO₂, Mixed Gases |
| Compatibility | ||
| Compatible With | - | Panasonic 500A |
| Application Type | - | Manual / Semi-Automatic Welding |
| Available Torch Configurations | ||
| 3m Complete Torch | - | SMD 6240-36 |
| 4m Complete Torch | - | SMD 6246-36 |
| 5m Complete Torch | - | SMD 6247-36 |

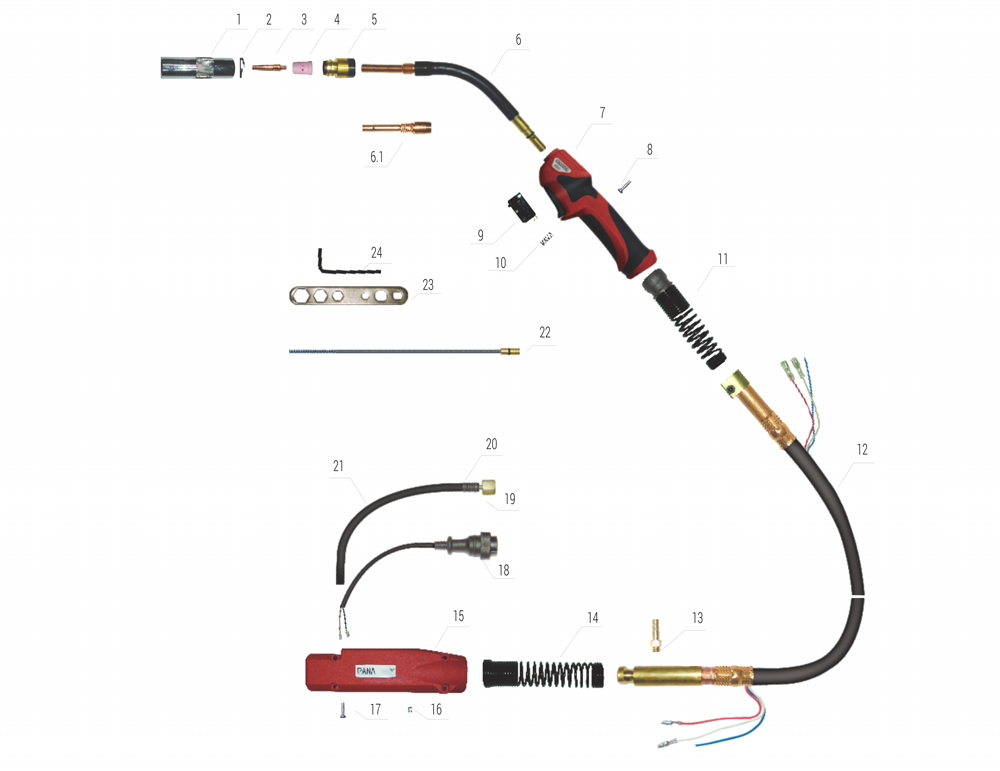

| Part No. | Product ID | Reference | Description |
|---|---|---|---|
| Nozzles | |||
| 1 | SMC 0457 | - | Nozzle Cylindrical |
| 1.1 | SMC 0457-19 | - | Nozzle Φ18.7mm Conical |
| 1.2 | SMC 0457-14 | - | Nozzle Φ14mm |
| 2 | SPD 0669 | - | Grower M25mm |
| Contact Tips (E-Cu) | |||
| 3 | SME 0746-12 | - | Contact tip M6×45×Ø1.2mm, E-Cu |
| 3.1 | SME 0746-14 | - | Contact Tip M6×45×Ø1.4mm, E-Cu |
| 3.2 | SME 0746-16 | - | Contact Tip M6×45×Ø1.6mm, E-Cu |
| Contact Tips (CuCrZr) | |||
| 3.3 | SME0746-82 | - | Contact Tip M6×45×Ø1.2mm, CuCrZr |
| 3.4 | SME0746-84 | - | Contact Tip M6×45×Ø1.4mm, CuCrZr |
| 3.5 | SME0746-86 | - | Contact Tip M6×45×Ø1.6mm, CuCrZr |
| Diffusers & Insulators | |||
| 3.6 | SMP 0978 | - | Ceramic diffuser |
| 4 | SMC 6603 | TGN00014 | Insulator |
| 5 | SMC 6603-01 | TGN00060 | Black Insulator |
| 5.1 | SMC 6603-02 | - | Yellow Insulator |
| Swan Necks | |||
| 5.2 | SMJ 0747 | - | Swan Neck |
| 6 | SMP 0975 | - | Swan Neck front part |
| 6.1 | SMP 0977 | - | Swan Neck Separable |
| Handle Components | |||
| 6.2 | SMF 0850-01 | - | MIG Handle |
| 7 | SPD 0874 | - | Screw M3×10mm |
| 8 | SRA 0186 | - | Switch For MIG/PAN |
| 9 | SPD 0860 | - | Spring For switch/PAN |
| 10 | SJR 0864 | - | Joint with Spring |
| Cable Assembly Components (50mm²) | |||
| 11 | SMX 0180-01 | - | Cable Assembly (50mm²), 3m |
| 12 | SMX 0180-02 | - | Cable Assembly (50mm²), 4m |
| 12.1 | SMX 0180-03 | - | Cable Assembly (50mm²), 5m |
| Cable Assembly Components (60mm²) | |||
| 12.2 | SMX 0180-04 | - | Cable Assembly (60mm²), 3m |
| 12.3 | SMX 0180-05 | - | Cable Assembly (60mm²), 4m |
| 12.4 | SMX 0180-06 | - | Cable Assembly (60mm²), 5m |
| Gas & Support Components | |||
| 12.5 | SJR 7065 | - | Gas connector For MIG Torch/PAN |
| 12.6 | SPD 0821 | - | Spring Cable support |
| Rear Components | |||
| 13 | SRT 0793 | - | Back Box |
| 14 | SPD 0020 | - | Nut M4 |
| 15 | SPD 0079 | - | Screw M4×22mm |
| 16 | SRA 0755 | TET01266 | Connector 2 holes |
| 17 | SJD 9009 | TET01433 | Connector with hexagon nut 9/16-18 |
| 18 | SPD 0803 | TET01676 | Spring For gas tube |
| 19 | SUR 0668 | TFZ50107 | EPDM tube Ø5×10mm 300mm |
| Liners | |||
| 20 | SSM 0518 | 191.0001 | Black steel liner Ø1.2~1.6mm 3m |
| Tools | |||
| 21 | SMQ 6000 | - | Spanner For MIG Torches |
| 22 | SMQ 6007 | - | Spanner For PAN Torch |
DISCLAIMER
🚫 SIBIT is NOT affiliated with PANASONIC. Parts sold are SIBIT-made compatible alternatives, not genuine PANASONIC products.
- 🔧 References: PANASONIC machine, torch, and part numbers are for identification convenience only.
- 🔄 Modifications: Products subject to change or substitution without prior notice. We reserve the right to substitute genuine PANASONIC parts in place of SIBIT parts.
- ™️ Trademarks: All brand names and trademarks remain the exclusive property of their respective owners.
- ✅ Compatibility: Parts are aftermarket alternatives designed to fit original equipment. All reference codes are only for convenient research.
