MIG Torches
Sibitweld delivers an extensive portfolio of premium MIG torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial welding applications. Our precision-manufactured MIG torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding weld quality across all production requirements.
Sibitweld MIG Torch - P350
Compatible Torch and Parts for:
Panasonic 350A
MIG CONSUMABLES
| Parameter | Unit | Specification |
|---|---|---|
| Performance Specifications | ||
| Cooling Method | - | Air Cooling |
| Duty Cycle | % | 60% |
| Rated Current (CO₂) | A | 350 |
| Rated Current (Mixed Gases) | A | 300 |
| Welding Capabilities | ||
| Wire Size Range | mm | Ø0.9~Ø1.2 |
| Compatible Gas Types | - | CO₂, Mixed Gases |
| Compatibility | ||
| Compatible With | - | Panasonic 350A |
| Application Type | - | Manual / Semi-Automatic Welding |
| Available Torch Configurations | ||
| 3m Complete Torch | - | SMD 6230-36 |
| 4m Complete Torch | - | SMD 6236-36 |
| 5m Complete Torch | - | SMD 6237-36 |

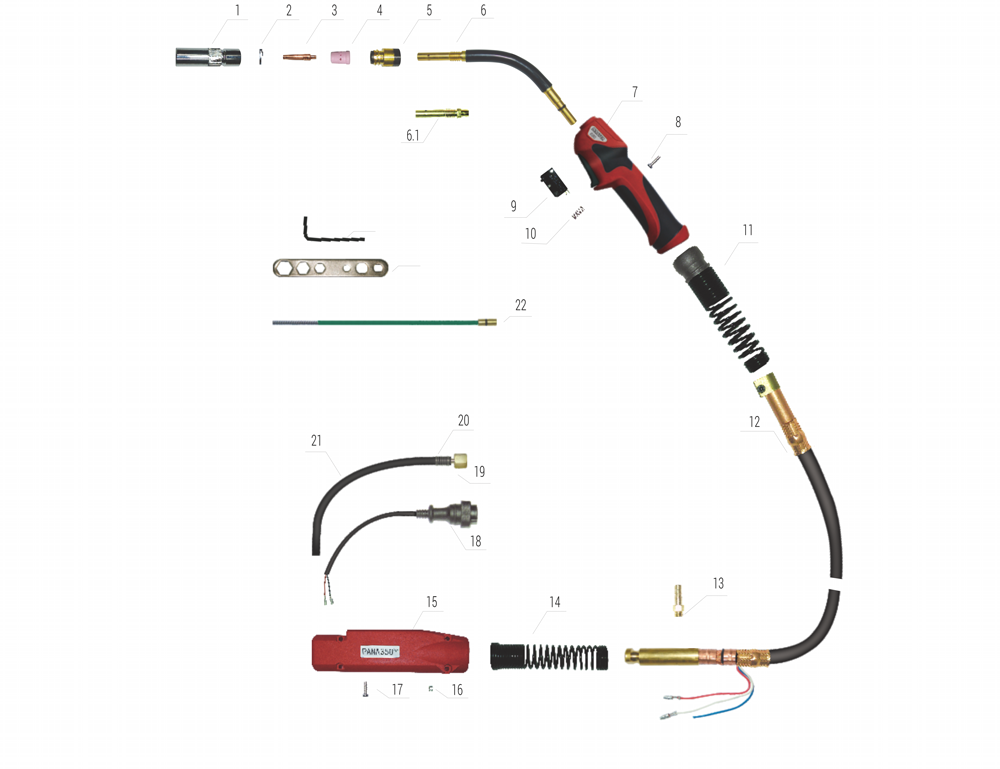

| Part No. | Product ID | Reference | Description |
|---|---|---|---|
| Nozzles | |||
| 1 | SMC 0496 | - | Nozzle Cylindrical |
| 1.1 | SMC 0496-15 | - | Nozzle Φ15mm Conical |
| 1.2 | SMC 0496-115 | - | Nozzle Φ11.5mm |
| Fasteners | |||
| 2 | SPD 0668 | - | Grower M21mm |
| Contact Tips (E-Cu) | |||
| 3 | SME 0746-08 | - | Contact Tip M6×45×Ø0.8mm, E-Cu |
| 3.1 | SME 0746-10 | - | Contact Tip M6×45×Ø1.0mm, E-Cu |
| 3.2 | SME 0746-12 | - | Contact Tip M6×45×Ø1.2mm, E-Cu |
| Contact Tips (CuCrZr) | |||
| 3.3 | SME0746-78 | - | Contact Tip M6×45×Ø0.8mm, CuCrZr |
| 3.4 | SME0746-79 | - | Contact Tip M6×45×Ø0.9mm, CuCrZr |
| 3.5 | SME0746-80 | - | Contact Tip M6×45×Ø1.0mm, CuCrZr |
| 3.6 | SME0746-82 | - | Contact Tip M6×45×Ø1.2mm, CuCrZr |
| Diffusers & Insulators | |||
| 3.7 | SMP 0976 | - | Ceramic diffuser |
| 4 | SMC 6609 | - | Insulator |
| Torch Head Components | |||
| 5 | SMJ 0749 | TGN01610 | Torch Head |
| 6 | SMP 0971 | - | Torch Head front part |
| Handle Components | |||
| 6.1 | SMF 08S0-01 | - | MIG Handle |
| 7 | SPD 0874 | - | Screw M3×10mm |
| 8 | SRA 0186 | - | Switch |
| 9 | SPD 0860 | - | Spring For Switch |
| Cable Assembly Components | |||
| 10 | SJR 0864 | - | Joint with Spring |
| 11 | SMX 0188-01 | - | Cable Assembly (37mm²) |
| 12 | SJR 706S | - | Gas connector |
| 13 | SPD 0821 | - | Spring Cable support |
| Rear Components | |||
| 14 | SRT 0793 | - | Back Box |
| 15 | SPD 0020 | - | Nut M4 |
| 16 | SPD 0079 | - | Screw M4×22mm |
| 17 | SRA 07SS | TET00841 | Connector 2 holes |
| 18 | SJD 9009 | TET00930 | Connector with hexagonal nut 9/16-18 |
| 19 | SPD 0803 | TET01054 | Spring For gas tube |
| 20 | SUR 0668 | TET01266 | EPDM tube Φ5×10mm 300mm |
| Liners | |||
| 21 | SSM 0510 | - | Green steel liner Φ1.0~1.2mm 3m |
| Tools | |||
| 22 | SMQ 6000 | - | Spanner For MIG Torches |
| 23 | SMQ 6007 | - | Spanner For PAN Torch |
DISCLAIMER
🚫 SIBIT is NOT affiliated with PANASONIC. Parts sold are SIBIT-made compatible alternatives, not genuine PANASONIC products.
- 🔧 References: PANASONIC machine, torch, and part numbers are for identification convenience only.
- 🔄 Modifications: Products subject to change or substitution without prior notice. We reserve the right to substitute genuine PANASONIC parts in place of SIBIT parts.
- ™️ Trademarks: All brand names and trademarks remain the exclusive property of their respective owners.
- ✅ Compatibility: Parts are aftermarket alternatives designed to fit original equipment. All reference codes are only for convenient research.
