MIG Torches
Sibitweld delivers an extensive portfolio of premium MIG torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial welding applications. Our precision-manufactured MIG torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding weld quality across all production requirements.
Sibitweld MIG Torch - AUT 501D
Compatible Torch and Parts for:
Binzel AUT 501D
MIG CONSUMABLES
| Parameter | Unit | Specification |
|---|---|---|
| Performance Specifications | ||
| Cooling Method | - | Water Cooling |
| Duty Cycle | % | 100% |
| Rated Current (CO₂) | A | 500 |
| Rated Current (Mixed Gases) | A | 450 |
| Welding Capabilities | ||
| Wire Size Range | mm | Ø1.0~Ø1.6 |
| Compatible Gas Types | - | CO₂, Mixed Gases |
| Compatibility | ||
| Compatible With | - | Binzel AUT 501D |
| Connection Type | - | Euro Adaptor / Spring Pins |
| Application Type | - | Automation / Robotic Welding |
| Available Torch Configurations (0° Angle) | ||
| 3m Torch (0°) | - | SMR 0515 |
| 4m Torch (0°) | - | SMR 0511 |
| 5m Torch (0°) | - | SMR 0512 |
| Available Torch Configurations (45° Angle) | ||
| 3m Torch (45°) | - | SMR 0517 |
| 4m Torch (45°) | - | SMR 0518 |
| 5m Torch (45°) | - | SMR 0519 |

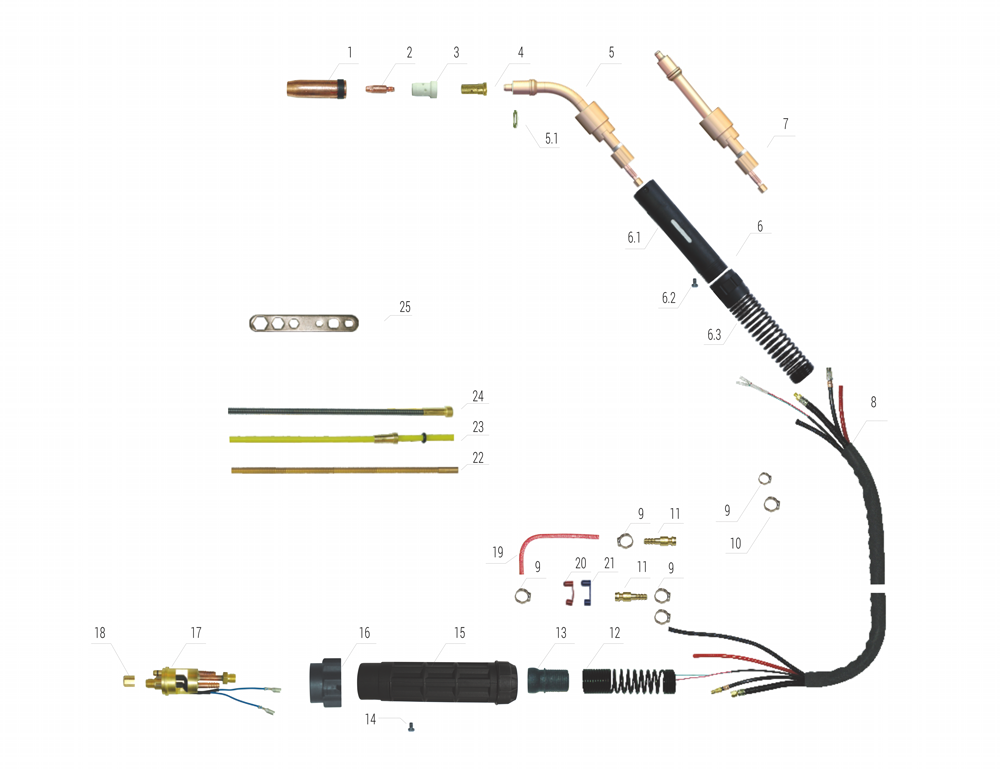

| Part No. | Product ID | Reference | Description |
|---|---|---|---|
| Gas Nozzles | |||
| 1 | SMC 0713 | 145.0085 | Conical Gas nozzle Ø16mm |
| Contact Tips | |||
| 2 | SME 0005-12 | 140.0442 | Contact tip Ø1.2mm E-Cu / M8×30mm |
| Diffusers | |||
| 3 | SMP 0524 | 030.0190 | White ceramic gas diffuser |
| Contact Tip Holders | |||
| 4 | SMP 0021 | 142.0022 | Contact tip holder M8×25mm |
| Torch Heads | |||
| 5 | SMS 0016 | - | Torch Head AUT 501D 45° |
| 5.1 | SJR 6723 | 030.0019 | Insulator |
| Handle Components | |||
| 6 | SMF 0671 | - | Handle For auto MIG Torch |
| 6.1 | SMF 0675 | - | Handle For auto MIG Torch |
| 6.2 | SPD 0069 | - | Screw M4×8 |
| 6.3 | SPD 0898 | - | Spring For Cable support |
| 7 | SMS 0017 | - | Torch Head AUT 501D 0° |
| Cable Components | |||
| 8 | SMN 0067 | - | Cable assembly 3m |
| 9 | SPD 0730 | - | Clamp Ø8.7mm |
| 10 | SPD 0722 | - | Clamp Ø9.5mm |
| 11 | SJD 8070 | - | Quick connector water Ø6mm |
| 12 | SPD 0870 | - | Spring Cable support |
| 13 | SRT 0777 | - | Joint For MIG Handle |
| 14 | SPD 0063 | - | Screw M4×6 |
| Water Cooling Components | |||
| 15 | SRT 0772 | - | Back Box For water cooled |
| 16 | SRT 0070 | - | Adaptor nut |
| 17 | SDL 0057 | 501.2156 | Euro Central Adaptor Body / Water cooling |
| 18 | SJD 0071 | 501.0082 | Nut M10×1 |
| 19 | SUR 0605 | 501.0114 | Output water tube M5×8mm 0.8m Red EPDM |
| 20 | SRT 0306 | - | Plastic Support For water cooling connector / Red |
| 21 | SRT 0308 | - | Plastic Support For water cooling connector / Blue |
| Liners | |||
| 22 | SSM 0226 | - | Brass terminal Ø3.0×4.5mm 0.35m |
| 23 | SSM 0210 | 126.0039 | Teflon liner Ø3.0×4.5mm 3m Yellow |
| 24 | SSM 0580 | 122.0056 | Steel liner Ø1.2~1.6mm 3m |
| Tools | |||
| 25 | SMQ 6000 | - | Spanner For MIG Torches |
⚠️ DISCLAIMER
🚫 SIBIT is NOT affiliated with BINZEL. Parts sold are SIBIT-made compatible alternatives, not genuine BINZEL products.
- 🔧 References: BINZEL names and numbers are for identification convenience only.
- 🔄 Modifications: Products subject to change or substitution without notice.
- ™️ Trademarks: All brand names remain property of their respective owners.
- ✅ Compatibility: Parts are aftermarket alternatives designed to fit original equipment.
