MIG Torches
Sibitweld delivers an extensive portfolio of premium MIG torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial welding applications. Our precision-manufactured MIG torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding weld quality across all production requirements.
Sibitweld MIG Torch - #5
Compatible Torch and Parts for:
Tweco #5 (Classic No. 5)
MIG CONSUMABLES
| Parameter | Unit | Specification |
|---|---|---|
| Performance Specifications | ||
| Cooling Method | - | Air Cooling |
| Duty Cycle | % | 60% |
| Rated Current (CO₂) | A | 500 |
| Rated Current (Mixed Gases) | A | 400 |
| Welding Capabilities | ||
| Wire Size Range | mm | Ø0.9~Ø2.4 |
| Compatible Gas Types | - | CO₂, Mixed Gases |
| Compatibility | ||
| Compatible With | - | Tweco #5 (Classic No. 5) |
| Application Type | - | Manual / Semi-Automatic Welding |
| Available Torch Configurations (Standard) | ||
| 3m Complete Torch | - | SMD 5500 |
| 4m Complete Torch | - | SMD 5506 |
| 4.6m Complete Torch | - | SMD 5507 |
| Available Torch Configurations (Euro Adaptor) | ||
| 3m Euro Adaptor | - | SMD 5515 |
| 4m Euro Adaptor | - | SMD 5511 |
| 4.6m Euro Adaptor | - | SMD 5512 |
| Available Torch Configurations (Miller Adaptor) | ||
| 3m Miller Adaptor | - | SMD 5513 |
| 4m Miller Adaptor | - | SMD 5514 |
| 4.6m Miller Adaptor | - | SMD 5520 |

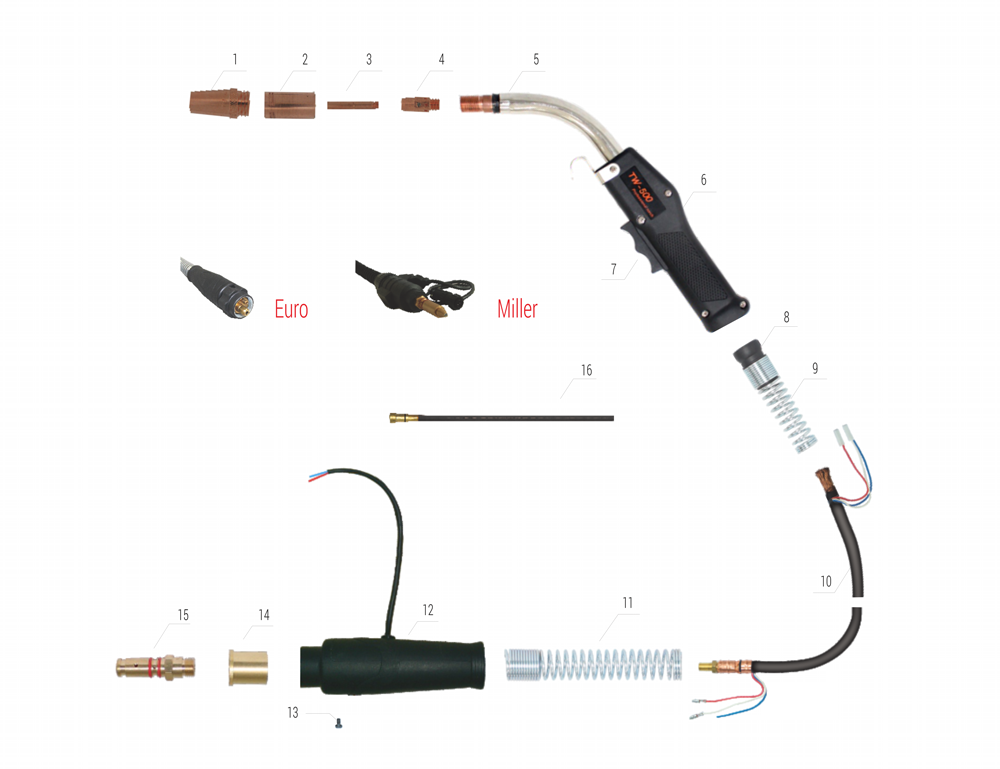

| Part No. | Product ID | Reference | Description |
|---|---|---|---|
| Gas Nozzles (Series 25CT) | |||
| 1 | SMC 0730 | 25CT-50 | Gas nozzle 1/2" (Ø12.7mm) |
| 1.1 | SMC 0736 | 25CT-75 | Gas nozzle 3/4" (Ø19mm) |
| 1.2 | SMC 0737 | 25CT-62 | Gas nozzle 5/8" (Ø16mm) |
| Insulators | |||
| 1.3 | - | - | Insulator |
| 2 | SMP 0076 | 35CT | Insulator |
| Contact Tips (Standard E-Cu) | |||
| 3 | - | - | Contact tip |
| 3.1 | SME 0060-09 | 15H35 | Contact tip Ø0.9mm E-Cu |
| 3.2 | SME 0060-12 | 15H45 | Contact tip Ø1.2mm E-Cu |
| 3.3 | SME 0060-14 | 15H52 | Contact tip Ø1.4mm E-Cu |
| 3.4 | SME 0060-16 | 15H116 | Contact tip Ø1.6mm E-Cu |
| 3.5 | SME 0060-20 | 15H564 | Contact tip Ø2.0mm E-Cu |
| 3.6 | SME 0060-24 | 15H332 | Contact tip Ø2.4mm E-Cu |
| Contact Tips (HFC Series E-Cu) | |||
| 3.7 | SME 0061-09 | 15HFC35 | Contact tip Ø0.9mm E-Cu |
| 3.8 | SME 0061-12 | 15HFC45 | Contact tip Ø1.2mm E-Cu |
| 3.9 | SME 0061-13 | 15HFC52 | Contact tip Ø1.3mm E-Cu |
| 3.10 | SME 0061-16 | 15HFC116 | Contact tip Ø1.6mm E-Cu |
| 3.11 | SME 0061-20 | 15HFC564 | Contact tip Ø2.0mm E-Cu |
| 3.12 | SME 0061-24 | 15HFC332 | Contact tip Ø2.4mm E-Cu |
| Diffusers & Conductor Tubes | |||
| 4 | - | 55 | Diffuser |
| 5 | - | 65J-60 | Conductor tube 60° |
| Handle Components | |||
| 6 | SMF 0754 | 85 | MIG Handle with Screw |
| 7 | SRA 0081 | - | Trigger |
| Cable Assembly Components | |||
| 8 | SRT 0777 | - | Kit/TW Joint For MIG Handle |
| 9 | SPD 0876-02 | - | Spring For Cable support / Zin / Long / TW |
| 10 | SMX 0794 | - | Cable Assembly (65mm²) |
| 11 | SPD 0824 | - | Spring For Cable support / Blue and white zinc Plating |
| Rear Components | |||
| 12 | SRT 0872 | - | Back Box with closing Ring |
| 13 | SPD 0063 | - | Screw M4×6 |
| Adaptors | |||
| 14 | SJR 7051 | - | Continental adapter / Miller M10×1 |
| 15 | SDY 0092 | - | Connecting adaptor / TW #1-4 |
| Liners | |||
| 16 | SSM 0009-03 | EA0018 | Steel liner 3.4m Ø0.9~1.2 / TW |
DISCLAIMER
🚫 SIBIT is NOT affiliated with TWECO. Parts sold are SIBIT-made compatible alternatives, not genuine TWECO products.
- 🔧 References: TWECO machine, torch, and part numbers are for identification convenience only.
- 🔄 Modifications: Products subject to change or substitution without prior notice. We reserve the right to substitute genuine TWECO parts in place of SIBIT parts.
- ™️ Trademarks: All brand names and trademarks remain the exclusive property of their respective owners.
- ✅ Compatibility: Parts are aftermarket alternatives designed to fit original equipment. All reference codes are only for convenient research.
