MIG Torches
Sibitweld delivers an extensive portfolio of premium MIG torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial welding applications. Our precision-manufactured MIG torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding weld quality across all production requirements.
Sibitweld MIG Torch - 40KD
Compatible Torch and Parts for:
Binzel 40KD
MIG CONSUMABLES
| Parameter | Unit | Specification |
|---|---|---|
| Performance Specifications | ||
| Cooling Method | - | Air Cooling |
| Duty Cycle | % | 60% |
| Rated Current (CO₂) | A | 380 |
| Rated Current (Mixed Gases) | A | 360 |
| Welding Capabilities | ||
| Wire Size Range | mm | Ø1.0~Ø2.4 |
| Compatible Gas Types | - | CO₂, Mixed Gases |
| Compatibility | ||
| Compatible With | - | Binzel 40KD |
| Connection Type | - | Euro Adaptor / Spring Pins |
| Available Torch Lengths | ||
| 3m Complete Torch | - | SMD 2198 (Ref: 015.0029) |
| 4m Complete Torch | - | SMD 2199 (Ref: 015.0032) |
| 5m Complete Torch | - | SMD 2195 (Ref: 015.0034) |

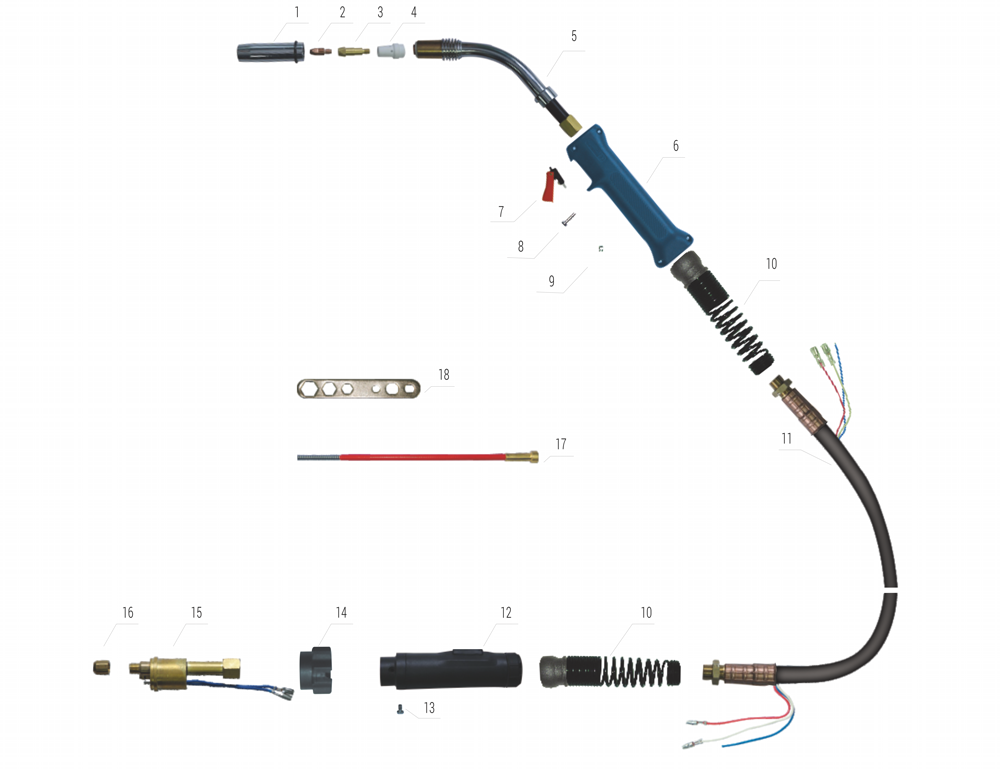

| Part No. | Product ID | Reference | Description |
|---|---|---|---|
| Gas Nozzles | |||
| 1 | - | - | Gas nozzle |
| 1.1 | SMC 0700 | 145.0079 | Conical Gas nozzle Ø18mm |
| 1.2 | SMC 0701 | 145.0046 | Cylindrical Gas nozzle Ø21mm |
| 1.3 | SMC 0702 | 145.0127 | Tapered Gas nozzle Ø14mm |
| Contact Tips - E-Cu (M8×30) | |||
| 2 | - | - | Contact Tip |
| 2.1 | SME 0005-10 | 140.0313 | Contact Tip M8×30×1.0 E-Cu |
| 2.2 | SME 0005-12 | 140.0442 | Contact Tip M8×30×1.2 E-Cu |
| 2.3 | SME 0005-16 | 140.0587 | Contact Tip M8×30×1.6 E-Cu |
| 2.4 | SME 0005-20 | 140.0653 | Contact Tip M8×30×2.0 E-Cu |
| 2.5 | SME 0005-24 | 140.0677 | Contact Tip M8×30×2.4 E-Cu |
| Contact Tips - CuCrZr (M8×30) | |||
| 2.6 | SME 0005-80 | 140.0316 | Contact Tip M8×30×1.0 CuCrZr |
| 2.7 | SME 0005-82 | 140.0445 | Contact Tip M8×30×1.2 CuCrZr |
| 2.8 | SME 0005-84 | 140.0590 | Contact Tip M8×30×1.6 CuCrZr |
| 2.9 | SME 0005-86 | 140.0679 | Contact Tip M8×30×2.0 CuCrZr |
| 3 | SME 0005-87 | 142.0025 | Contact Tip M8×30×2.4 CuCrZr |
| Torch Components | |||
| 4 | SME 0027 | - | Contact tip holder M8×43mm |
| 5 | SMP 0531 | 015.0023 | White ceramic gas diffuser |
| 6 | SMJ 0082 | 015.0001 | Torch head 40KD |
| 7 | SMF 0800 | - | 50' MIG Handle 40KD Blue |
| 8 | SRA 0070 | 185.0031 | Trigger 21.8mm |
| 9 | SPD 0078 | - | Screw M4×14 |
| 10 | SPD 0020 | - | Nut M4 UNI 5587 (Sp 4) |
| 11 | SJR 0864 | - | Joint with spring |
| 12 | SMX 0619 | - | Coaxial Cable 60mm² |
| 13 | SRT 0713 | - | Back box For Air Cooling |
| 14 | SPD 0063 | - | Screw M4×6 UNI 6107 |
| 15 | SRT 0070 | - | Gun plug nut |
| 16 | SDL 0019 | - | Euro Central Adaptor Body / 40KD / Spring pins / Adaptor nut |
| 17 | SJD 0071 | 501.0082 | Nut M10×1 |
| Liners | |||
| 18 | SSM 0590 | 124.0041 | Insulated steel liner Ø1.2~1.6mm 3m Yellow |
| Tools | |||
| 19 | SMQ 6000 | - | Spanner For MIG Torches |
⚠️ DISCLAIMER
🚫 SIBIT is NOT affiliated with BINZEL. Parts sold are SIBIT-made compatible alternatives, not genuine BINZEL products.
- 🔧 References: BINZEL names and numbers are for identification convenience only.
- 🔄 Modifications: Products subject to change or substitution without notice.
- ™️ Trademarks: All brand names remain property of their respective owners.
- ✅ Compatibility: Parts are aftermarket alternatives designed to fit original equipment.
