MIG Torches
Sibitweld delivers an extensive portfolio of premium MIG torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial welding applications. Our precision-manufactured MIG torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding weld quality across all production requirements.
Sibitweld MIG Torch - 240D
Compatible Torch and Parts for:
Binzel 240D
MIG CONSUMABLES
| Parameter | Unit | Specification |
|---|---|---|
| Performance Specifications | ||
| Cooling Method | - | Water Cooling |
| Duty Cycle | % | 100% |
| Rated Current (CO₂) | A | 300 |
| Rated Current (Mixed Gases) | A | 270 |
| Welding Capabilities | ||
| Wire Size Range | mm | Ø0.8~Ø1.2 |
| Compatible Gas Types | - | CO₂, Mixed Gases |
| Compatibility | ||
| Compatible With | - | Binzel 240D |
| Connection Type | - | Euro Adaptor / Spring Pins |
| Available Torch Lengths | ||
| 3m Complete Torch | - | SMR 2598-36 |
| 4m Complete Torch | - | SMR 2599-36 |
| 5m Complete Torch | - | SMR 2595-36 |

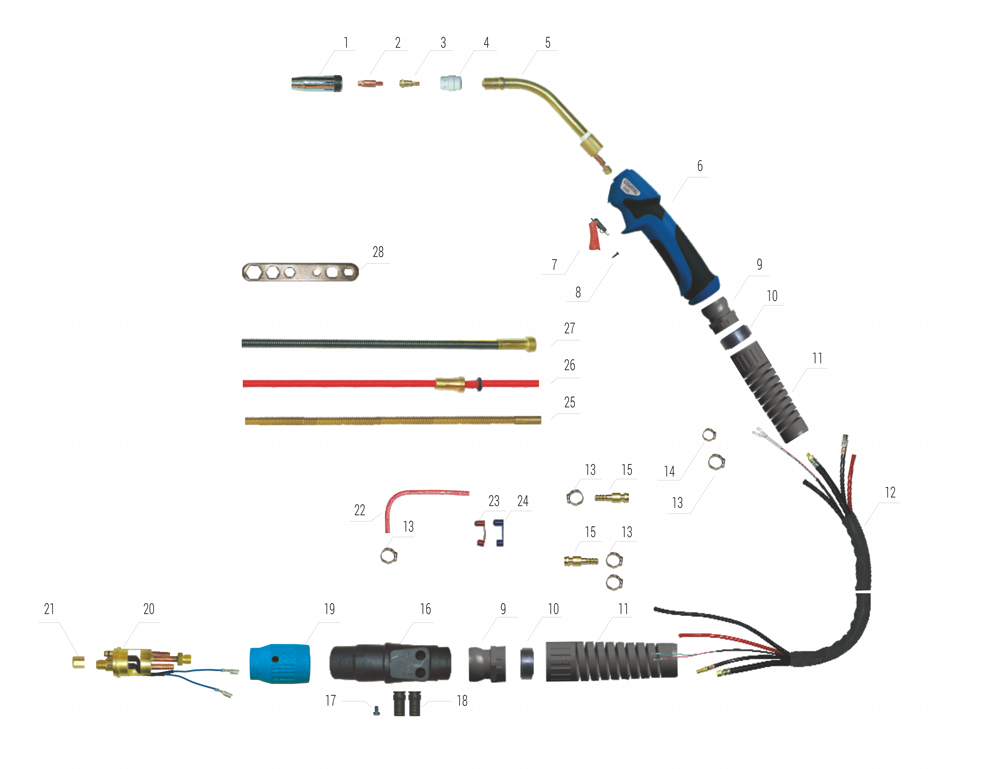

| Part No. | Product ID | Reference | Description |
|---|---|---|---|
| Gas Nozzles | |||
| 1 | - | - | Gas nozzle |
| 1.1 | SMC0800 | 145.0047 | Cylindrical Nozzle Ø17mm |
| 1.2 | SMC0806 | 145.0080 | Conical Gas nozzle Ø12.5mm |
| 1.3 | SMC0807 | 145.0128 | Tapered Gas nozzle Ø10mm |
| Contact Tips - E-Cu (M6×28) | |||
| 2 | - | - | Contact tip |
| 2.1 | SME 0004-08 | 140.0051 | Contact Tip M6×28×0.8 E-Cu |
| 2.2 | SME 0004-10 | 140.0242 | Contact Tip M6×28×1.0 E-Cu |
| 2.3 | SME 0004-12 | 140.0379 | Contact Tip M6×28×1.2 E-Cu |
| Contact Tips - CuCrZr (M6×28) | |||
| 2.4 | SME 0004-78 | 140.0054 | Contact Tip M6×28×0.8 CuCrZr |
| 2.5 | SME 0004-80 | 140.0245 | Contact Tip M6×28×1.0 CuCrZr |
| 2.6 | SME 0004-82 | 140.0382 | Contact Tip M6×28×1.2 CuCrZr |
| Torch Components | |||
| 3 | SME 0683 | 142.0003 | Contact tip holder M6×26mm |
| 4 | SMP 0539 | - | White ceramic gas diffuser |
| 5 | SMS 0091 | 023.0001 | Torch Head |
| 6 | SMF 0890-01 | - | MIG Handle Blue / Grip |
| 7 | SRA 0070 | 185.0031 | Trigger |
| 8 | SPD 0874 | - | Screw M3×10 |
| 9 | SRT 0021 | - | Joint For MIG Handle |
| 10-1 | SRT 0852 | - | Housing Ring / Big / Inside |
| 10-2 | SRT 0855 | - | Housing For Plasma Back Box / Big |
| 11 | SPD 0822 | - | Spring For Cable support |
| 12 | SMN 0067 | - | Cable assembly 3m |
| 13 | SPD 0722 | - | Clamp Ø9.5 |
| 14 | SPD 0730 | - | Clamp Ø8.7 |
| 15 | SJD 8070 | - | Quick connector water Ø6mm |
| 16 | SRT 0763 | - | Back Box For water cooled |
| 17 | SRT 0764 | - | Hose Support For water cooled rear Box |
| 18 | SPD 0063 | - | Screw M4×6 |
| 19 | SRT 0072 | - | Adaptor nut / Blue |
| 20 | SDL 0057 | 501.2156 | Euro Central Adaptor Body / Water cooling |
| 21 | SJD 0071 | 501.0082 | Liner nut |
| 22 | SUR 0605 | 501.0114 | EPDM Output water tube M5×8mm 0.8m Red |
| 23 | SRT 0306 | - | Plastic Support For water cooling connector / Red |
| 24 | SRT 0308 | - | Plastic Support For water cooling connector / Blue |
| 25 | SSM 0220 | - | Brass terminal Ø2.0×4.0mm 0.35m |
| Liners | |||
| 26 | SSM 0160 | 126.0005 | Teflon liner Ø2.0×4.0mm 3m Red |
| 27 | SSM 0571 | 122.0031 | Steel liner Ø1.0~1.2mm 3m |
| Tools | |||
| 28 | SMQ 6000 | - | Spanner For MIG Torches |
⚠️ DISCLAIMER
🚫 SIBIT is NOT affiliated with BINZEL. Parts sold are SIBIT-made compatible alternatives, not genuine BINZEL products.
- 🔧 References: BINZEL names and numbers are for identification convenience only.
- 🔄 Modifications: Products subject to change or substitution without notice.
- ™️ Trademarks: All brand names remain property of their respective owners.
- ✅ Compatibility: Parts are aftermarket alternatives designed to fit original equipment.
