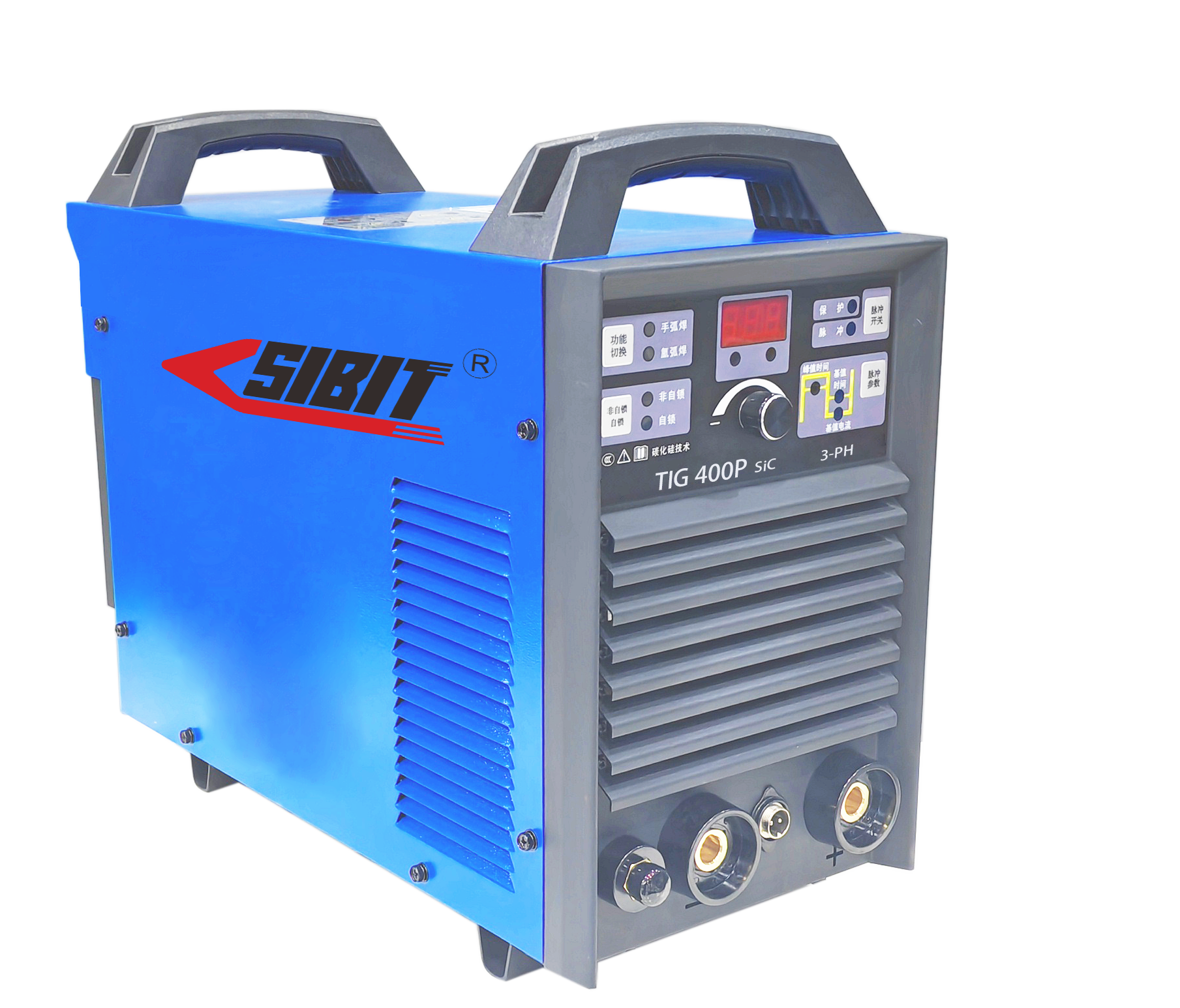

TIG 400P SiC
3-Phase DC Pulse TIG/MMA Inverter
High-performance pulse TIG welding inverter featuring advanced Silicon Carbide (SiC) technology operating at 50kHz. Delivers 100% duty cycle at 400A with independent arc control, multi-level protection systems, and superior current stability for heavy-duty industrial applications.
Silicon Carbide Technology Overview
Advanced SiC Power Electronics
Integrating next-generation Silicon Carbide semiconductor technology to deliver superior performance, enhanced efficiency, and compact power density in professional welding systems.
Engineering Excellence
Developing advanced welding systems through systematic innovation methodologies, precision engineering practices, and comprehensive technical validation protocols that exceed industry performance benchmarks.
Manufacturing Precision
Operating state-of-the-art production facilities with integrated quality management systems, advanced automation technologies, and rigorous process controls ensuring consistent product excellence.
Global Distribution Network
Delivering comprehensive equipment solutions through strategic logistics infrastructure, providing expedited international shipping, technical consultation services, and dedicated customer support worldwide.
| Parameter | Unit | Specification |
|---|---|---|
| Power Supply | ||
| Input Frequency | Hz | 50 |
| Rated Input Voltage | V | 3-Phase 380V AC ±10% |
| Input Voltage Range | V | 320 ~ 415 |
| Rated Input Capacity | kVA | 19 |
| Output Characteristics | ||
| No-Load Output Voltage | V | 70 |
| TIG Welding Current Range | A | 10 ~ 400 |
| MMA Welding Current Range | A | 0 ~ 400 |
| Performance Specifications | ||
| Duty Cycle (at 40°C) | % | 400A @ 100% |
| Efficiency (η) | % | 85 |
| Power Factor (Cosφ) | - | 0.8 |
| Pulse & Control Parameters | ||
| Start Current | A | 0 ~ 400 |
| End Current | A | 0 ~ 400 |
| Down Slope Time | s | 0 ~ 10 |
| Technology & Features | ||
| Technology | - | Silicon Carbide (SiC) Technology @ 50kHz |
| Welding Process | - | DC Pulse TIG / MMA |
| Material Compatibility | - | Carbon Steel, Low Alloy Steel, Stainless Steel, Cast Iron |
| General Features | ||
| Protection | - | Overheat, Overcurrent, Short-Circuit Protection |
| Cooling Method | - | Air Cooled |
| Enclosure/Standards/Approvals | ||
| Insulation Class | Grade | H |
| Protection Class | IP | IP23S |
| Physical Specifications | ||
| Dimensions (L×W×H) | mm | 512.5 × 220 × 398 |
| Net Weight | kg | 17 |
| Gross Weight | kg | 19.3 |
Product Overview
🔬 SILICON CARBIDE (SiC) TECHNOLOGY @ 50kHzNext-generation high-performance DC Pulse TIG welding machine featuring Silicon Carbide (SiC) technology operating at 50kHz frequency. Delivers 400A TIG / 400A MMA at 100% duty cycle with superior arc stability, reduced spatter, and extended equipment lifespan for demanding industrial applications.
🏆 SiC Technology: 400A @ 100% Duty Cycle
Advanced SiC-powered welding machine delivers 400A TIG / 400A MMA at 100% duty cycle (40°C) with 50kHz frequency—revolutionary Silicon Carbide technology enables robust output capacity, superior efficiency, and uninterrupted operation for high-intensity industrial welding and heavy-duty operations.
🎯 Designed For
High-intensity industrial operations, heavy-duty welding, precision work requiring continuous 400A output with advanced SiC efficiency and reliability.
⚡ Core Technology
Silicon Carbide (SiC) @ 50kHz, DC Pulse TIG/MMA, independent start/end current control (0-400A), 0-10s down slope time, 85% efficiency, 0.8 power factor.
🛡️ Safety First
Multi-level overheat, overcurrent, and short-circuit protection extends equipment lifespan. IP23S rating, Grade H insulation, air cooling system.
Key Features
Silicon Carbide engineering for high-performance industrial welding
🔬 SiC Technology @ 50kHz
Revolutionary Silicon Carbide components operating at 50kHz frequency deliver superior efficiency, compact design, and extended equipment lifespan.
🔄 400A TIG / 400A MMA
Robust dual-process capability: 400A DC Pulse TIG (10-400A range) and 400A MMA (0-400A range) for comprehensive heavy-duty industrial solutions.
📊 100% Duty Cycle at 400A
Continuous operation at full 400A output (40°C ambient) for uninterrupted performance in high-intensity industrial environments.
⚡ Precise Control
Independent start/end current adjustment (0-400A) with 0-10s down slope time ensures smooth welding initiation and completion.
🎯 Stable Performance
High-frequency inverter technology ensures current stability, maintaining soft arc even during power fluctuations for superior weld appearance.
🛡️ Comprehensive Protection
Multi-level temperature, overcurrent, and short-circuit protection effectively extends equipment lifespan and ensures operational safety.
⚡ 85% Efficiency
High-efficiency SiC design (η=85%, Cosφ=0.8) minimizes energy consumption and operating costs in continuous heavy-duty operations.
🔌 3-Phase AC380V ±10%
Wide input voltage range (320-415V) with strong resistance to power fluctuations ensures stable performance in diverse industrial environments.
🔩 Broad Material Compatibility
Suitable for carbon steel, low alloy steel, stainless steel, and cast iron welding in diverse heavy-duty industrial applications.
IP23S / Grade H
Industrial-grade ingress protection and high-temperature insulation for reliable performance in demanding production environments.
19kVA Input Capacity
Rated input capacity supports professional 400A TIG/MMA performance with 50Hz frequency and 70V no-load output voltage.
Air Cooled System
Efficient air cooling system maintains optimal operating temperature during continuous 100% duty cycle operation at 400A.
Compact Design
512.5×220×398mm, 17kg—SiC technology enables compact footprint without compromising 400A robust output capacity.
Reduced Spatter
High-frequency inverter technology reduces spatter for superior weld appearance and reduced post-weld cleanup in production environments.
User-Friendly Interface
Intuitive controls for easy setup and operation with independent adjustment of start/end current and slope time parameters.
Extended Lifespan
Multi-level protection features and SiC technology effectively extend equipment lifespan for long-term reliability in industrial operations.
Applications
SiC technology for high-intensity industrial welding operations
🏭 High-Intensity Industrial Operations
400A @ 100% duty cycle with SiC efficiency for continuous high-intensity fabrication on carbon steel, stainless steel, and cast iron.
🔧 Heavy-Duty Welding
Robust 400A output capacity with stable performance for heavy-duty welding applications requiring uninterrupted operation and superior weld quality.
⚙️ Precision Work
Independent start/end current control and down slope time adjustment for precision welding with smooth initiation and completion.
🤖 Demanding Production Environments
Multi-level protection and extended equipment lifespan ensure reliable operation in high-volume production with minimal downtime.
Silicon Carbide (SiC) Technology Advantages
Revolutionary semiconductor technology for next-generation welding
🔬 50kHz Operating Frequency
SiC components enable 50kHz switching frequency—10x higher than conventional IGBT technology for superior performance and efficiency.
📐 Compact Footprint
Higher frequency operation enables smaller transformer and component sizes, maintaining compact 512.5×220×398mm dimensions at 400A output.
⚡ Superior Efficiency
SiC semiconductors exhibit lower switching losses and higher thermal conductivity, achieving 85% efficiency with reduced energy consumption.
🌡️ Enhanced Thermal Performance
SiC's superior thermal properties enable operation at higher temperatures with improved reliability and extended component lifespan.
🔋 Reduced Power Losses
Lower conduction and switching losses translate to reduced heat generation, improved efficiency, and lower operating costs at 400A output.
🚀 Future-Proof Technology
Advanced SiC-powered welding machine represents the future of high-performance welding with proven advantages over conventional IGBT systems.
💡 Technical Note: Silicon Carbide (SiC) technology operates at 50kHz frequency—significantly higher than conventional IGBT inverters (5-10kHz). This enables compact, efficient designs with superior thermal performance and extended equipment lifespan, representing a fundamental advancement in high-performance welding power source technology.
Summary
The TIG 400P SiC represents next-generation high-performance welding technology featuring Silicon Carbide components operating at 50kHz frequency. Delivers 400A TIG / 400A MMA at 100% duty cycle (40°C) with robust output capacity for high-intensity operations. Precise control with independent start/end current adjustment (0-400A) and 0-10s down slope time ensures smooth welding initiation and completion. Stable performance with high-frequency inverter technology maintains soft arc even during power fluctuations, reducing spatter for superior weld appearance. 85% efficiency (Cosφ=0.8) with 19kVA input capacity. 3-Phase AC380V ±10% (320-415V range) with strong voltage fluctuation resistance. Multi-level overheat, overcurrent, and short-circuit protection extends equipment lifespan. IP23S rating, Grade H insulation, air cooling system. Compact 512.5×220×398mm dimensions, 17kg net weight. Compatible with carbon steel, low alloy steel, stainless steel, and cast iron. Ideal for high-intensity industrial operations, heavy-duty welding, precision work, and demanding production environments requiring continuous 400A operation with revolutionary SiC efficiency and reliability.
🏆 SiC Technology: 400A @ 100% Duty Cycle
Advanced SiC-powered welding machine delivers 400A TIG / 400A MMA at 100% duty cycle with 50kHz frequency—revolutionary Silicon Carbide technology enables robust output capacity, superior efficiency, reduced spatter, and extended equipment lifespan for high-intensity industrial welding and heavy-duty operations.
