Plasma Cutting Torches
Sibitweld delivers an extensive portfolio of premium plasma cutting torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial cutting applications. Our precision-manufactured plasma cutting torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding cut quality across all production requirements.
PLASMA TORCH - ST81/STM81
With High-Frequency Technology
Compatible Torch and Parts for:
TRAFIMET AUTOCUT P81 / ERGOCUT A 81
(Old A 80)
Plasma Torch ST81/STM81 - Technical Specifications
Current Rating
80A
Duty Cycle
60%
Plasma Gas
Air
Gas Pressure
4.5-5.0 Bar
Gas Flow
160 LPM
Ignition Type
HF (High Frequency)
Post Flow
80 Sec (Rec.)
Standard Length
6m (20ft)
| Part No. | Reference | Description | Cable Length | Connection |
|---|---|---|---|---|
| SVD 6900 | PA1400 | Plasma Cutting Torch ST81 | 6m (20ft) | 3/8G |
| SVD 6901 | PA1402 | Plasma Cutting Torch ST81 | 6m (20ft) | M14×1 |
| SVD 6905 | PA1404 | Plasma Cutting Torch ST81 | 6m (20ft) | M16×1.5 |
| SVD 6907 | — | Plasma Cutting Torch ST81 | 6m (20ft) | Central Adaptor |
| SVD 6909 | — | Plasma Cutting Torch ST81 | 6m (20ft) | 1/4G |
| Part No. | Description | Cable Length | Connection |
|---|---|---|---|
| SVD 0630 | Plasma Cutting Auto Torch STM81 | 6m (20ft) | 3/8G |
| SVD 0636 | Plasma Cutting Auto Torch ST81 | 6m (20ft) | Central Adaptor |
| SVD 0706 | Plasma Cutting Auto Torch STM81 | 6m (20ft) | 1/4G |
| SVD 0707 | Plasma Cutting Auto Torch STM81 | 6m (20ft) | M16×1.5 |
| SVD 0708 | Plasma Cutting Auto Torch STM81 | 6m (20ft) | M14×1 |

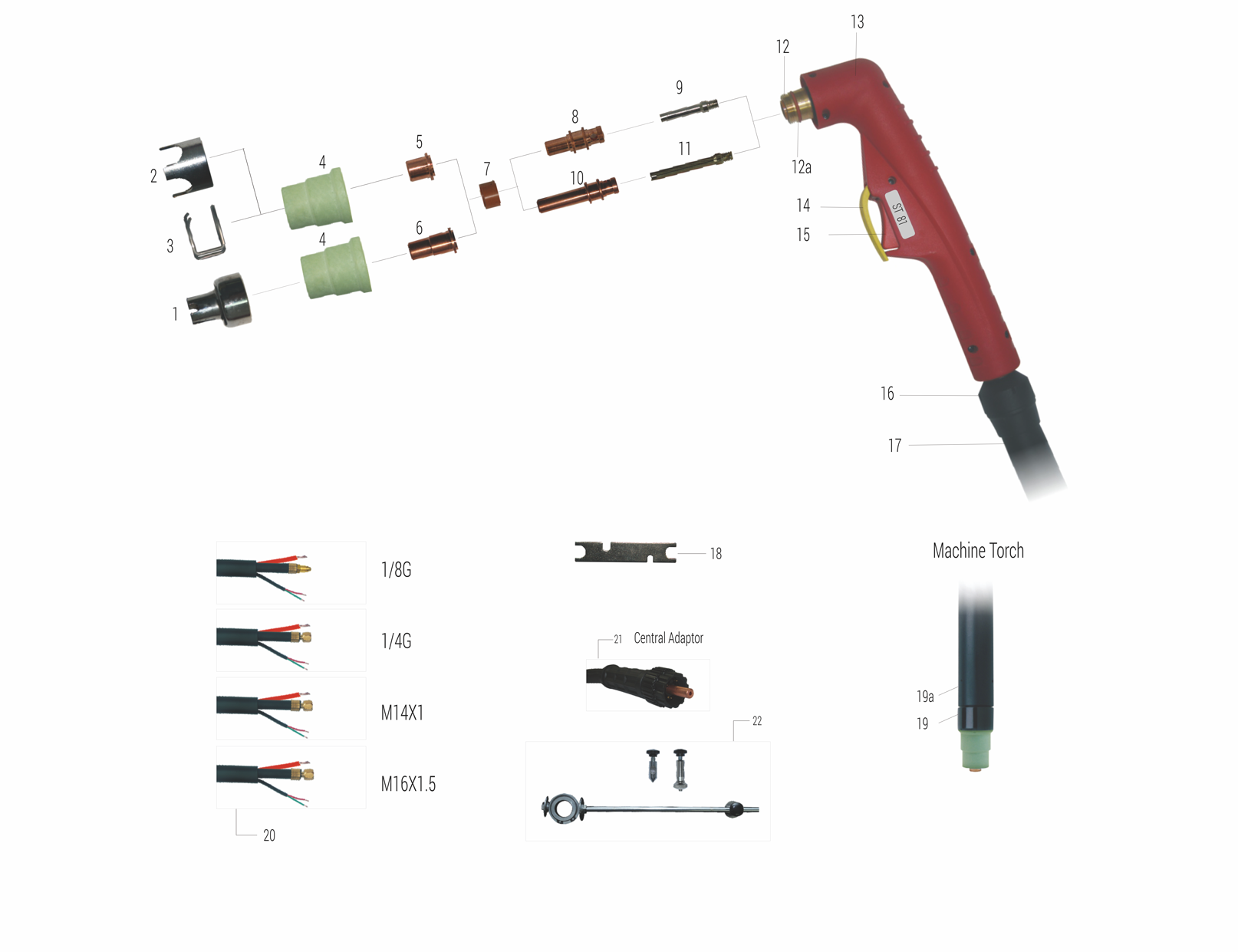

| No. | Part No. | Reference | Description |
|---|---|---|---|
| Spacers | |||
| 1 | SCW 0706 | CV0201 | Spacer for Contact Cutting / ST81 |
| 2 | SCW 0088 | CV0033 | Four Pointed Spacer / ST81 |
| 3 | SCW 0073 | CV0028 | Spacer Spring ST81 |
| Outside Nozzles | |||
| 4 | SFC 0665-03 | PC0115 | Outside Nozzle |
| 4.1 | SFC 0665-01 | — | Outside Nozzle ST81 |
| 4.2 | SFC 0605-10 | — | Outside Nozzle / Max Life ST81 |
| Standard Tips | |||
| 5 | SFC 0605-11 | PD0105-10 | Tip |
| 5.1 | SFC 0605-12 | PD0105-11 | Tip Ø1.0mm / ST81 |
| 5.2 | SFE 0601-10 | PD0105-12 | Tip Ø1.1mm / ST81 |
| 5.3 | SFE 0601-11 | PD0106-10 | Tip Ø1.2mm / ST81 |
| Extended Tips | |||
| 6 | SFP 0602 | PD0106-12 | Tip |
| 6.1 | SFL 0604 | PE0107 | Extended Tip Ø1.0mm / ST81 |
| 6.2 | SFL 0665 | — | Extended Tip Ø1.2mm / ST81 |
| Diffuser & Electrodes | |||
| 7 | SJX 0510 | PR0109 | Diffuser ST81 |
| 8 | SJX 0516 | PR0115 | Electrode Plasma ST81 |
| 9 | SFJ 0690 | FH0560 | Air Tube - ST81 |
| 10 | SPD 0675 | FH0561 | Extended Electrode Plasma ST81 |
| 11 | SQF 0035 | EA0125 | Extended Air Tube / ST81 |
| Torch Heads & Handles | |||
| 12 | SRT 0722 | 185.0031 | Plasma Torch Head / ST81 |
| 12a | SRA 0070 | PF0120 | O-Ring Ø15.6×1.78mm Silicon |
| 13 | SRT 0893 | W0300144 | Plasma Handle Manual / A Series / Red |
| 14 | SFX 00108066-00 | — | Protection Part / Plasma / Yellow |
| 15 | SFX 00108060-00 | — | Trigger Joint / Small / New Type |
| Cable Assemblies - ST81 (Hand Torch) | |||
| 16 | SFX 10108066-00 | — | Cable Assembly |
| 17 | SFX 10108060-00 | — | Cable Assembly / ST81 / 8mm² / 6m ATT.1/8G |
| 17.1 | SFX 0689 | — | Cable Assembly / ST81 / 8mm² / 6m ATT. Central Adaptor |
| Cable Assemblies - STM81 (Machine Torch) | |||
| 17.2 | SMQ 6006 | — | Cable Assembly / STM81 / 8mm² / 6m ATT. 1/8G |
| 17.3 | SFJ 0670 | — | Cable Assembly / STM81 / 6mm² / 6m Central Adaptor |
| 17.4 | SQF 0018 | — | Cable Assembly / ST81 / 6m Central Adaptor |
| 17.5 | SJD 5687 | — | Spanner for Plasma |
| Machine Torch Components | |||
| 18 | SJD 5686 | — | Plasma Torch Head STM81 |
| 19 | SJD 5688 | — | Fiber Glass Position Tube / LTM |
| 19a | SJD 5689 | — | Cable Assembly LTM |
| Adaptors & Accessories | |||
| 20 | SJH 0078 | — | Connecting Adaptor 1/8G - 1/4G |
| 20.1 | SCW 0056 | — | Connecting Adaptor 1/8G - 3/8G |
| 20.2 | — | — | Connecting Adaptor 1/8G - M14×1 |
| 20.3 | — | — | Connecting Adaptor 1/8G - M16×1.5 |
| 20.4 | — | — | Central Adaptor Torch Side Plasma 5 Pins |
| 21 | — | FY0023 | Wheel Spacer A81 / S75 |
| 22 | — | CV0052 | Circle Cutting Attachment |
DISCLAIMER
⚠️ The parts shown on this page are not genuine brand name parts. They are interchangeable aftermarket parts made to fit the original equipment.
- 🔄 Modifications: Articles stated on this page are subject to modifications or substitution without prior notice.
- ™️ Trademarks: All brand names and trademarks included on this page are registered trademarks of their proper owners and remain the exclusive property of the respective owners.
- ✅ Compatibility: Parts shown are interchangeable parts made to fit the original equipment.
- 🔧 Reference Codes: All reference codes are provided for convenient research purposes only.
