Plasma Cutting Torches
Sibitweld delivers an extensive portfolio of premium plasma cutting torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial cutting applications. Our precision-manufactured plasma cutting torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding cut quality across all production requirements.
PLASMA TORCH - ST70/STM70
With High-Frequency Technology
Compatible Torch and Parts for Cebora P70
Plasma Torch ST70/STM70 - Technical Specifications
Current Rating
70A
Duty Cycle
60%
Plasma Gas
Air
Gas Pressure
4.5-5.0 Bar
Gas Flow
130 LPM
Ignition Type
HF (High Frequency)
Post Flow
70 Sec (Rec.)
Standard Length
6m (20ft)
| Part No. | Reference | Description | Cable Length | Connection |
|---|---|---|---|---|
| SVD 6870 | 1564 | Plasma Cutting Torch ST70 | 6m (20ft) | 1/8G |
| SVD 6876 | 1573 | Plasma Cutting Torch ST70 | 6m (20ft) | 1/4G |
| SVD 6879 | — | Plasma Cutting Torch ST70 | 6m (20ft) | M14×1 |
| SVD 6875 | — | Plasma Cutting Torch ST70 | 6m (20ft) | M16×1.5 |
| SVD 6877 | — | Plasma Cutting Torch ST70 | 6m (20ft) | Central Adaptor |
| Part No. | Reference | Description | Cable Length | Connection |
|---|---|---|---|---|
| SVD 6740 | 1563 | Plasma Cutting Auto Torch STM70 | 6m (20ft) | 1/8G |
| SVD 6742 | 1566 | Plasma Cutting Auto Torch STM70 | 6m (20ft) | 1/4G |
| SVD 6743 | — | Plasma Cutting Auto Torch STM70 | 6m (20ft) | M14×1 |
| SVD 6744 | — | Plasma Cutting Auto Torch STM70 | 6m (20ft) | M16×1.5 |
| SVD 6746 | — | Plasma Cutting Auto Torch STM70 | 6m (20ft) | Central Adaptor |

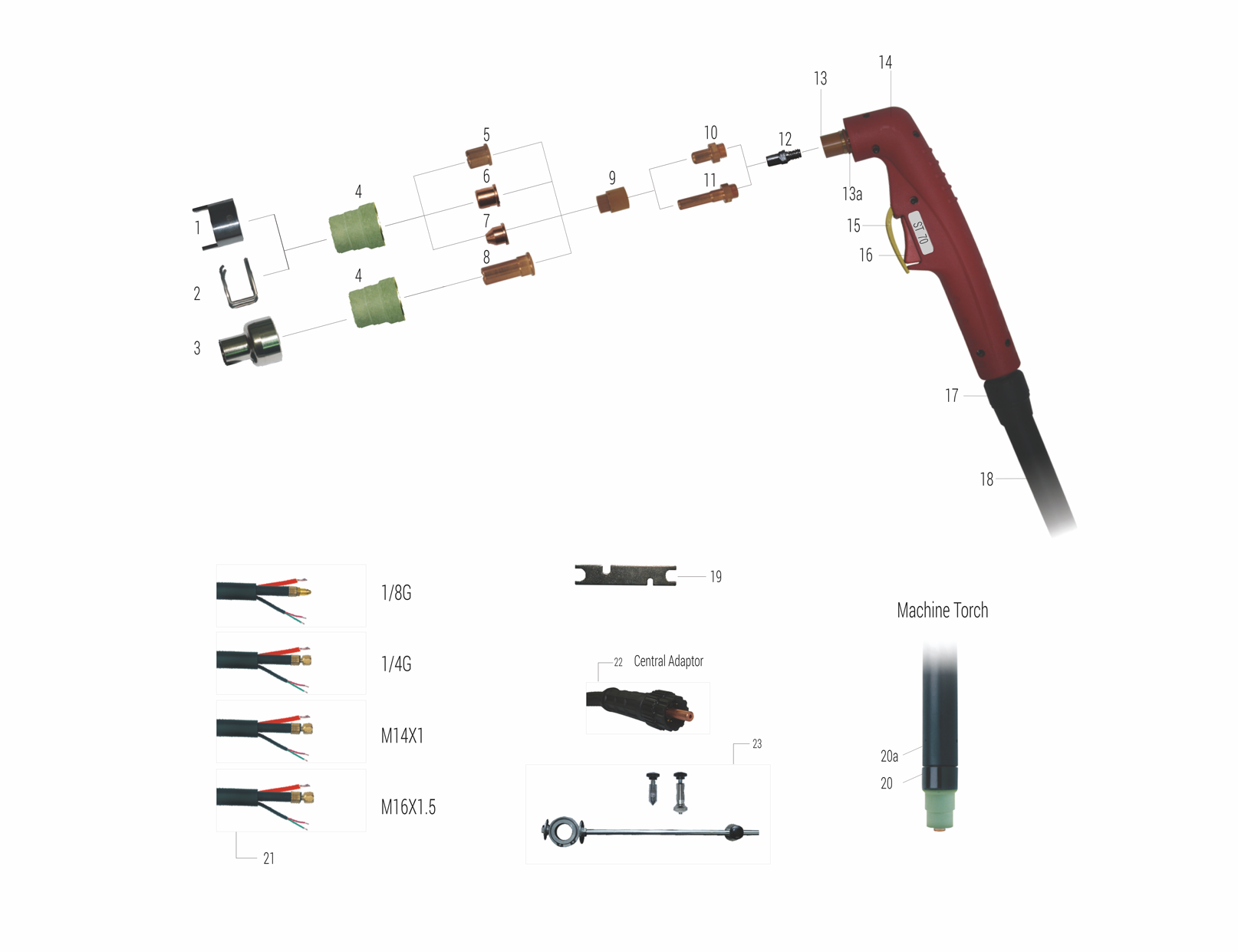

| No. | Part No. | Reference | Description |
|---|---|---|---|
| Spacers & Shield Caps | |||
| 1 | SCW 6662 | 1405 | Double Pointed Spacer / ST70 |
| 2 | SCW 0060 | 1394 | Spacer Spring / ST70 |
| 3 | SCW 0007 | 5.710.171 | Shield Cap for Extended Tip / ST70 |
| Outside Nozzles | |||
| 4 | SFC 0087-03 | 1309 | Outside Nozzle |
| 4.1 | SFC 0087-01 | — | Outside Nozzle ST70 |
| 4.2 | SFE 0065-09 | 1396 | Outside Nozzle / Max Life ST70 |
| Standard Tips | |||
| 5 | SFE 0033-10 | 1395/L | Tip |
| 5.1 | SFE 0033-11 | — | Tip Ø0.9mm / ST50-70 |
| 5.2 | SFE 0033-12 | — | Tip Ø1.0mm / ST50-70 |
| 5.3 | SFE 0028-10 | — | Tip Ø1.1mm / ST50-70 |
| 5.4 | SFE 0028-12 | — | Tip Ø1.2mm / ST50-70 |
| Flat Tips | |||
| 6 | SFE 0064-10 | 1305 | Tip Flat |
| 6.1 | SFE 0064-12 | — | Flat Tip Ø1.0mm / ST50-70 |
| 6.2 | SFE 0035-98 | — | Flat Tip Ø1.2mm / ST50-70 |
| Conical Tips | |||
| 7 | SFE 0018-10 | 1366 | Tip Conical |
| 7.1 | SFE 0018-11 | — | Conical Tip Ø1.0mm / ST50-70 |
| 7.2 | SFE 0018-12 | — | Conical Tip Ø1.2mm / ST50-70 |
| Extended Tips | |||
| 8 | SFP 0002 | 1395 | Tip Extended |
| 8.1 | SFL 0018 | — | Extended Tip Ø0.98mm / ST50-70 |
| 8.2 | SFL 0019 | — | Extended Tip Ø1.0mm / ST50-70 |
| 8.3 | SJX 0766 | 1402 | Extended Tip Ø1.1mm / ST50-70 |
| 8.4 | SFJ 0015 | 1368 | Extended Tip Ø1.2mm / ST50-70 |
| Diffuser & Electrodes | |||
| 9 | SPD 0707 | 3.065.204 | Diffuser ST50-70 |
| 10 | SQF 0039 | 1071 | Electrode HF Plasma ST70 |
| 11 | SRT 0722 | 185.0031 | Extended Electrode HF Plasma ST70 |
| 12 | SRA 0070 | 60368 | Air Tube - ST70 |
| Torch Heads & Handles | |||
| 13 | SRT 0893 | 1349 | Plasma Torch Head ST70 |
| 13a | SFX 00006066-00 | — | O-Ring Ø12.42×1.78mm Silicon Red |
| 14 | SFX 00006066-00 | — | Plasma Handle Manual / CB50-70 / Red |
| 15 | SFX 10006066-00 | — | Protection Part / Plasma / Yellow |
| 16 | SFX 10006066-00 | — | Trigger Joint / Small / New Type |
| Cable Assemblies - ST70 (Hand Torch) | |||
| 17 | SFX 0628 | — | Cable Assembly |
| 18 | SMQ 6006 | — | Cable Assembly / ST50-70 / 6mm² / 6m ATT.1/8G |
| 18.1 | SFJ 0073 | — | Cable Assembly / ST50-70 / 6mm² / 6m ATT. Central Adaptor |
| Cable Assemblies - STM70 (Machine Torch) | |||
| 18.2 | SQF 0013 | — | Cable Assembly / STM50-70 / 6mm² / 6m ATT. Central Adaptor |
| 18.3 | SJD 5687 | — | Cable Assembly / STM50-70 / 6mm² / 6m ATT.1/8G |
| 18.4 | SJD 5688 | — | Cable Assembly ST50-70 / 6m Central Adaptor |
| 18.5 | SJD 5689 | — | Spanner for Plasma |
| Machine Torch Components | |||
| 19 | SJH 0078 | — | Plasma Torch Head STM70 |
| 20 | SCW 0029 | — | Fiber Glass Position Tube / LTM |
| 20a | — | — | Cable Assembly LTM |
| Adaptors & Accessories | |||
| 21 | — | — | Connecting Adaptor 1/8G - 1/4G |
| 21.1 | — | — | Connecting Adaptor 1/8G - M14×1 |
| 21.2 | — | — | Connecting Adaptor 1/8G - M16×1.5 |
| 21.3 | — | — | Central Adaptor Torch Side Plasma 5 Pins |
| 22 | — | — | Circle Cutting Attachment / ST50 |
DISCLAIMER
⚠️ The parts shown on this page are not genuine brand name parts. They are interchangeable aftermarket parts made to fit the original equipment.
- 🔄 Modifications: Articles stated on this page are subject to modifications or substitution without prior notice.
- ™️ Trademarks: All brand names and trademarks included on this page are registered trademarks of their proper owners and remain the exclusive property of the respective owners.
- ✅ Compatibility: Parts shown are interchangeable parts made to fit the original equipment.
- 🔧 Reference Codes: All reference codes are provided for convenient research purposes only.
