Plasma Cutting Torches

Plasma Cutting Torches

Sibitweld delivers an extensive portfolio of premium plasma cutting torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial cutting applications. Our precision-manufactured plasma cutting torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding cut quality across all production requirements.

PLASMA TORCH - ST141/STM141

Colorful abstract illustration with geometric shapes and patterns, including circles, squares, and lines in green, black, red, blue, and purple.
Compatible Torch and Parts for Trafimet AUTOCUT P141 / ERGOCUT A141 with High-Frequency Technology
High-Frequency Technology

Compatible Torch and Parts for:

Trafimet AUTOCUT P141 / ERGOCUT A141
(Old A140)

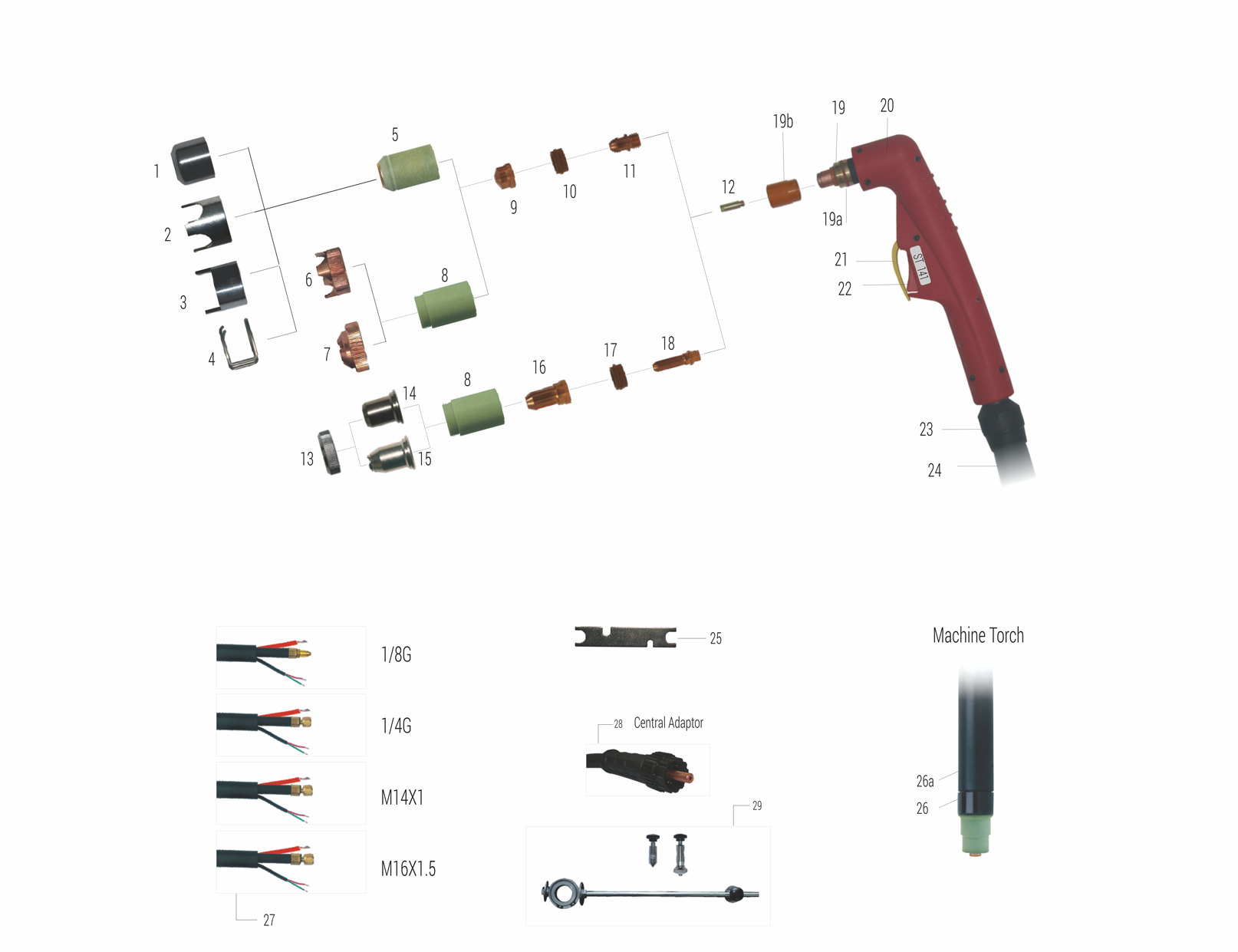

ST 141 PLASMA CUTTING TORCH
Plasma Torch ST141/STM141 - Complete Catalog

Plasma Torch ST141/STM141 - Technical Specifications

Current Rating
140A
Duty Cycle
60%
Plasma Gas
Air
Gas Pressure
4.5-5.0 Bar
Gas Flow
220 LPM
Ignition Type
HF (High Frequency)
Post Flow
140 Sec (Rec.)
Standard Length
6m / 12m
Hand Torch - ST141 (Manual Cutting)
Part No. Reference Description Cable Length Connection
SVD 6507 PA1502 Plasma Cutting Torch ST141 6m (20ft) 1/4G
SVD 6501 PA1500 Plasma Cutting Torch ST141 6m (20ft) 3/8G
SVD 6500 PA1504 Plasma Cutting Torch ST141 6m (20ft) M14×1
SVD 6504 PA1501 Plasma Cutting Torch ST141 6m (20ft) M16×1.5
SVD 6509 PA1505 Plasma Cutting Torch ST141 6m (20ft) Central Adaptor
SVD 6508 — Plasma Cutting Torch ST141 12m (40ft) 1/4G
SVD 6502 — Plasma Cutting Torch ST141 12m (40ft) 3/8G
SVD 6506 — Plasma Cutting Torch ST141 12m (40ft) M14×1
SVD 6560 — Plasma Cutting Torch ST141 12m (40ft) M16×1.5
SVD 6505 — Plasma Cutting Torch ST141 12m (40ft) Central Adaptor
Machine Torch - STM141 (Automated Cutting)
Part No. Reference Description Cable Length Connection
SVD 0603 PA0103 Plasma Cutting Auto Torch STM141 6m (20ft) 1/4G
SVD 0605 PA0145 Plasma Cutting Auto Torch STM141 6m (20ft) 3/8G
SVD 0608 PA0104 Plasma Cutting Auto Torch STM141 6m (20ft) M14×1
SVD 0695 PA0146 Plasma Cutting Auto Torch STM141 6m (20ft) M16×1.5
SVD 0697 — Plasma Cutting Auto Torch STM141 6m (20ft) Central Adaptor
SVD 0601 — Plasma Cutting Auto Torch STM141 12m (40ft) 1/4G
SVD 0604 — Plasma Cutting Auto Torch STM141 12m (40ft) 3/8G
SVD 0609 — Plasma Cutting Auto Torch STM141 12m (40ft) M14×1
SVD 0698 — Plasma Cutting Auto Torch STM141 12m (40ft) M16×1.5
SVD 0691 — Plasma Cutting Auto Torch STM141 12m (40ft) Central Adaptor
Consumables & Spare Parts - ST141/STM141
No. Part No. Reference Description
Spacers
1 SCW0068 CV0013 Gouging Spacer / ST141-150
2 SCW0069 CV0014 Four Pointed Spacer / ST100-150
3 SCW0067 CV0012 Double Pointed Spacer / ST100-150
4 SCW0066 CV0011 Spacer Spring ST100-150
Outside Nozzles & Shields
5 SFC0607 PC0102 Outside Nozzle ST141
6 SCW0084 CV0039 Four Point Crown Shield With Insulator / ST101-141
7 SCW0078 CV0023 Spacer for Contact Cutting / ST101-141
8 SFC0686 PC0131 Outside Nozzle ST141-151
Standard Tips
9 SFE0606-11 PD0101-11 Tip
9.1 SFE0606-14 PD0101-14 Tip Ø1.1mm / ST101-141
9.2 SFE0606-17 PD0101-17 Tip Ø1.4mm / ST101-141
9.3 SFE0606-19 PD0101-19 Tip Ø1.7mm / ST101-141
9.4 SFP0606 PE0101 Tip Ø1.9mm / ST101-141
Diffuser & Electrodes
10 SFL0606 PR0101 Diffuser ST101-141
11 SJX0768 — Electrode Plasma ST101-141
12 SCW0099 CV0008 Air Tube / ST141-151
Contact Cutting Components
13 SCW0003 CV0009 Locking Nut Contact Cutting Attachment / ST100-151
14 SCW0004 — Long Contact Cutting Attachment / ST100-151
Extended Tips
15 SFE0662-14 PD0117-14 Tip
16 SFE0662-17 PD0117-17 Extended Tip Ø1.4mm ST101-151
16.1 SFE0662-19 PD0117-19 Extended Tip Ø1.7mm ST101-151
16.2 SFE0666 — Extended Tip Ø1.9mm ST101-151
16.3 SFP0608 PD0111 Extended Tip 50A / ST101-151
16.4 SFL0661 PE0103 Diffuser ST151
Extended Electrodes & Torch Heads
17 SFJ0655 — Extended Electrode Plasma ST101
18 SPD0686 EA0131 Plasma Torch Head ST141
19 SFP9007 — O-Ring Ø18.77×1.78mm Silicon
19a SQF0035 185.0031 Front Insulator / ST141-151
Handles & Protection
19b SRT0722 — Plasma Handle Manual / A Series / Red
20 SRA0070 W0300144 Protection Part / Plasma / Yellow
21 SRT0894 — Trigger Joint / Big / New Type
Cable Assemblies - ST141 (Hand Torch)
22 SFX00316060-00 — Cable Assembly / ST141-151 / 16mm² / 6m Central Adaptor
23 SFX00316066-00 — Cable Assembly / ST141-151 / 16mm² / 6m ATT.1/8G
Cable Assemblies - STM141 (Machine Torch)
24 SFX10316060-00 — Cable Assembly / STM141-151 / 16mm² / 6m Central Adaptor
24.1 SFX10316066-00 — Cable Assembly / STM141-151 / 16mm² / 6m ATT.1/8G
24.2 SFX0699 — Cable Assembly ST141-151 6m Central Adaptor
24.3 SMQ6006 — Spanner for Plasma
Machine Torch Components
24.4 SFJ0607 — Plasma Torch Head STM141
24.5 SQF0013 — Fiber Glass Position Tube / STM
25 SJD5687 — Cable Assembly STM
Adaptors & Accessories
26 SJD5686 — Connecting Adaptor 1/8G - 1/4G
26a SJD5688 — Connecting Adaptor 1/8G - 3/8G
27 SJD5689 — Connecting Adaptor 1/8G - M14×1
27.1 SJH0078 — Connecting Adaptor 1/8G - M16×1.5
27.2 SCW0077 — Central Adaptor Torch Side Plasma 5 Pins
27.3 — FY0023 Circle Cutting Attachment / ST100-151
27.4 — CV0022 Wheel Spacer
Disclaimer - SIBIT

DISCLAIMER

⚠️ The parts shown on this page are not genuine brand name parts. They are interchangeable aftermarket parts made to fit the original equipment.

  • 🔄 Modifications: Articles stated on this page are subject to modifications or substitution without prior notice.
  • ™️ Trademarks: All brand names and trademarks included on this page are registered trademarks of their proper owners and remain the exclusive property of the respective owners.
  • ✅ Compatibility: Parts shown are interchangeable parts made to fit the original equipment.
  • 🔧 Reference Codes: All reference codes are provided for convenient research purposes only.
