Plasma Cutting Torches
Sibitweld delivers an extensive portfolio of premium plasma cutting torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial cutting applications. Our precision-manufactured plasma cutting torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding cut quality across all production requirements.
PLASMA TORCH - ST100/STM100
High-Frequency Technology
Compatible Torch and Parts for:
Cebora PLASMA CB 100
Plasma Torch ST100/STM100 - Technical Specifications
Current Rating
100A
Duty Cycle
60%
Plasma Gas
Air
Gas Pressure
4.5-5.0 Bar
Gas Flow
180 LPM
Ignition Type
HF (High Frequency)
Post Flow
100 Sec (Rec.)
Standard Length
6m (20ft)
| Part No. | Reference | Description | Cable Length | Connection |
|---|---|---|---|---|
| SVD 6850 | 01251STR | Plasma Cutting Torch ST100 | 6m (20ft) | 1/8G |
| SVD 6856 | — | Plasma Cutting Torch ST100 | 6m (20ft) | 1/4G |
| SVD 6858 | — | Plasma Cutting Torch ST100 | 6m (20ft) | M14×1 |
| SVD 6859 | — | Plasma Cutting Torch ST100 | 6m (20ft) | M16×1.5 |
| SVD 6957 | — | Plasma Cutting Torch ST100 | 6m (20ft) | Central Adaptor |
| Part No. | Reference | Description | Cable Length | Connection |
|---|---|---|---|---|
| SVD 6761 | W0400034 | Plasma Cutting Auto Torch STM100 | 6m (20ft) | 1/8G |
| SVD 6762 | 1452 | Plasma Cutting Auto Torch STM100 | 6m (20ft) | M14×1 |
| SVD 6763 | — | Plasma Cutting Auto Torch STM100 | 6m (20ft) | M16×1.5 |
| SVD 6765 | — | Plasma Cutting Auto Torch ST100 | 6m (20ft) | Central Adaptor |
| SVD 6766 | — | Plasma Cutting Auto Torch STM100 | 6m (20ft) | 1/4G |

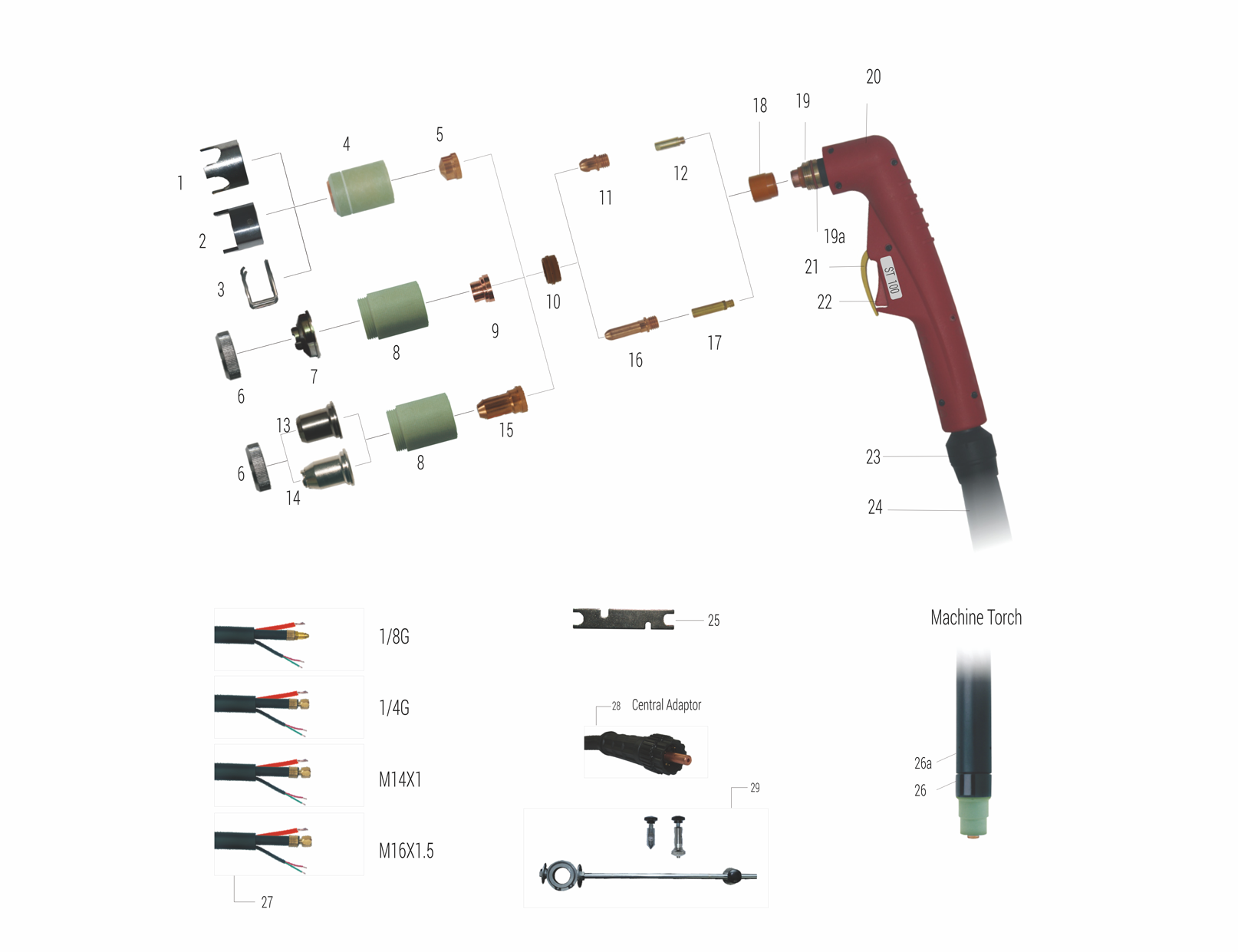

| No. | Part No. | Reference | Description |
|---|---|---|---|
| Spacers | |||
| 1 | SCW 0069 | W0300177 | Four Pointed Spacer / ST100-141 |
| 2 | SCW 0067 | 1408 / W0300131 | Double Pointed Spacer / ST100-141 |
| 3 | SCW 0066 | W0300130 | Spacer Spring ST100-151 |
| Outside Nozzles | |||
| 4 | SFC 0082 | 1386 / W0300130 | Outside Nozzle ST100 |
| Standard Tips | |||
| 5 | SFE 0071-11 | 1371 / W0300184 | Tip |
| 5.1 | SFE 0071-13 | 1372 / W0300174 | Tip Ø1.1mm / ST100-150 |
| 5.2 | SFE 0071-16 | 1373 / W0300175 | Tip Ø1.3mm / ST100-150 |
| 5.3 | SCW 0099 | W0300184 | Tip Ø1.6mm / ST100-150 |
| Contact Cutting Components | |||
| 6 | SCW 0083 | W0300180 | Locking Nut Spacer for Contact Cutting / ST100-150 |
| 7 | SFC 0083 | W0300138 | Contact Nozzle Retaining Cap / ST100 |
| Flat Tips | |||
| 8 | SFE 0073-13 | W0300135 | Tip Flat |
| 9 | SFE 0073-16 | W0300175 | Flat Tip Ø1.35mm ST100-150 |
| 9.1 | SFP 0004 | — | Flat Tip Ø1.6mm ST100-150 |
| Diffuser & Electrodes | |||
| 9.2 | SFL 0089 | 1377 / W0300124 | Diffuser ST100-150 |
| 10 | SJX 0769 | 1376 / W0300123 | Electrode HF ST100-150 |
| 11 | SCW 0003 | W0300122 | Air Tube / ST100 |
| Hand Torch Components (Max 50A) | |||
| 12 | SCW 0004 | W0300182 | Shield Cap Hand Tip (Max 50A) / ST100-151 |
| 13 | SFE 0075-13 | W0300183 | Spacer For Contact Cutting Hand Tip / ST100-151 |
| Extended Tips | |||
| 14 | SFE 0075-16 | W0300178 | Tip |
| 15 | SFE 0075-18 | W0300179 | Extended Tip Ø1.35mm ST100-150 |
| 15.1 | SFE 0080-11 | 1369 / W0300134 | Extended Tip Ø1.6mm ST100-150 |
| 15.2 | SFL 0095 | — | Extended Tip Ø1.8mm ST100-150 |
| 15.3 | SJX 0762 | 1517 / W0300133 | Contact Extended Tip 50A / ST100-150 |
| 15.4 | SFP 9006 | — | Extended Electrode HF Plasma ST100-150 |
| Air Tubes & Insulators | |||
| 16 | SFJ 0025 | 1398 / W0300121 | Extended Air Tube / ST100 |
| 17 | SPD 0689 | — | Front Insulator / ST100-101 |
| Torch Heads & Handles | |||
| 18 | SQF 0035 | 185.0031 | Plasma Torch Head ST100 |
| 19 | SRT 0722 | W0300143 | O-Ring ST100 |
| 19a | SRA 0070 | — | Plasma Handle Manual / A Series / Red |
| 20 | SRT 0894 | W0300144 | Protection Part / Plasma / Yellow |
| 21 | SFX 00210066-00 | — | Trigger Joint / Small / New Type |
| Cable Assemblies - ST100 (Hand Torch) | |||
| 22 | SFX 00210060-00 | — | Cable Assembly |
| 23 | SFX 10210066-00 | — | Cable Assembly / ST100-101 / 10mm² / 6m ATT.1/8G |
| 24 | SFX 10210060-00 | — | Cable Assembly / ST100-101 / 10mm² / 6m ATT. Central Adaptor |
| Cable Assemblies - STM100 (Machine Torch) | |||
| 24.1 | SFX 0631 | — | Cable Assembly / STM100-101 / 10mm² / 6m ATT.1/8G |
| 24.2 | SMQ 6006 | — | Cable Assembly / STM100-101 / 10mm² / 6m ATT. Central Adaptor |
| 24.3 | SFJ 0082 | — | Cable Assembly / ST100-101 / 6m Central Adaptor |
| 24.4 | SQF 0013 | — | Spanner for Plasma |
| Machine Torch Components | |||
| 24.5 | SJD 5687 | — | Plasma Torch Head STM100 |
| 25 | SJD 5688 | — | Fiber Glass Position Tube / STM |
| 26 | SJD 5689 | — | Cable Assembly STM |
| Adaptors & Accessories | |||
| 26a | SJH 0078 | — | Connecting Adaptor 1/8G - 1/4G |
| 27 | SCW 0077 | — | Connecting Adaptor 1/8G - M14×1 |
| 27.1 | — | — | Connecting Adaptor 1/8G - M16×1.5 |
| 27.2 | — | — | Central Adaptor Torch Side Plasma 5 Pins |
| 27.3 | — | 169 | Circle Cutting Attachment / ST100-151 |
DISCLAIMER
⚠️ The parts shown on this page are not genuine brand name parts. They are interchangeable aftermarket parts made to fit the original equipment.
- 🔄 Modifications: Articles stated on this page are subject to modifications or substitution without prior notice.
- ™️ Trademarks: All brand names and trademarks included on this page are registered trademarks of their proper owners and remain the exclusive property of the respective owners.
- ✅ Compatibility: Parts shown are interchangeable parts made to fit the original equipment.
- 🔧 Reference Codes: All reference codes are provided for convenient research purposes only.
