Plasma Cutting Torches
Sibitweld delivers an extensive portfolio of premium plasma cutting torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial cutting applications. Our precision-manufactured plasma cutting torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding cut quality across all production requirements.
PLASMA TORCH - SPT80/SPTM80
Without High-Frequency Technology
Compatible Torch and Parts for:
PT™ TORCH #: PT80H™ / PT80M™
Plasma Torch SPT80/SPTM80 - Technical Specifications
Current Rating
80A
Duty Cycle
60%
Plasma Gas
Air / N₂
Gas Pressure
4.5-5.0 Bar
Gas Flow
110 LPM
Ignition Type
Without HF
Post Flow
80 Sec (Rec.)
Standard Length
6m (20ft)
| Part No. | Reference | Description | Type | Cable Length |
|---|---|---|---|---|
| Type A - 1/4G Connection (6m & 12m) | ||||
| SVD 0916 | — | Plasma Torch SPT80 / 6m 1/4G / Back Striking | Type A | 6m (20ft) |
| SVD 0911 | — | Plasma Torch SPT80 / 12m 1/4G / Back Striking | Type A | 12m (39ft) |
| Type B - Central Adaptor (6m & 12m) | ||||
| SVD 0917 | — | Plasma Torch SPT80 / 6m / Central Adaptor / Back Striking | Type B | 6m (20ft) |
| SVD 0912 | — | Plasma Torch SPT80 / 12m / Central Adaptor / Back Striking | Type B | 12m (39ft) |
| Part No. | Reference | Description | Type | Cable Length |
|---|---|---|---|---|
| Type A - 1/4G Connection (6m & 12m) | ||||
| SVD 0926 | — | Plasma Auto Torch SPTM80 / 6m 1/4G / Back Striking | Type A | 6m (20ft) |
| SVD 0921 | — | Plasma Auto Torch SPTM80 / 12m 1/4G / Back Striking | Type A | 12m (39ft) |
| Type B - Central Adaptor (6m & 12m) | ||||
| SVD 0927 | — | Plasma Auto Torch SPTM80 / 6m Central Adaptor / Back Striking | Type B | 6m (20ft) |
| SVD 0922 | — | Plasma Auto Torch SPTM80 / 12m Central Adaptor / Back Striking | Type B | 12m (39ft) |

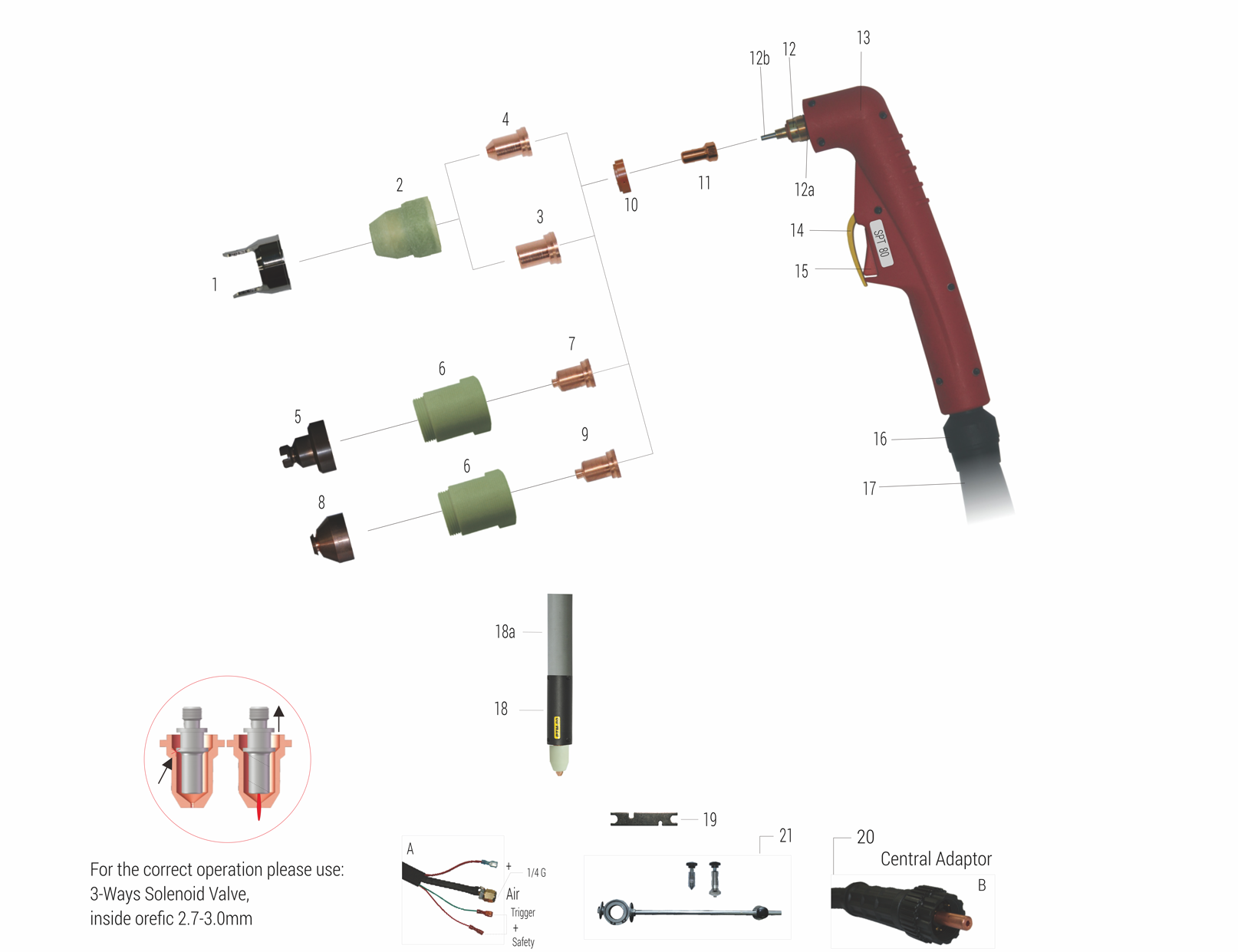

| No. | Part No. | Reference | Description |
|---|---|---|---|
| Spacers | |||
| 1 | SCW 0089 | FY0023 | Double Pointed Spacer / SPT80 |
| Outside Nozzles - SPT80 | |||
| 2 | SFC 0667 | 185.0031 | Outside Nozzle SPT80 |
| 2.1 | SFC 0667-01 | 51853 | Outside Nozzle / Maximum Life SPT80 |
| Tips - Back Striking (30-80A) | |||
| 3 | SFE 0671-09 | 51310.09 | Tip Ø0.9mm / 30-40A / Back Striking |
| 4 | SFE 0670-10 | 51311.10 | Tip |
| 4.1 | SFE 0670-11 | 51311.11 | Tip Ø1.0mm / 40-50A / Back Striking |
| 4.2 | SFE 0670-12 | 51311.12 | Tip Ø1.1mm / 50-60A / Back Striking |
| 4.3 | SFE 0670-13 | 51311.13 | Tip Ø1.2mm / 60-70A / Back Striking |
| 4.4 | — | — | Tip Ø1.3mm / 70-80A / Back Striking |
| Shield Caps - Hand Torch | |||
| 5 | SCW 0700 | 60508 | Shield Cap Hand, 40-70A |
| Outside Nozzles - Contact Cut | |||
| 6 | SFC 0672 | — | Outside Nozzle SPT80 / Contact Cut |
| Tips - Contact Cut (40-80A) | |||
| 7 | SFE 0679-10 | 51311S.10 | Tip |
| 7.1 | SFE 0679-11 | 51311S.11 | Tip Ø1.0mm / 40-50A / Back Striking |
| 7.2 | SFE 0679-12 | 51311S.12 | Tip Ø1.1mm / 50-60A / Back Striking |
| 7.3 | SFE 0679-13 | 51311S.13 | Tip Ø1.2mm / 60-70A / Back Striking |
| 7.4 | — | — | Tip Ø1.3mm / 70-80A / Back Striking |
| Shield Caps & Tips - Gouging | |||
| 8 | SCW 0064 | — | Shield Cap, Gouging |
| 9 | SFE 0675-16 | 51311G.16 | Tip Gouging / 80A / Back Striking |
| Diffusers | |||
| 10 | SFP 0665 | 52558 | Diffuser SPT80 |
| Electrodes | |||
| 11 | SFL 0669 | 9800 | Electrode Plasma SPT80 / Back Striking |
| Torch Heads - Hand Torch SPT80 | |||
| 12 | SFJ 0674 | 51620.6 | Plasma Torch Head SPT80 |
| 12a | SPD 0709 | 9800.42 | "O" Ring Ø18×Ø15mm |
| 12b | SJX 0773 | — | Air Tube / SPT80 |
| Handles & Protection - Hand Torch | |||
| 13 | SQF 0031 | — | Plasma Handle Manual / SPT80-100 / Red |
| 14 | SRT 0722 | — | Protection Part / Plasma / Yellow |
| Trigger & Joints | |||
| 15 | SRA 0070 | — | Trigger |
| 16 | SRT 0893 | — | Joint / Small / New Type |
| Cable Assemblies - SPT80-120 (10mm²) | |||
| 17 | SFX 01210060-00 | — | Cable Assembly / SPT80-SPT120 / 10mm² / 6m / Two Control Wires / Central Adaptor |
| 17.1 | SFX 01210063-00 | — | Cable Assembly / SPT80-SPT120 / 10mm² / 6m / Two Control Wires / 1PC |
| 17.2 | SFX 01210120-00 | — | Cable Assembly / SPT80-SPT120 / 10mm² / 12m / Two Control Wires / Central Adaptor |
| 17.3 | SFX 01210123-00 | — | Cable Assembly / SPT80-SPT120 / 10mm² / 12m / Two Control Wires / 1PC |
| Machine Torch Head - SPTM80 | |||
| 17.4 | SFJ 0683 | — | Plasma Torch Auto Head SPTM80 |
| 18 | SQF 0017 | — | Fiberglass Position Tube / SPTM80-120 |
| Accessories | |||
| 18a | SMQ 6006 | — | Spanner For Plasma |
| 19 | SJH 0078 | — | Central Adaptor Torch Side Plasma 5 Pins |
| 20 | SCW 0708 | — | Circle Cutting Attachment SPT80 |
DISCLAIMER
⚠️ The parts shown on this page are not genuine brand name parts. They are interchangeable aftermarket parts made to fit the original equipment.
- 🔄 Modifications: Articles stated on this page are subject to modifications or substitution without prior notice.
- ™️ Trademarks: All brand names and trademarks included on this page are registered trademarks of their proper owners and remain the exclusive property of the respective owners.
- ✅ Compatibility: Parts shown are interchangeable parts made to fit the original equipment.
- 🔧 Reference Codes: All reference codes are provided for convenient research purposes only.
