Plasma Cutting Torches
Sibitweld delivers an extensive portfolio of premium plasma cutting torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial cutting applications. Our precision-manufactured plasma cutting torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding cut quality across all production requirements.
PLASMA TORCH - SPT60
Without High-Frequency Technology
Compatible Torch and Parts for:
PT™ TORCH #: PT60H™
Plasma Torch SPT60 - Technical Specifications
Current Rating
60A
Duty Cycle
60%
Plasma Gas
Air / N₂
Gas Pressure
4.4-5.0 Bar
Gas Flow
110 LPM
Ignition Type
Without HF
Post Flow
55 Sec (Rec.)
Standard Length
6m (20ft)
| Part No. | Reference | Description | Type | Cable Length |
|---|---|---|---|---|
| Type A - 1/4G Connection | ||||
| SVD 0847 | — | Plasma Torch SPT60 / 6m 1/4G | Type A | 6m (20ft) |
| SVD 0847-01 | — | Plasma Torch SPT60 / 6m 1/4G / Back Striking | Type A | 6m (20ft) |
| Type B - 1/4G Separated | ||||
| SVD 0848 | — | Plasma Torch SPT60 / 6m 1/4G Separated | Type B | 6m (20ft) |
| SVD 0848-01 | — | Plasma Torch SPT60 / 6m 1/4G Separated / Back Striking | Type B | 6m (20ft) |
| Type C - Central Adaptor | ||||
| SVD 0846 | — | Plasma Torch SPT60 / 6m Central Adaptor | Type C | 6m (20ft) |
| SVD 0846-01 | — | Plasma Torch SPT60 / 6m Central Adaptor / Back Striking | Type C | 6m (20ft) |

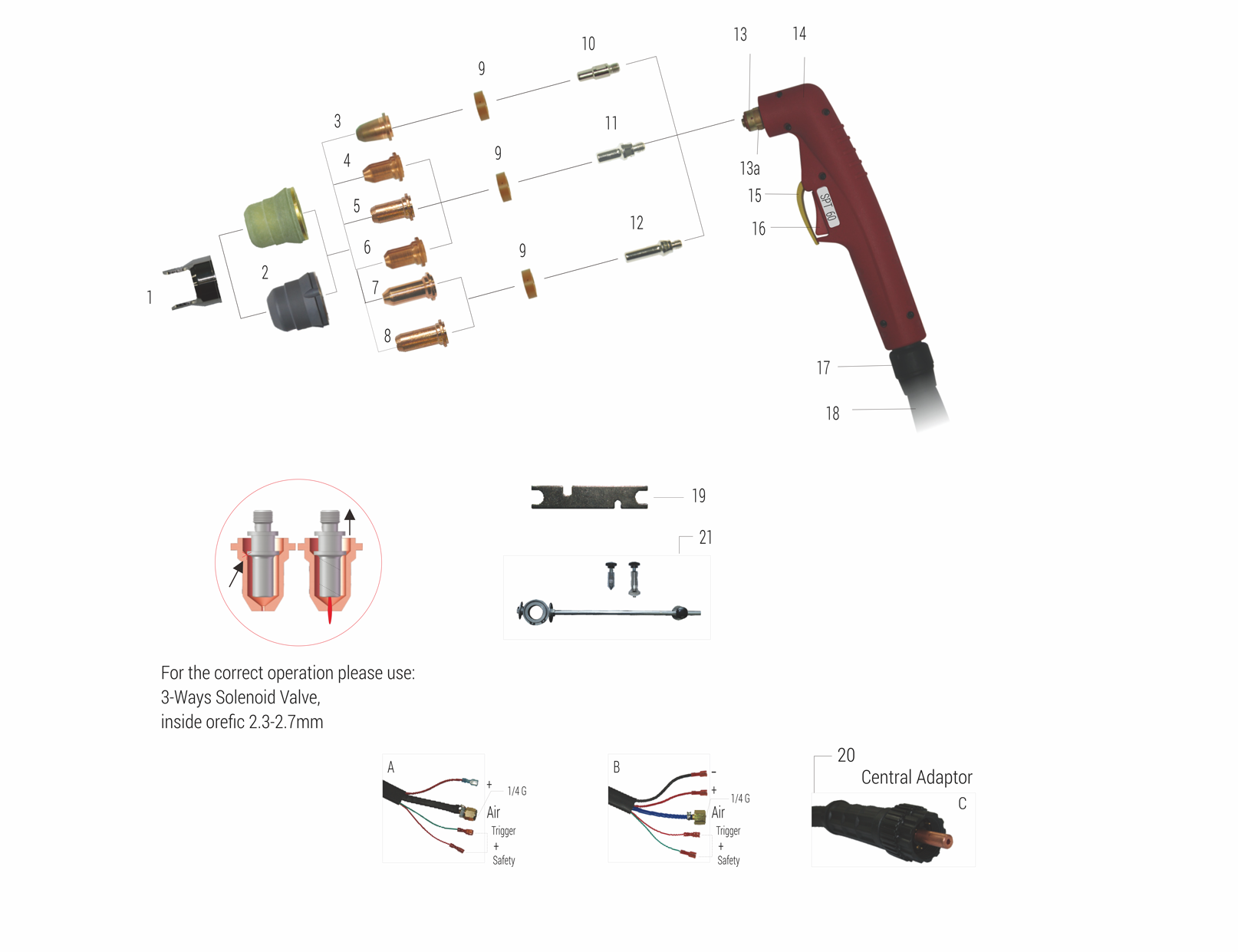

| No. | Part No. | Reference | Description |
|---|---|---|---|
| Spacers | |||
| 1 | SCW 0098 | FY0023 | Double Pointed Spacer / SPT60 |
| Outside Nozzles | |||
| 2 | SFC 0661-03 | 185.0031 | Outside Nozzle |
| 2.1 | SFC 0661-01 | — | Outside Nozzle 6 Holes PT40 / 60389 |
| 2.2 | SFE 0661-06 | — | Outside Nozzle 6 Holes PT40 / Glass Fiber |
| Tips - SPT25-60 | |||
| 3 | SFE 0661-08 | — | Tip |
| 3.1 | SFE 0661-09 | PD0116-06 | Tip Ø0.6mm / 10-20A SPT25-60 |
| 3.2 | SFE 0660-06 | PD0116-08 | Tip Ø0.8mm / 20-30A SPT25-60 |
| 3.3 | SFE 0660-08 | PD0116-09 | Tip Ø0.9mm / 30-40A SPT25-60 |
| Tips - Back Striking | |||
| 4 | SFE 0660-09 | — | Tip |
| 4.1 | SFE 0660-10 | — | Tip Ø0.6mm / 10-20A / Back Striking |
| 4.2 | SFE 0668-09 | — | Tip Ø0.8mm / 20-30A / Back Striking |
| 4.3 | SFE 0668-10 | — | Tip Ø0.9mm / 30-40A / Back Striking |
| 4.4 | SFE 0668-11 | — | Tip Ø1.0mm / 40-50A / Back Striking |
| Tips - SPT60 Special | |||
| 5 | SFE 0609-06 | — | Tip Ø0.9mm / SPT60 / Back Striking |
| Flat Tips - Back Striking | |||
| 6 | SFE 0609-08 | — | Flat Tip |
| 6.1 | SFE 0603-09 | — | Flat Tip Ø1.0mm / 40-50A / Back Striking |
| 6.2 | SFP 0601 | — | Flat Tip Ø1.1mm / 50-60A / Back Striking |
| Extended Tips - Back Striking | |||
| 7 | SFL 0660 | PC0116 | Extended Tip |
| 7.1 | SFL 0048 | — | Extended Tip Ø0.6mm / 10-20A / Back Striking |
| 7.2 | SFL 0049 | — | Extended Tip Ø0.8mm / 20-30A / Back Striking |
| Diffusers | |||
| 8 | SFJ 0673 | PE0106 | Diffuser SPT25-60 |
| Electrodes - SPT25-60 | |||
| 9 | SPD 0709 | — | Electrode Plasma SPT25-60 |
| 10 | SQF 0038 | — | Electrode Plasma SPT25-60 Back Striking |
| 11 | SRT 0722 | PR0110 | Extended Electrode Plasma SPT25-60 Back Striking |
| Torch Heads & Handles | |||
| 12 | SRA 0070 | — | Plasma Torch Head SPT60 |
| 13 | SRT 0898 | — | "O" Ring Ø15×Ø18mm |
| 13a | SFX 01106060-00 | — | Plasma Handle Manual / SPT20-60 / Red |
| Protection & Trigger | |||
| 14 | SFX 01106063-00 | — | Protection Part / Plasma / Yellow |
| 15 | SFX 01106066-00 | — | Trigger |
| 16 | SMQ 6006 | — | Joint / Small / New Type |
| Cable Assemblies - SPT60 (6mm²) | |||
| 17 | SJH 0078 | — | Cable Assembly / SPT60 / 6mm² / 6m / Two Control Wires / Central Adaptor |
| 18 | SCW 0707 | — | Cable Assembly / SPT60 / 6mm² / 6m / Two Control Wires / 1PC |
| 18.1 | — | — | Cable Assembly / SPT60 / 6mm² / 6m / Four Control Wires / Central Adaptor |
| Accessories | |||
| 18.2 | — | — | Spanner For Plasma |
| 18.3 | — | — | Central Adaptor Torch Side Plasma 5 Pins |
| 19 | — | — | Circle Cutting Attachment |
DISCLAIMER
⚠️ The parts shown on this page are not genuine brand name parts. They are interchangeable aftermarket parts made to fit the original equipment.
- 🔄 Modifications: Articles stated on this page are subject to modifications or substitution without prior notice.
- ™️ Trademarks: All brand names and trademarks included on this page are registered trademarks of their proper owners and remain the exclusive property of the respective owners.
- ✅ Compatibility: Parts shown are interchangeable parts made to fit the original equipment.
- 🔧 Reference Codes: All reference codes are provided for convenient research purposes only.
