Plasma Cutting Torches
Sibitweld delivers an extensive portfolio of premium plasma cutting torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial cutting applications. Our precision-manufactured plasma cutting torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding cut quality across all production requirements.
PLASMA TORCH - SPT25
Without High-Frequency Technology
Compatible Torch and Parts for:
PT™ TORCH #: PT25™
Plasma Torch SPT25 - Technical Specifications
Current Rating
25A
Duty Cycle
35%
Plasma Gas
Air / N₂
Gas Pressure
4 Bar
Gas Flow
95 LPM
Ignition Type
Without HF
Post Flow
20 Sec (Rec.)
Standard Length
4m (13ft)
| Part No. | Reference | Description | Type | Cable Length |
|---|---|---|---|---|
| Type A - SPT25C (2 & 4 Wires) | ||||
| SVD 0822 | PA0375 | Plasma Torch SPT25C / 2 Wires | Type A | 4m (13ft) |
| SVD 0822-01 | — | Plasma Torch SPT25C / 2 Wires / Back Striking | Type A | 4m (13ft) |
| SVD 0823 | — | Plasma Torch SPT25C / 4 Wires | Type B | 4m (13ft) |
| SVD 0823-01 | — | Plasma Torch SPT25C / 4 Wires / Back Striking | Type B | 4m (13ft) |
| Type A - SPT25 (2 & 4 Wires) | ||||
| SVD 0825 | — | Plasma Torch SPT25 / 2 Wires | Type A | 4m (13ft) |
| SVD 0825-01 | — | Plasma Torch SPT25 / 2 Wires / Back Striking | Type A | 4m (13ft) |
| SVD 0829 | — | Plasma Torch SPT25 / 4 Wires | Type B | 4m (13ft) |
| SVD 0829-01 | — | Plasma Torch SPT25 / 4 Wires / Back Striking | Type B | 4m (13ft) |
| Type C & D - SPT25 (1/4G & Separated) | ||||
| SVD 0827 | — | Plasma Torch SPT25 / 1/4G | Type C | 4m (13ft) |
| SVD 0827-01 | — | Plasma Torch SPT25 / 1/4G / Back Striking | Type C | 4m (13ft) |
| SVD 0826 | — | Plasma Torch SPT25 / 1/4G Separated | Type D | 4m (13ft) |
| SVD 0826-01 | — | Plasma Torch SPT25 / 1/4G Separated / Back Striking | Type D | 4m (13ft) |

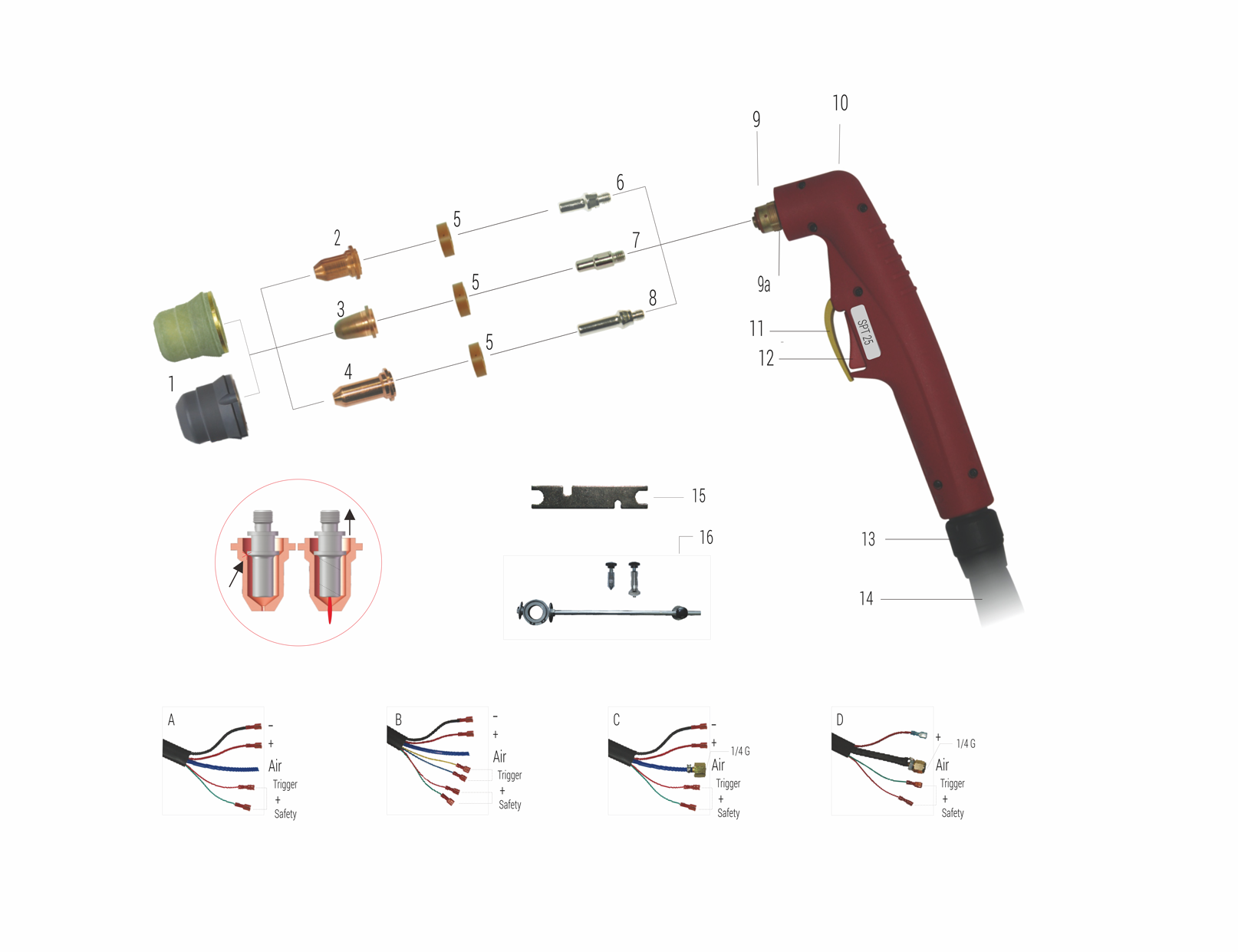

| No. | Part No. | Reference | Description |
|---|---|---|---|
| Outside Nozzles | |||
| 1 | SFC 0660-03 | — | Outside Nozzle |
| 1.1 | SFC 0660-01 | 185.0031 | Outside Nozzle 1 Hole |
| 1.2 | SFC 0662-03 | — | Outside Nozzle 1 Hole / Maximum Life |
| 1.3 | SFC 0662-01 | — | Outside Nozzle 2 Holes SPT25C / 60389K |
| 1.4 | SFE 0660-06 | — | Outside Nozzle 2 Holes Maximum Life |
| Tips - Back Striking | |||
| 2 | SFE 0660-08 | — | Tip |
| 2.1 | SFE 0661-06 | PD0116-06 | Tip Ø0.6mm / 10-20A / Back Striking |
| 2.2 | SFE 0661-08 | PD0116-08 | Tip Ø0.8mm / 20-30A / Back Striking |
| Tips - SPT25-40 | |||
| 3 | SFE 0661-09 | PD0116-09 | Tip |
| 3.1 | SFE 0609-06 | — | Tip Ø0.6mm / 10-20A SPT25-40 |
| 3.2 | SFE 0609-08 | — | Tip Ø0.8mm / 20-30A SPT25-40 |
| 3.3 | SFP 0601 | — | Tip Ø0.9mm / 30-40A SPT25-40 |
| Extended Tips - Back Striking | |||
| 4 | SFL 0048 | — | Extended Tip |
| 4.1 | SFL 0660 | PC0117 | Extended Tip Ø0.6mm / 10-20A / Back Striking |
| 4.2 | SFL 0049 | — | Extended Tip Ø0.8mm / 20-30A / Back Striking |
| Diffusers | |||
| 5 | SFJ 0671 | PE0106 | Diffuser / SPT25-60 |
| Electrodes - SPT25-60 | |||
| 6 | SPD 0709 | — | Electrode / Back Striking / SPT25-60 |
| 7 | SQF 0038 | — | Electrode / SPT25-60 |
| 8 | SRT 0722 | PR0110 | Extended Electrode / SPT25-60 / Back Striking |
| Torch Heads & Handles | |||
| 9 | SRA 0070 | — | Plasma Torch Head SPT25C |
| 9a | SRT 0898 | — | "O" Ring Ø15×Ø18mm |
| 10 | SFX 00902042-00 | — | Plasma Handle Manual / SPT20-60 / Red |
| Protection & Trigger | |||
| 11 | SFX 00902044-00 | — | Protection Part / Plasma / Yellow |
| 12 | SFX 00902043-00 | — | Trigger |
| 13 | SMQ 6006 | — | Joint / Small / New Type |
| Cable Assemblies - SPT20C-25 (2.5mm²) | |||
| 14 | SCW 0707 | — | Cable Assembly / SPT20C-25 / 2.5mm² / 4m Two Control Wires / Direct |
| 14.1 | — | — | Cable Assembly / SPT20C-25 / 2.5mm² / 4m Four Control Wires / Direct |
| 14.2 | — | — | Cable Assembly / SPT20C-25 / 2.5mm² / 4m Two Control Wires / 1PC |
| Accessories | |||
| 14.3 | — | — | Spanner For Plasma |
| 15 | — | — | Circle Cutting Attachment |
DISCLAIMER
⚠️ The parts shown on this page are not genuine brand name parts. They are interchangeable aftermarket parts made to fit the original equipment.
- 🔄 Modifications: Articles stated on this page are subject to modifications or substitution without prior notice.
- ™️ Trademarks: All brand names and trademarks included on this page are registered trademarks of their proper owners and remain the exclusive property of the respective owners.
- ✅ Compatibility: Parts shown are interchangeable parts made to fit the original equipment.
- 🔧 Reference Codes: All reference codes are provided for convenient research purposes only.
