Plasma Cutting Torches
Sibitweld delivers an extensive portfolio of premium plasma cutting torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial cutting applications. Our precision-manufactured plasma cutting torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding cut quality across all production requirements.
PLASMA TORCH - SPT120/SPTM120
Without High-Frequency Technology
Plasma Torch SPT120/SPTM120 - Technical Specifications
Current Rating
130A
Duty Cycle
60%
Plasma Gas
Air / N₂
Gas Pressure
4.6-5.0 Bar
Gas Flow
295 LPM
Ignition Type
Without HF
Post Flow
120 Sec (Rec.)
Standard Length
6m (20ft)
| Part No. | Reference | Description | Cable Length |
|---|---|---|---|
| 1/4G Connection (6m & 12m) | |||
| SVD 0565 | — | Plasma Cutting Torch SPT120 / 6m 1/4G | 6m (20ft) |
| SVD 0561 | — | Plasma Cutting Torch SPT120 / 12m 1/4G | 12m (39ft) |
| Part No. | Reference | Description | Cable Length |
|---|---|---|---|
| 1/4G Connection (6m & 12m) | |||
| SVD 0510 | — | Plasma Cutting Auto Torch SPTM120 / 6m 1/4G | 6m (20ft) |
| SVD 0576 | — | Plasma Cutting Auto Torch SPTM120 / 12m 1/4G | 12m (39ft) |

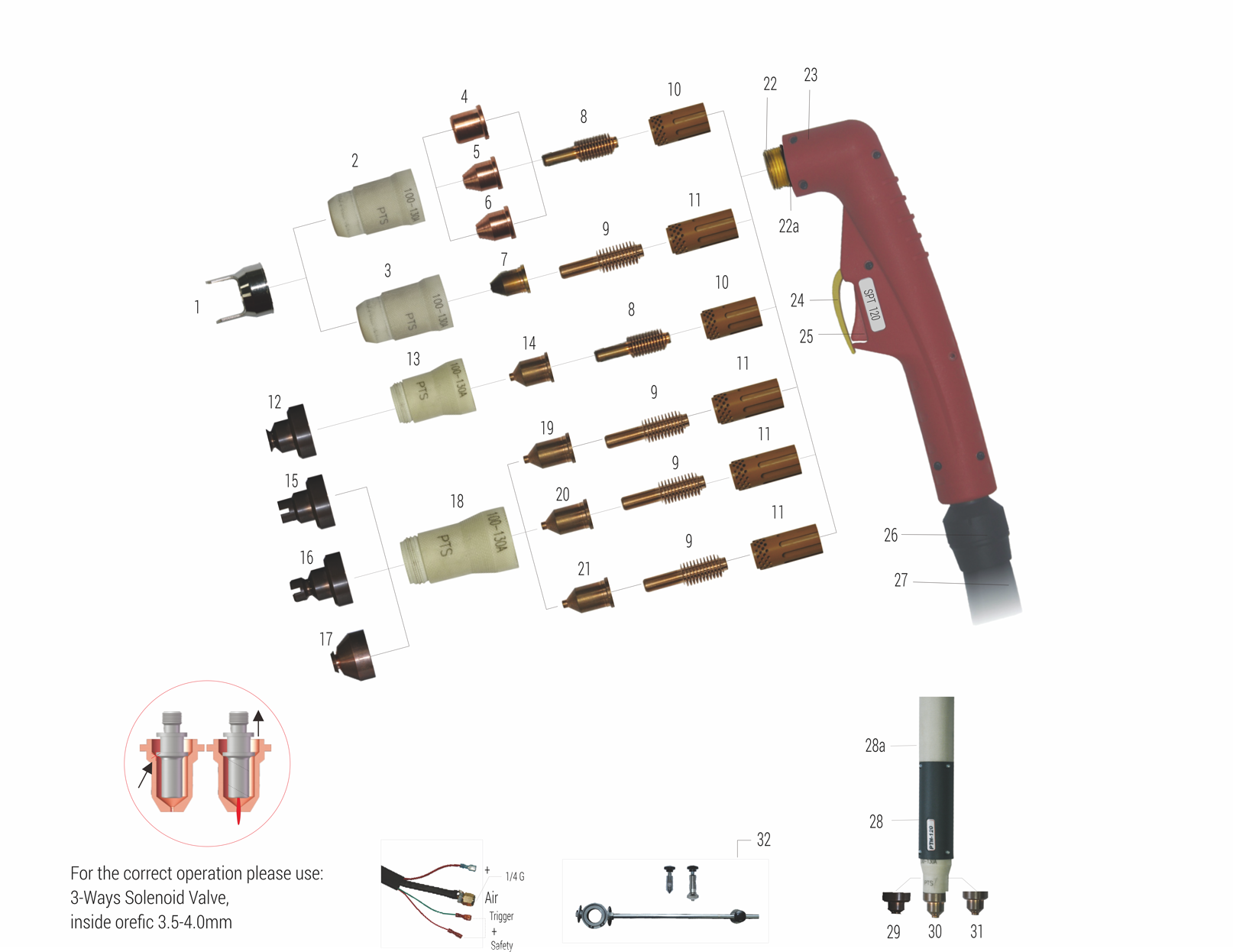

| No. | Part No. | Reference | Description |
|---|---|---|---|
| Spacers | |||
| 1 | SCW 0089 | — | Double Pointed Spacer / SPT80 |
| Retaining Caps - SPT120 | |||
| 2 | SFC 0673-01 | 120926 | Retaining, 40-80A |
| 3 | SFC 0671-01 | 220037 | Retaining, 80-130A |
| Tips - SPT120 (40-100A) | |||
| 4 | SFE 0673-10 | 120925 | Tip Ø1.0mm SPT120 |
| 5 | SFE 0042 | 220051 | Tip SPT120 / 60A |
| 6 | SFE 0043 | 120929 | Tip SPT120 / 90A |
| 7 | SFE 0044-16 | 120932 | Tip Ø1.6 / SPT120 / 100A |
| Electrodes - SPT120 | |||
| 8 | SFL 0001 | 120931 | Electrode Plasma SPT120 / 40-80A |
| 9 | SFL 0002 | 120927 | Electrode Plasma SPT120 / 100A |
| Gas Distributors & Diffusers | |||
| 10 | SFP 0005 | 220065 | Gas Distributor, 40-80A |
| 11 | SFP 0001 | 51989G | DMC Parts For Diffuser / PowerMAX 1650 |
| Shield Caps - Machine Torch | |||
| 12 | SCW 0017 | 220011 | Shield Cap (Machine) / PowerMAX 1000-1250 |
| 28 | SCW 0018 | — | Shield Cap (Machine) 40-80A |
| 29 | SCW 0024 | — | Shield Cap (Machine) 80-100A |
| 30 | SCW 0051 | — | Shield Cap (Machine) 100-130A |
| Outside Nozzles & Tips - PowerMAX 1000-1250 | |||
| 13 | SFC 0677-01 | 185.0031 | Outside Nozzle SPT120 / 40-80A |
| 14 | SFE 0009-10 | 120930 | Tip |
| 14.1 | SFE 0009-12 | 220047 | Tip Ø1.0 / PowerMAX 1000-1250 |
| 14.2 | SFE 0009-14 | — | Tip Ø1.2 / PowerMAX 1000-1250 |
| 14.3 | — | — | Tip Ø1.4 / PowerMAX 1000-1250 |
| Shield Caps - Hand Torch | |||
| 15 | SCW 0023 | — | Shield Cap (Hand) / PowerMAX 1650 |
| 16 | SCW 0039 | — | Shield Cap (Hand) 100-130A |
| 17 | SCW 0025 | — | Shield Cap, Gouging / SPT120 |
| Outside Nozzles & Tips - 100-130A | |||
| 18 | SFC 0675-01 | — | Outside Nozzle SPT120 / 100A |
| 19 | SFE 0005-15 | — | Tip 100A |
| 20 | SFE 0078-17 | — | Tip 130A |
| Gouging Tips | |||
| 21 | SFE 0688 | — | Tip Gouging Back Striking / SPT120 |
| Torch Heads - Hand Torch SPT120 | |||
| 22 | SFJ 0686 | — | SPT120 Hand Torch Head |
| 22a | SPD 0704 | — | "O" Ring Ø22×Ø19mm |
| Handles & Protection - Hand Torch | |||
| 23 | SQF 0031 | — | Plasma Handle Manual / SPT80-120 / Red |
| 24 | SRT 0722 | — | Protection Part / Plasma / Yellow |
| Trigger & Joints | |||
| 25 | SRA 0070 | — | Trigger |
| 26 | SRT 0893 | — | Joint / Small / New Type |
| Cable Assemblies - PT80-PTM120 (10mm²) | |||
| 27 | SFX 01210063-00 | — | Cable Assembly / PT80-PT120 / 10mm² / 6m / Two Control Wires / 1PC |
| 27.1 | SFX 01210123-00 | — | Cable Assembly / PTM80-PT120 / 10mm² / 12m / Two Control Wires / 1PC |
| 27.2 | SFX 11210123-00 | — | Cable Assembly / PTM80-PTM120 / 10mm² / 12m / Two Control Wires / 1PC |
| 27.3 | SFX 11210063-00 | — | Cable Assembly / PTM80-PTM120 / 10mm² / 6m / Two Control Wires / 1PC |
| Machine Torch Head - SPTM120 | |||
| 27.4 | SFJ 0687 | — | Plasma Torch Auto Head SPTM120 |
| 28a | SQF 0017 | — | Fiberglass Position Tube / SPTM80-120 |
| Accessories | |||
| 31 | SCW 0708 | — | Circle Cutting Attachment SPT120 |
DISCLAIMER
⚠️ The parts shown on this page are not genuine brand name parts. They are interchangeable aftermarket parts made to fit the original equipment.
- 🔄 Modifications: Articles stated on this page are subject to modifications or substitution without prior notice.
- ™️ Trademarks: All brand names and trademarks included on this page are registered trademarks of their proper owners and remain the exclusive property of the respective owners.
- ✅ Compatibility: Parts shown are interchangeable parts made to fit the original equipment.
- 🔧 Reference Codes: All reference codes are provided for convenient research purposes only.
