Plasma Cutting Torches
Sibitweld delivers an extensive portfolio of premium plasma cutting torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial cutting applications. Our precision-manufactured plasma cutting torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding cut quality across all production requirements.
PLASMA TORCH - SPT100/SPTM100
Without High-Frequency Technology
Compatible Torch and Parts for:
PT™ TORCH #: PT100H™ / PT100M™
Plasma Torch SPT100/SPTM100 - Technical Specifications
Current Rating
100A
Duty Cycle
60%
Plasma Gas
Air / N₂
Gas Pressure
4.6-5.0 Bar
Gas Flow
200 LPM
Ignition Type
Without HF
Post Flow
80 Sec (Rec.)
Standard Length
6m (20ft)
| Part No. | Reference | Description | Type | Cable Length |
|---|---|---|---|---|
| Type A - 1/4G Connection (6m & 12m) | ||||
| SVD 0936 | — | Plasma Torch SPT100 / 6m 1/4G / Back Striking | Type A | 6m (20ft) |
| SVD 0931 | — | Plasma Torch SPT100 / 12m 1/4G / Back Striking | Type A | 12m (39ft) |
| Type B - Central Adaptor (6m & 12m) | ||||
| SVD 0937 | — | Plasma Torch SPT100 / 6m Central Adaptor / Back Striking | Type B | 6m (20ft) |
| SVD 0932 | — | Plasma Torch SPT100 / 12m Central Adaptor / Back Striking | Type B | 12m (39ft) |
| Part No. | Reference | Description | Type | Cable Length |
|---|---|---|---|---|
| Type A - 1/4G Connection (6m & 12m) | ||||
| SVD 0946 | — | Plasma Auto Torch SPTM100 / 6m 1/4G / Back Striking | Type A | 6m (20ft) |
| SVD 0941 | — | Plasma Auto Torch SPTM100 / 12m 1/4G / Back Striking | Type A | 12m (39ft) |
| Type B - Central Adaptor (6m & 12m) | ||||
| SVD 0947 | — | Plasma Auto Torch SPTM100 / 6m Central Adaptor / Back Striking | Type B | 6m (20ft) |
| SVD 0942 | — | Plasma Auto Torch SPTM100 / 12m Central Adaptor / Back Striking | Type B | 12m (39ft) |

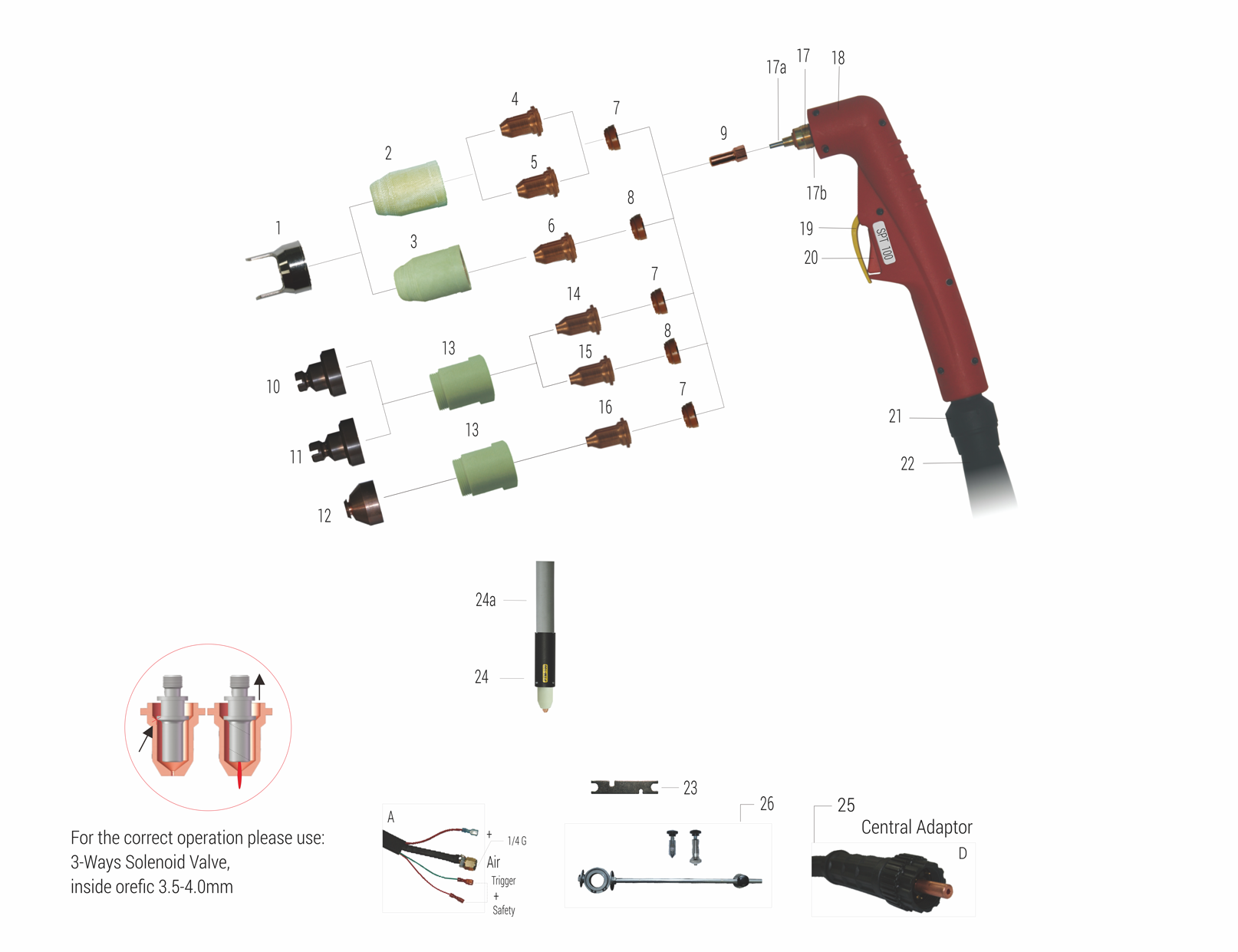

| No. | Part No. | Reference | Description |
|---|---|---|---|
| Spacers | |||
| 1 | SCW 0085 | FY0023 | Double Pointed Spacer / SPT100 |
| Outside Nozzles - SPT100 | |||
| 2 | SFC 0678-01 | 60444 | Outside Nozzle SPT100 / 30-70A |
| 3 | SFC 0676-01 | 60500 | Outside Nozzle SPT100 / 80-120A |
| Tips - Contact Cutting (30-70A) | |||
| 4 | SFE 0672-09 | 60501 | Tip Ø0.9mm / Contact Cutting / 30-70A / Back Striking |
| Tips - Back Striking (40-120A) | |||
| 5 | SFE 0678-10 | 51245.09 | Tip |
| 5.1 | SFE 0678-11 | 51246.10 | Tip Ø1.0mm / 40-50A / Back Striking |
| 5.2 | SFE 0678-12 | 51246.11 | Tip Ø1.1mm / 50-60A / Back Striking |
| 5.3 | SFE 0676-14 | 51246.12 | Tip Ø1.2mm / 60-70A / Back Striking |
| 6 | SFE 0676-15 | 51248.14 | Tip |
| 6.1 | SFE 0676-16 | 51248.15 | Tip Ø1.4mm / 80-90A / Back Striking |
| 6.2 | — | 51248.16 | Tip Ø1.5mm / 100-110A / Back Striking |
| 6.3 | — | — | Tip Ø1.6mm / 110-120A / Back Striking |
| Diffusers - SPT100 | |||
| 7 | SFP 0662 | 52556 | Diffuser SPT100 / 30-70A |
| 8 | SFP 0661 | 60504 | Diffuser SPT100 / 80-120A |
| Electrodes | |||
| 9 | SFL 0676 | 60505 | Electrode Plasma SPT100 |
| Shield Caps - Hand Torch | |||
| 10 | SCW 0700 | 60508 | Shield Cap, 40-70A |
| 11 | SCW 0644 | 60502 | Shield Cap, 80-120A |
| 12 | SCW 0064 | — | Shield Cap, Gouging / 120A |
| Contact Cut - Outside Nozzles & Tips | |||
| 13 | SFC 0674-01 | — | Outside Nozzle SPT100 / Contact Cut |
| 14 | SFE 0674-10 | 51276.1 | Tip |
| 15 | SFE 0674-11 | 51276.11 | Tip Ø1.0mm / 40-50A / Back Striking |
| 15.1 | SFE 0674-12 | 51276.12 | Tip Ø1.1mm / 50-60A / Back Striking |
| 15.2 | SFE 0686-14 | — | Tip Ø1.2mm / 60-70A / Back Striking |
| 15.3 | SFE 0686-15 | — | Tip |
| 16 | SFE 0686-16 | — | Tip Ø1.4mm / 80-90A / Back Striking |
| 16.1 | — | — | Tip Ø1.5mm / 100-110A / Back Striking |
| 16.2 | — | — | Tip Ø1.6mm / 110-120A / Back Striking |
| Gouging Tips | |||
| 16.3 | SFE 0687-22 | — | Tip / 120A / Gouging / Back Striking |
| Torch Heads - Hand Torch SPT100 | |||
| 17 | SFJ 0680 | 09700 | Plasma Torch Head SPT100 |
| 17a | SJX 0774 | 09700.48 | Air Tube SPT100 |
| 17b | SPD 0705 | 51190.41 | "O" Ring Ø18×Ø21mm |
| Handles & Protection - Hand Torch | |||
| 18 | SQF 0031 | 60368 | Plasma Handle Manual / SPT80-100 / Red |
| 19 | SRT 0722 | — | Protection Part / Plasma / Yellow |
| Trigger & Joints | |||
| 20 | SRA 0070 | 09710 | Trigger |
| 21 | SRT 0893 | 07218 | Joint / Small / New Type |
| Cable Assemblies - PT80-PT120 (10mm²) | |||
| 22 | SFX 01210063-00 | — | Cable Assembly / PT80-PT120 / 10mm² / 6m / Two Control Wires / 1PC |
| 22.1 | SFX 01210060-00 | — | Cable Assembly / PT80-PT120 / 10mm² / 6m / Two Control Wires / Central Adaptor |
| 22.2 | SFX 01210120-00 | — | Cable Assembly / PT80-PT120 / 10mm² / 12m / Two Control Wires / Central Adaptor |
| 22.3 | — | — | Cable Assembly / PT80-PT120 / 10mm² / 12m / Two Control Wires / 1PC |
| Machine Torch Head - SPTM100 | |||
| 23 | SMQ 6006 | — | Spanner For Plasma |
| 24 | SFJ 0684 | — | Plasma Torch Auto Head / SPTM100 |
| 24a | SQF 0017 | — | Fiberglass Position Tube / SPTM80-120 |
| Accessories | |||
| 25 | SJH 0078 | — | Central Adaptor Torch Side Plasma 5 Pins |
| 26 | SCW 0705 | — | Circle Cutting Attachment / SPT100 |
DISCLAIMER
⚠️ The parts shown on this page are not genuine brand name parts. They are interchangeable aftermarket parts made to fit the original equipment.
- 🔄 Modifications: Articles stated on this page are subject to modifications or substitution without prior notice.
- ™️ Trademarks: All brand names and trademarks included on this page are registered trademarks of their proper owners and remain the exclusive property of the respective owners.
- ✅ Compatibility: Parts shown are interchangeable parts made to fit the original equipment.
- 🔧 Reference Codes: All reference codes are provided for convenient research purposes only.
