Plasma Cutting Torches
Sibitweld delivers an extensive portfolio of premium plasma cutting torches engineered to provide superior performance, exceptional durability, and optimal user experience for industrial cutting applications. Our precision-manufactured plasma cutting torches are designed to withstand demanding operational environments, ensuring consistent reliability and outstanding cut quality across all production requirements.
PLASMA TORCH - PT-31
High-Frequency Technology
Compatible Torch and Parts for:
ESAB (L-TEC) PT-31 / PT-31XL
Plasma Torch PT-31 - Technical Specifications
Current Rating
30A
Duty Cycle
60%
Plasma Gas
Air
Gas Pressure
4.5-5.0 Bar
Gas Flow
150 LPM
Ignition Type
HF (High Frequency)
Post Flow
40 Sec (Rec.)
Standard Length
5m (16ft)
| Part No. | Reference | Description | Cable Length | Connection |
|---|---|---|---|---|
| SVD 6650 | — | Plasma Torch PT-31 | 5m (16ft) | M16×1.5 |
| SVD 6251 | — | Plasma Torch PT-31 | 5m (16ft) | M14×1.5 |
| SVD 6252 | — | Plasma Torch PT-31 | 5m (16ft) | M14×1 |
| SVD 6253 | — | Plasma Torch PT-31 | 5m (16ft) | 9/16 UNF |

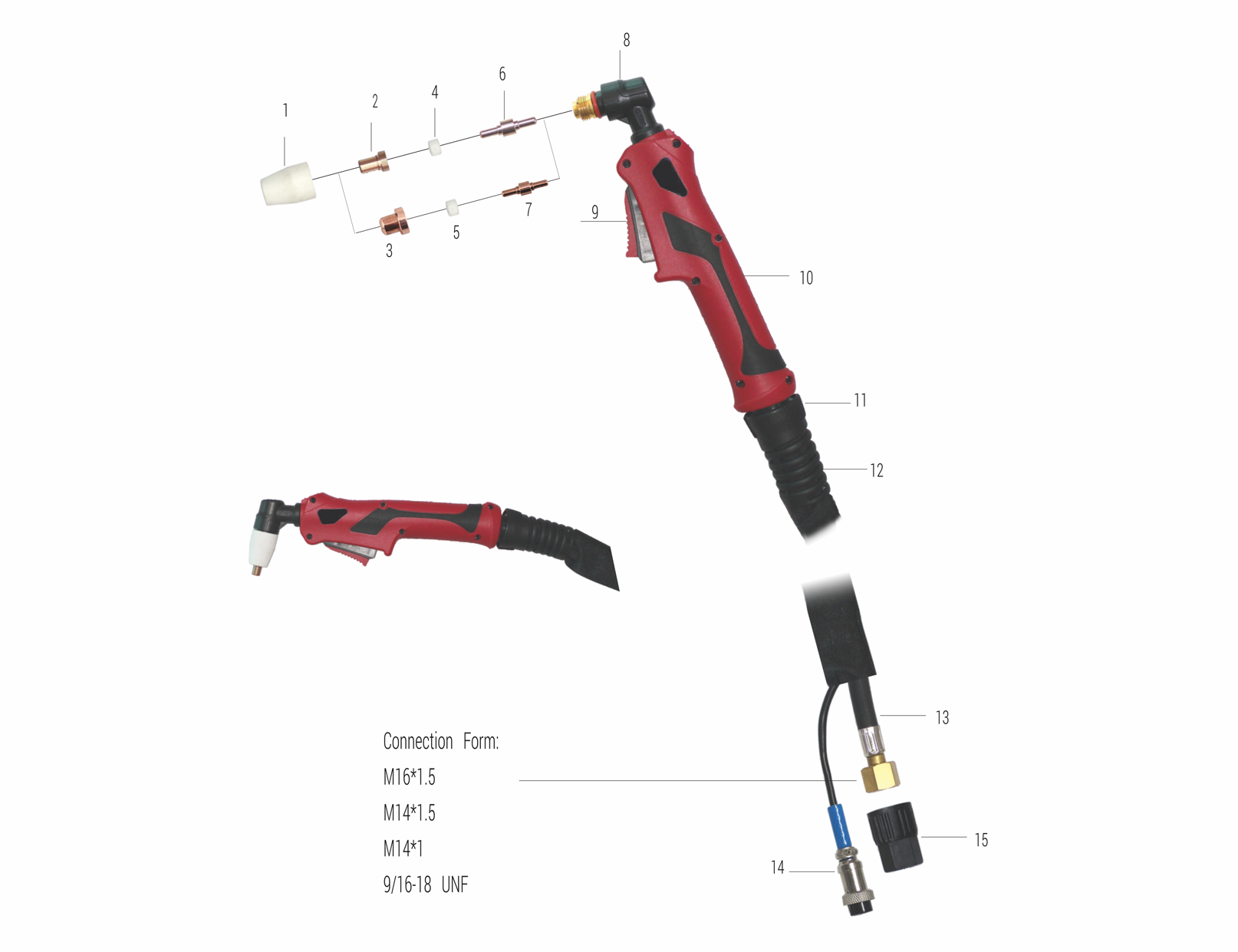

| No. | Part No. | Reference | Description |
|---|---|---|---|
| Shield Cups | |||
| 1 | SFC 0071 | 18204 | Shield Cup PT-31 |
| Standard Tips | |||
| 2 | SFE 0086-10 | 19682 | Extended Tip PT-31 |
| 3.1 | SFE 0056-10 | 18785 | Tip Ø1.0mm PT-31 / Long |
| 3.2 | SFE 0056-11 | 18205 | Tip Ø1.1mm PT-31 / Long |
| 3.3 | SFE 0056-14 | 19683 | Tip Ø1.4mm PT-31 / Long |
| Diffusers | |||
| 4 | SFP 0078 | — | Diffuser PT-31 |
| 5 | SFP 0079 | 20072 | Diffuser PT-31 / Long |
| Electrodes | |||
| 6 | SFL 0087 | — | Electrode PT-31 |
| 7 | SFL 0094 | — | Electrode PT-31 / Long |
| Torch Heads & Handles | |||
| 8 | SFJ 0032 | — | Plasma Torch Head PT-31 |
| 9 | SRT 0724 | — | Trigger |
| 10 | SQF 0025 | — | Plasma Handle PT-31 |
| Joints & Support Components | |||
| 11 | SRT 0860 | — | Small Joint TIG 9-17-20 |
| 12 | SRT 0868 | — | Big Spring Support For TIG 18-26 |
| Cable Assemblies - PT-31 (4mm²) | |||
| 13 | SFX 00504055-00 | — | Cable Assembly / PT-31 / 4mm² / 5m M16×1.5 |
| 13a | SFX 00504055-01 | — | Cable Assembly / PT-31 / 4mm² / 5m M14×1.5 |
| 13b | SFX 00504055-02 | — | Cable Assembly / PT-31 / 4mm² / 5m M14×1 |
| 13c | SFX 00504055-03 | — | Cable Assembly / PT-31 / 4mm² / 5m 9/16-18 UNF |
| Accessories | |||
| 13d | SRA 0757 | — | Connector 2 Holes |
| 14 | SRT 0029 | — | Protection Nut CH19 |
DISCLAIMER
⚠️ The parts shown on this page are not genuine brand name parts. They are interchangeable aftermarket parts made to fit the original equipment.
- 🔄 Modifications: Articles stated on this page are subject to modifications or substitution without prior notice.
- ™️ Trademarks: All brand names and trademarks included on this page are registered trademarks of their proper owners and remain the exclusive property of the respective owners.
- ✅ Compatibility: Parts shown are interchangeable parts made to fit the original equipment.
- 🔧 Reference Codes: All reference codes are provided for convenient research purposes only.
