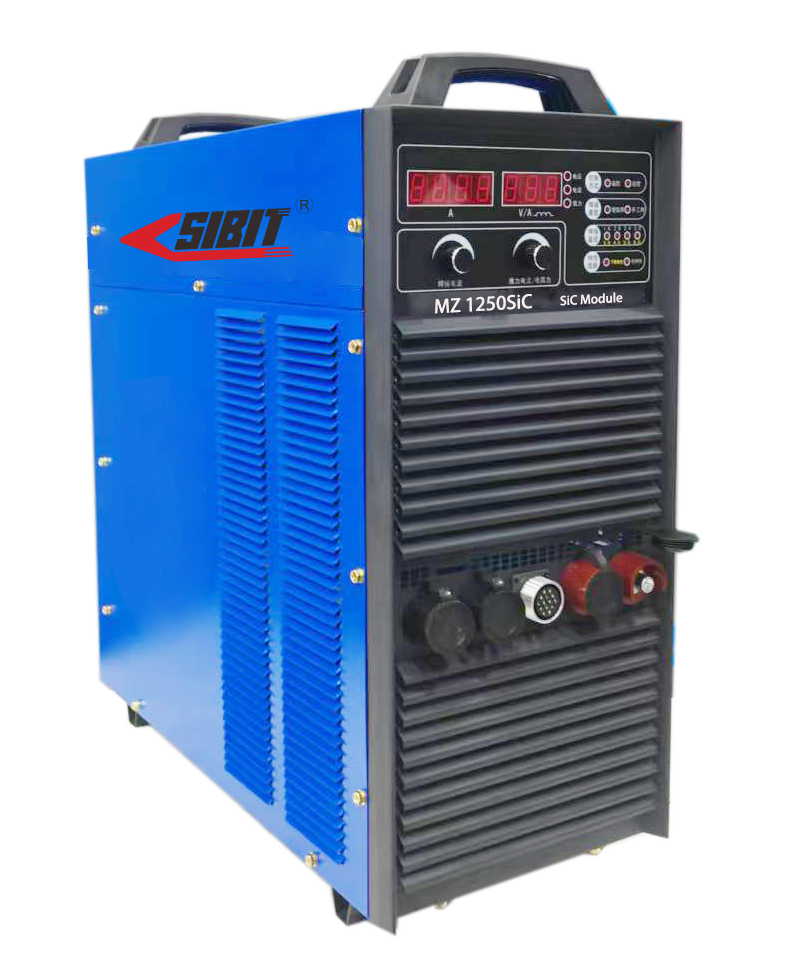

MZ 1250 SiC 3-PH
Product Overview
The MZ 1250SiC represents the cutting edge of welding technology, featuring advanced Silicon Carbide (SiC) modules for superior performance and efficiency. This professional-grade system is designed for demanding industrial applications requiring precision and reliability.
Applications & Materials
Compatible Materials
Carbon Steel
Low Alloy Steel
Cast Iron
Industry Applications
Heavy Machinery Manufacturing
Shipbuilding and Marine Repair
Pipeline Construction
Steel Structure Fabrication
Boiler Manufacturing
Chemical Container Production
Bridge Construction
Additional Benefits
Performance
- Superior arc stability
- Precise control capabilities
- High-frequency operation
- Minimal power losses
Versatility
- Multi-process capability
- Wide material compatibility
- Flexible output characteristics
- Broad application range
Efficiency
- Energy-efficient operation
- Compact design
- Reduced weight
- High duty cycle
What Makes it stand out
Key Features
Advanced SiC Technology: Silicon Carbide modules enable high-frequency operation with minimal losses, delivering superior efficiency and performance.
Compact and Lightweight Design: 50% smaller and lighter than conventional IGBT series.
Powerful Output Capacity: 100% duty cycle @1250 amps capability, supporting single-pass welding of 20mm-50mm thick steel plates and multi-layer welding up to 150mm.
Superior Duty Cycle: 100% duty cycle at rated output at 40°C ambient temperature.
Dual Output Characteristics: Features both flat and drooping characteristics - flat for thin wire diameters and drooping for thick wire diameters.
Multi-Process Compatibility: Supports manual arc welding (including carbon arc gouging and stick welding) and submerged arc welding.
| Parameter | Unit | Specification |
|---|---|---|
| Input Characteristics | ||
| Power Frequency | Hz | 50/60 |
| Rated Input Voltage | V | 3 Phase; 380V ±10% |
| Input Capacity | kVA | 69 |
| Input Current | A | 105 |
| Output Characteristics | ||
| No-Load Output Voltage (OCV) | V | 92 |
| Welding Current Range | A | 60~1250 |
| Performance Specifications | ||
| Rated Duty Cycle (at 40°C) | % | 100% @ 1250A |
| Core Technology | ||
| Advanced Technology | - | Silicon Carbide (SiC) Modules |
| Welding Capabilities | ||
| Wire Size Range | mm | Ø3.0~Ø6.0 |
| Welding Processes | - | Manual Arc, Submerged Arc, Stick, Carbon Arc Gouging |
| Output Characteristics | - | Dual (Flat & Drooping) |
| Single-Pass Welding Capacity | mm | 20~50 (thick steel plates) |
| Multi-Layer Welding Capacity | mm | Up to 150 |
| System Features | ||
| Cooling Method | - | Air Cooling |
| Overheat Protection | - | YES |
| Overcurrent Protection | - | YES |
| Undervoltage Protection | - | YES |
| Compatible Materials | ||
| Material Types | - | Carbon Steel, Low Alloy Steel, Cast Iron |
| Physical Specifications | ||
| Dimensions (L×W×H) | mm | 630×310×660 |
| Net Weight | kg | 60 |
🔷 Silicon Carbide (SiC) Technology Advantages
World's First: Sibitweld is the first company worldwide to implement SiC technology in welding equipment. This revolutionary technology offers 50% size and weight reduction compared to conventional IGBT series, superior arc stability, high-frequency operation with minimal power losses, enhanced energy efficiency, and exceptional performance for demanding industrial applications including heavy machinery manufacturing, shipbuilding, pipeline construction, steel structure fabrication, boiler manufacturing, and bridge construction.
Why Choose Sibit Power Sources?
Reliable performance for uninterrupted operation
Precision control for accurate and consistent results
Energy-efficient design to minimize operating costs
Versatile applications for a wide range of industrial processes
User-friendly interface for easy setup and operation
Partner with Sibit for cutting-edge automation power sources that enhance efficiency, productivity, and profitability in your manufacturing operations. Contact us today to learn more about our power sources and how they can transform your automation processes.
