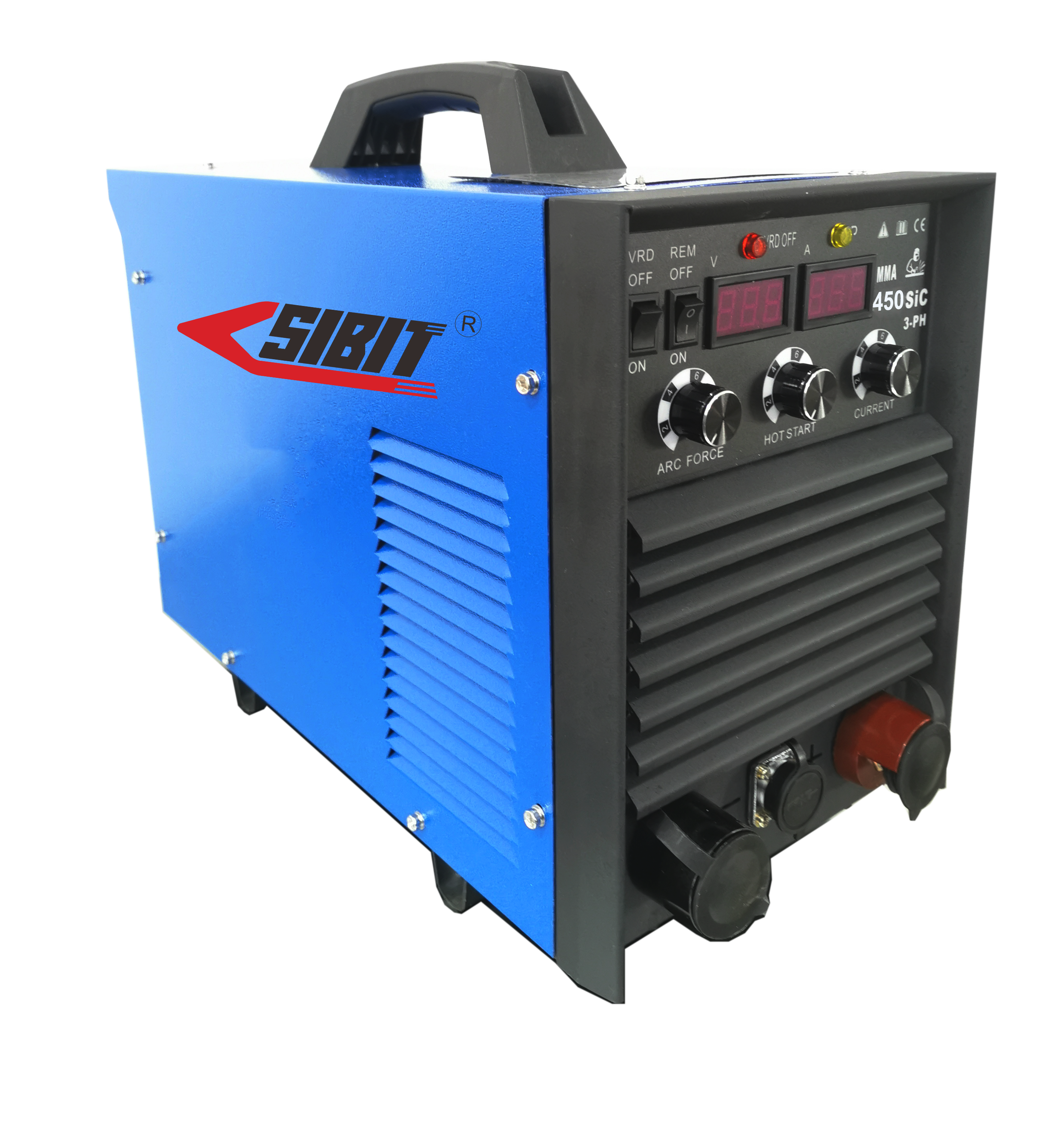

MMA-450SiC
What Makes it stand out
Product Highlights:
Silicon Carbide Technology (SiC): Utilizes silicon carbide, allowing for high operating frequencies (up to 100KHz) with exceptionally low losses, ensuring efficient high-frequency, low-loss operation.
Compact and Lightweight Design: With dimensions of 467×219×366mm and a weight of only 11.3 kg, it is significantly smaller and lighter, making it easy to handle and transport.
Stable Output: Capable of running continuously at 25KW power with a 100% duty cycle at rated output, even at 40°C, ensuring reliable performance during extended use.
Generator Compatibility: Can be paired with a generator, with a recommended generator power of more than 50KW for optimal performance.
Adjustable Arc Force and Hot Start: Both arc force (0-100A) and hot start (0-100A) are adjustable, making it adaptable for various welding conditions, and capable of handling a variety of acidic and alkaline electrodes.
Long Cable Welding Support: Suitable for long cable welding applications, supporting cable lengths up to 100 meters.
Superior Welding Experience: The high inverter frequency delivers excellent welding performance, providing smooth operation during low current welding and reducing spatter during high current welding, with guaranteed penetration.
| Parameter | Unit | Specification |
|---|---|---|
| Power Supply | ||
| Power Frequency | Hz | 50/60 |
| Input Voltage Range | V | 3-Phase 380V AC ±15% |
| Recommended Input Voltage | V | 330~430 |
| Rated Input Capacity | kVA | 25.0 |
| Rated Input Current | A | 36 |
| Output Characteristics | ||
| Output Current Control | - | Constant Current (CC) |
| Welding Current Range | A | 0~450 |
| No-Load Voltage | V | 75 |
| VRD Voltage | V | 24 |
| VRD Function | - | Switchable |
| Performance Specifications | ||
| Rated Duty Cycle @ 40°C | % | 100% @ 450A |
| Efficiency | % | 85 |
| Power Factor | - | 0.80 |
| Technology & Features | ||
| Inverter Technology | - | Silicon Carbide (SiC) |
| Hot Start Function | - | Adjustable |
| Arc Force Control | - | Adjustable |
| Remote Control Interface | - | Available |
| Digital Display | - | Current & Voltage |
| Welding Process | - | MMA / Arc Gouging |
| Electrode Diameter | mm | Ø2.5~Ø5.0 |
| General Features | ||
| Quick Connector Type | - | DIN 50-70 |
| Protection System | - | Thermal Overload |
| Cooling Method | - | Forced Air |
| Carrying Handle | - | Integrated |
| Standards & Certification | ||
| Insulation Class | - | Class H |
| Ingress Protection | - | IP23S |
| Physical Specifications | ||
| Dimensions (L × W × H) | mm | 467 × 219 × 366 |
| Net Weight | kg | 11.3 |
| Gross Weight | kg | 15.0 |
Product Overview
The MMA-450SiC delivers 450A output with 100% duty cycle at 40°C. Silicon Carbide semiconductor technology enables high-frequency operation (up to 100kHz), 85% efficiency, and ultra-compact 11.3kg design. Supports MMA welding and arc gouging processes with adjustable arc force and hot start capabilities.
Silicon Carbide (SiC) Technology
SiC semiconductors operate at high frequency (up to 100kHz) versus traditional 20-30kHz, providing superior switching speed, 85% efficiency, and reduced power loss compared to traditional IGBT technology. Sibitweld is the first company to implement SiC technology in professional welding equipment, achieving 100% duty cycle at 450A with 25kW continuous power output in an ultra-lightweight 11.3kg package—significantly lighter than conventional units.
Target Applications
Industrial welding, fabrication shops, construction sites, manufacturing facilities, and mobile welding operations requiring 450A continuous output. Ideal for professionals demanding reliable performance with maximum portability.
Core Technology
SiC technology at high frequency (up to 100kHz) with 85% efficiency, 100% duty cycle at 450A, 0.80 power factor. Dimensions: 467×219×366mm, weight: 11.3kg.
Protection Systems
Thermal overload protection, IP23S rating, Class H insulation, voltage tolerance 330-430V for generator operation (recommended 50kW+ generator).
Key Features
SiC Technology
High-frequency operation (up to 100kHz) with 85% efficiency and reduced power loss compared to traditional IGBT technology.
100% Duty Cycle
Continuous welding at 450A without cooling breaks at 40°C ambient temperature for extended welding sessions.
25kW Power Output
Capable of working continuously at 25kW power for demanding welding applications requiring reliable output.
Ultra-Lightweight Design
467×219×366mm dimensions, 11.3kg weight—exceptionally lightweight for 450A capacity, maximizing portability.
Adjustable Controls
Arc force (0-100A) and hot start (0-100A) adjustment for various welding conditions and electrode types.
Superior Arc Performance
Soft arc during low-current welding, reduced spatter during high-current welding, reliable penetration across all amperage ranges.
Electrode Compatibility
Handles acidic and alkaline electrodes, Ø2.5-5.0mm rod diameter range for versatile welding applications.
Long Cable Support
Supports cable lengths up to 100 meters for extended reach operations and remote welding locations.
Generator Compatible
330-430V input range (±15% tolerance). Recommended generator: 50kW minimum for optimal performance.
85% Efficiency
0.80 power factor, 25kVA rated input capacity, 36A rated input current for reduced energy consumption.
VRD Safety
Voltage Reduction Device reduces open-circuit voltage to 24V for enhanced operator safety with ON/OFF switch.
Remote Control
REM switch allows for remote control or pedal use for enhanced process control without being at the machine.
Digital Display
Dual digital displays for voltage (V) and current (A) provide clear, precise readouts for accurate monitoring.
Multi-Process
Supports MMA welding and arc gouging for versatile metalworking applications and material removal.
Quick Connector
DIN 50-70 quick connector system for fast and secure cable connections, reducing setup time.
Integrated Handle
Integrated carrying handle for easy transport and mobility across job sites and work locations.
50/60Hz Compatibility
Supports both 50Hz and 60Hz power frequencies for global compatibility and versatile power source options.
Material Compatibility
Applications
Ironwork & Fabrication
- Ironwork production
- Door and window processing
- Fence manufacturing
- Metal cabinet production
- Steel furniture manufacturing
Construction & Installation
- Building installation
- Interior decoration
- Renovation projects
- Structural welding
- Equipment installation
Repair & Maintenance
- Machinery repair
- General mechanical repairs
- Agricultural machinery
- Automotive maintenance
- Motorcycle repair
Summary
The MMA-450SiC combines SiC technology with 100% duty cycle at 40°C, 85% efficiency, and professional welding capabilities in an ultra-lightweight 11.3kg package. Features include high-frequency operation (up to 100kHz), 25kW continuous power output, adjustable arc force (0-100A) and hot start (0-100A), VRD safety (24V with ON/OFF switch), remote control capability, and generator compatibility (330-430V input range with ±15% tolerance). Supports Ø2.5-5.0mm welding rods and cable lengths up to 100m. Multi-process capability includes MMA welding and arc gouging. Suitable for carbon steel, low alloy steel, stainless steel, and cast iron welding applications across ironwork, construction, metal furniture, machinery repair, and automotive maintenance sectors. DIN 50-70 quick connector system and integrated carrying handle provide enhanced portability and convenience. Compatible with both 50Hz and 60Hz power frequencies for global versatility. Compact dimensions (467×219×366mm) make it ideal for mobile welding operations requiring maximum portability without sacrificing performance.
Industry-First Ultra-Lightweight SiC Technology
Sibitweld is the first company to implement Silicon Carbide technology in professional welding equipment, delivering superior performance with 25kW continuous power output and 450A capacity in an exceptionally lightweight 11.3kg package—ideal for mobile welding operations.
