Product Name:
MIG 500S Welding Machine

Model #:
MIG 500S

Product Overview:


The MIG 500S is a powerful three-phase inverter welding machine designed for industrial and heavy industrial applications. It supports MIG/MAG, MMA (Stick), and arc gouging processes, providing versatility for various fabrication and production tasks. With advanced IGBT module technology and a high duty cycle, it ensures reliable performance even in demanding environments.

Two large black copyright symbols on a transparent background.

Why Choose the MIG 500S?

The MIG 500S combines advanced technology, versatility, and robust performance, making it an excellent choice for professionals in demanding industrial environments. Its ability to perform MIG/MAG, MMA, and arc gouging processes, along with intelligent protection systems and user-friendly controls, ensures a reliable and efficient welding experience.

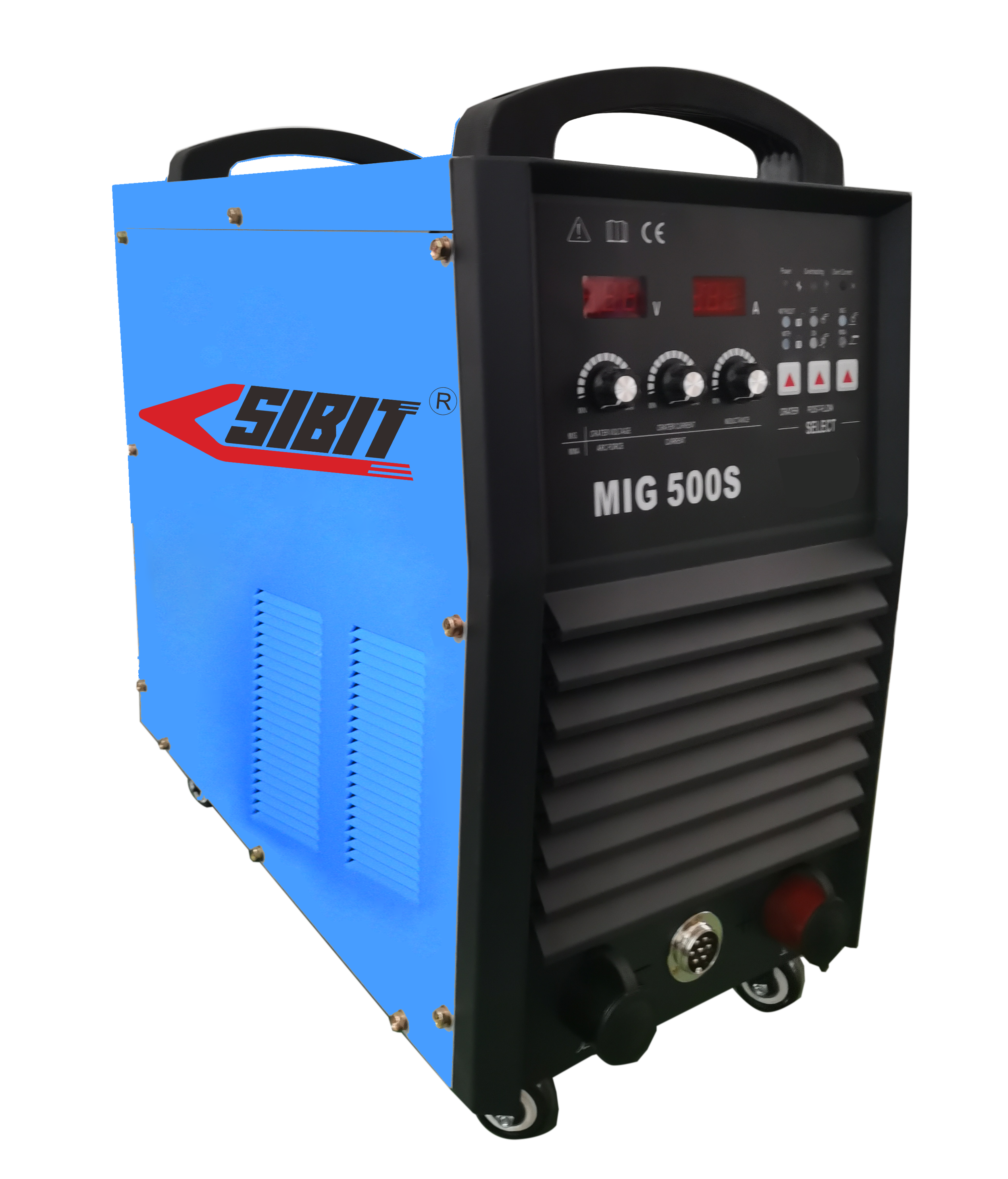

A blue and black MIG 500S welding machine with control knobs, digital displays, and ventilation slats, branded with 'SUBIT'.

Applications:

  • Transportation Fabrication: Ideal for welding tasks in the automotive, shipbuilding, and railway industries.

  • Heavy Equipment Manufacturing: Suitable for constructing and repairing heavy machinery and equipment.

  • Structural Steel Work: Effective for welding structural components in construction and infrastructure projects.

  • Furniture Production: Enables precise welding for metal furniture manufacturing.

Key Features:

  1. Advanced IGBT Module Technology: Enhances performance and increases duty cycle, ensuring reliability under hot, humid, and dusty working conditions.

  2. Infinitive Voltage Control: Allows optimized starting performance and precise adjustment of welding parameters.

  3. Intelligent Protection: Features overload and overheat protection mechanisms to ensure safety and longevity.

  4. Exclusive Circuit Design: Reduces maintenance costs and extends machine life through innovative circuitry.

  5. Excellent Welding Characteristics: Delivers stable arcs and minimal spatter for high-quality welds.

  6. Digital Meter: Provides accurate presetting and display of welding current for precise control.

  7. MMA Welding Capability: Offers stick welding options, enhancing productivity and efficiency.

  8. Inductance Control: Enhances arc stability and minimizes spatter, resulting in cleaner welds.

  9. Extended Welding Area: Optional customized control cable length allows for extended reach, enabling welding in diverse environments.

ACCESSORIES

  • Double Drive Wire feeder

    • Wire feeder Options: Euro Connection or Panasonic Connection

  • MIG GUN Options:

    • Euro Connection or Panasonic Connection

  • CO2 regulator

  • Arc Welding Function:

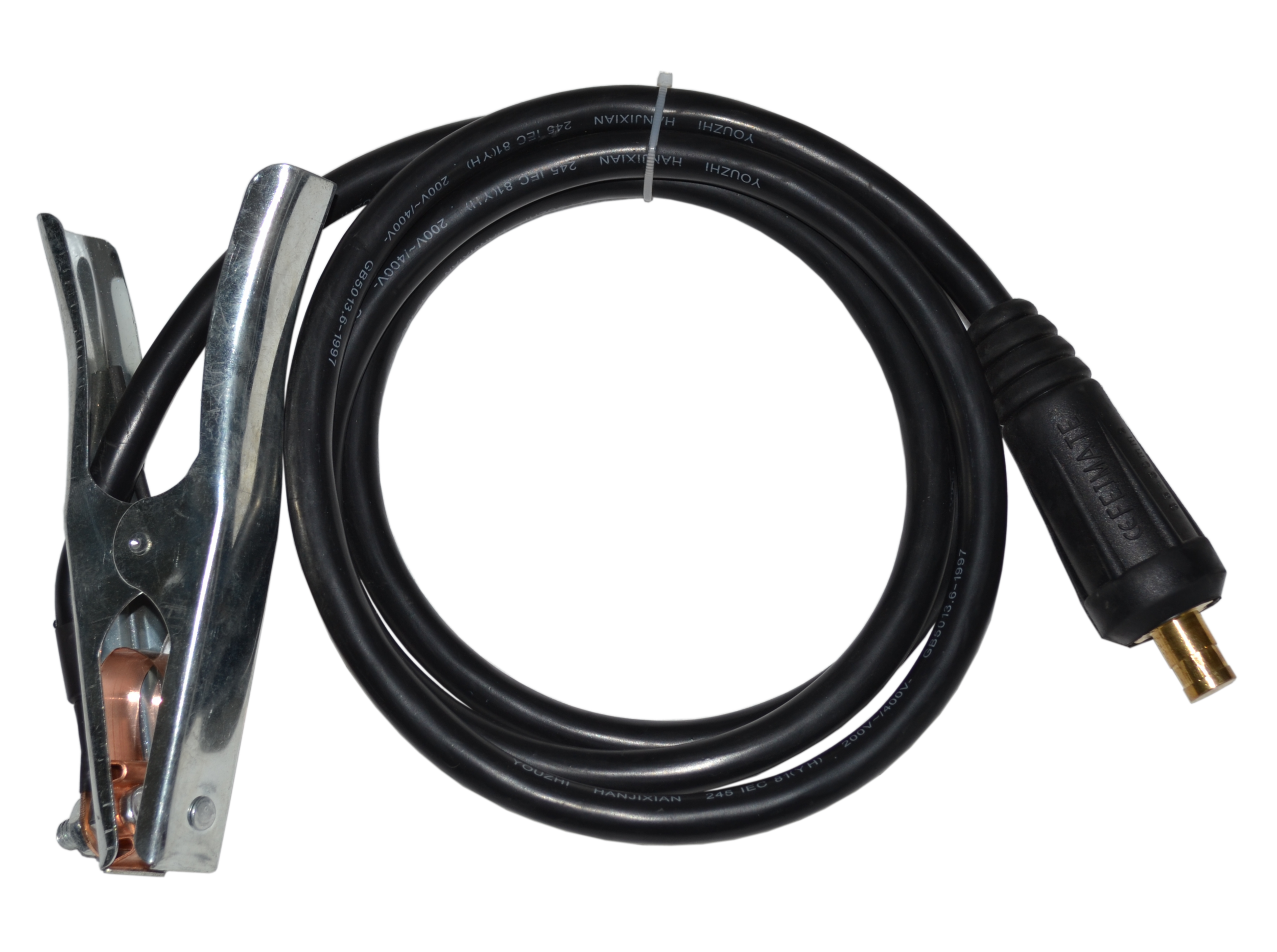

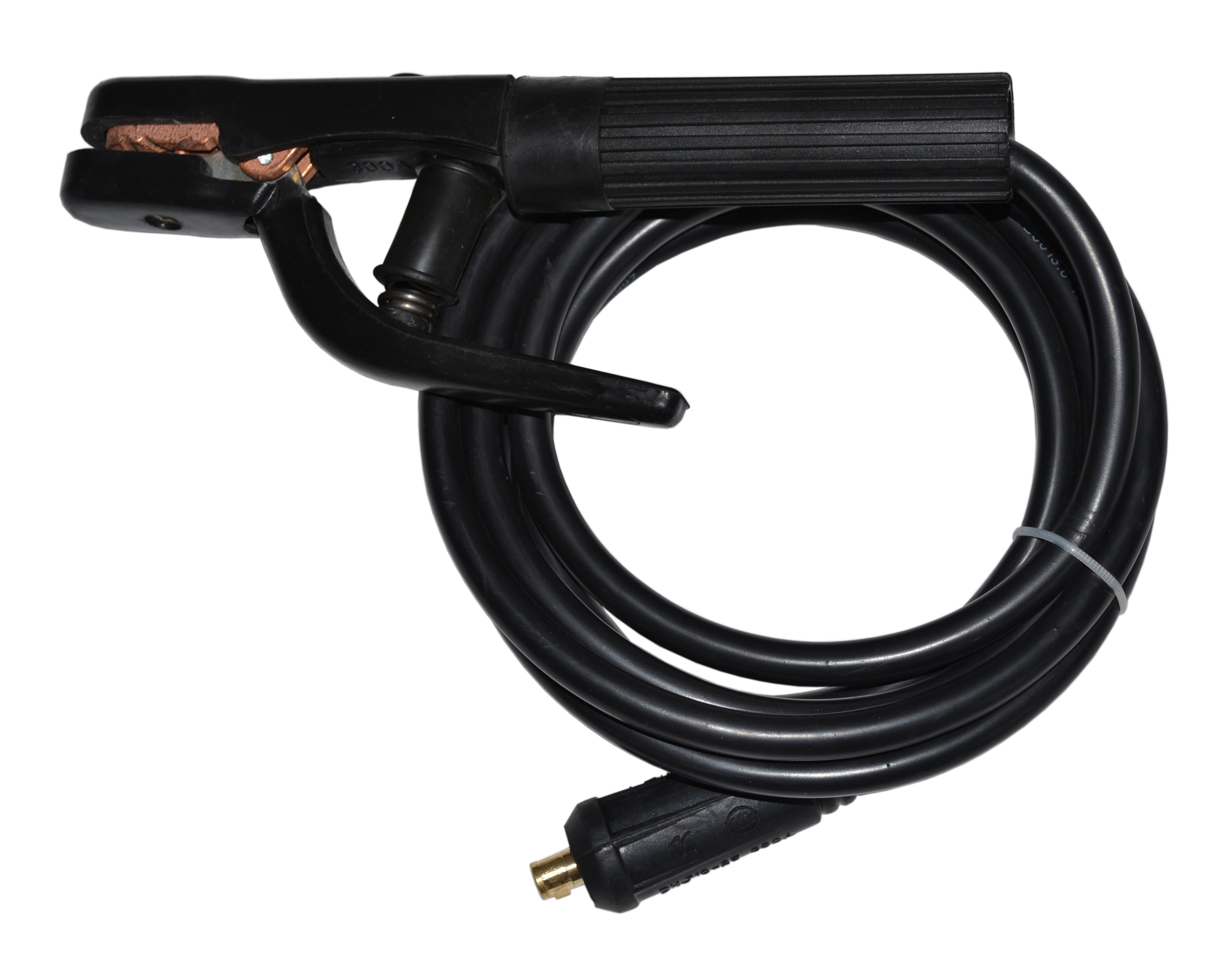

    • Optional: Rod Holder & Earth Clamp: 50 mm2 pure copper cable; length customizable up to 100 m

  • MIG Control Cable:Connecting Power Source and Wire feeder;

    • Standard length: 5m

    • length customizable up to 50 m

  • Arc Gouging Optional:

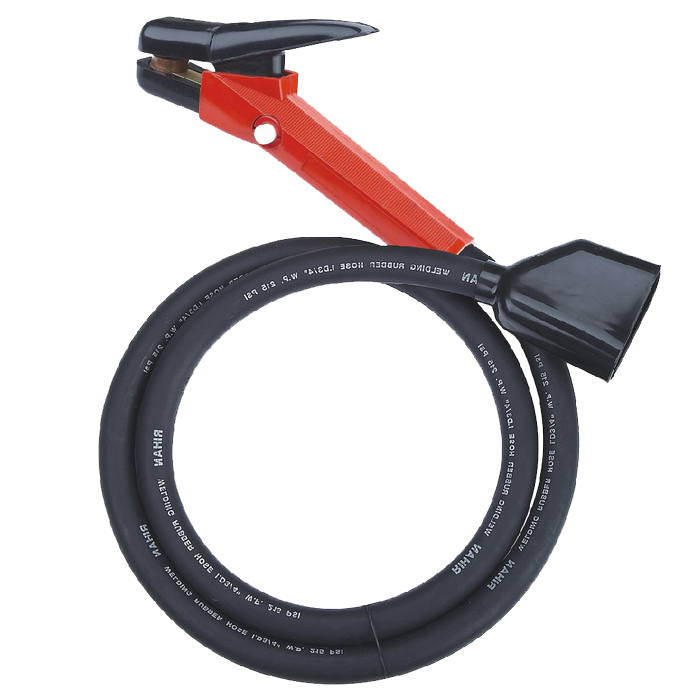

    • 5m 50 mm2 PURE COPPER CABLE ARC GOUGING TORCH

Technical Specifications:

Parameter Value
Input Voltage AC 380V±10% 3PH
Input Power (KVA) MIG: 24.15 / MMA: 24.77
Max Output Current (A) MIG: 500A / MMA: 500A
Duty Cycle @ 40°C 500A @ 60%
No Load Voltage (V) 75
Hot Start YES
Protection & Insulation IP 23S & H
Machine Package Size (mm) 670x395x575
Machine Weight (kg) 32kg
Access Package Size (mm) 600x370x420
Access Weight (kg) 15kg
