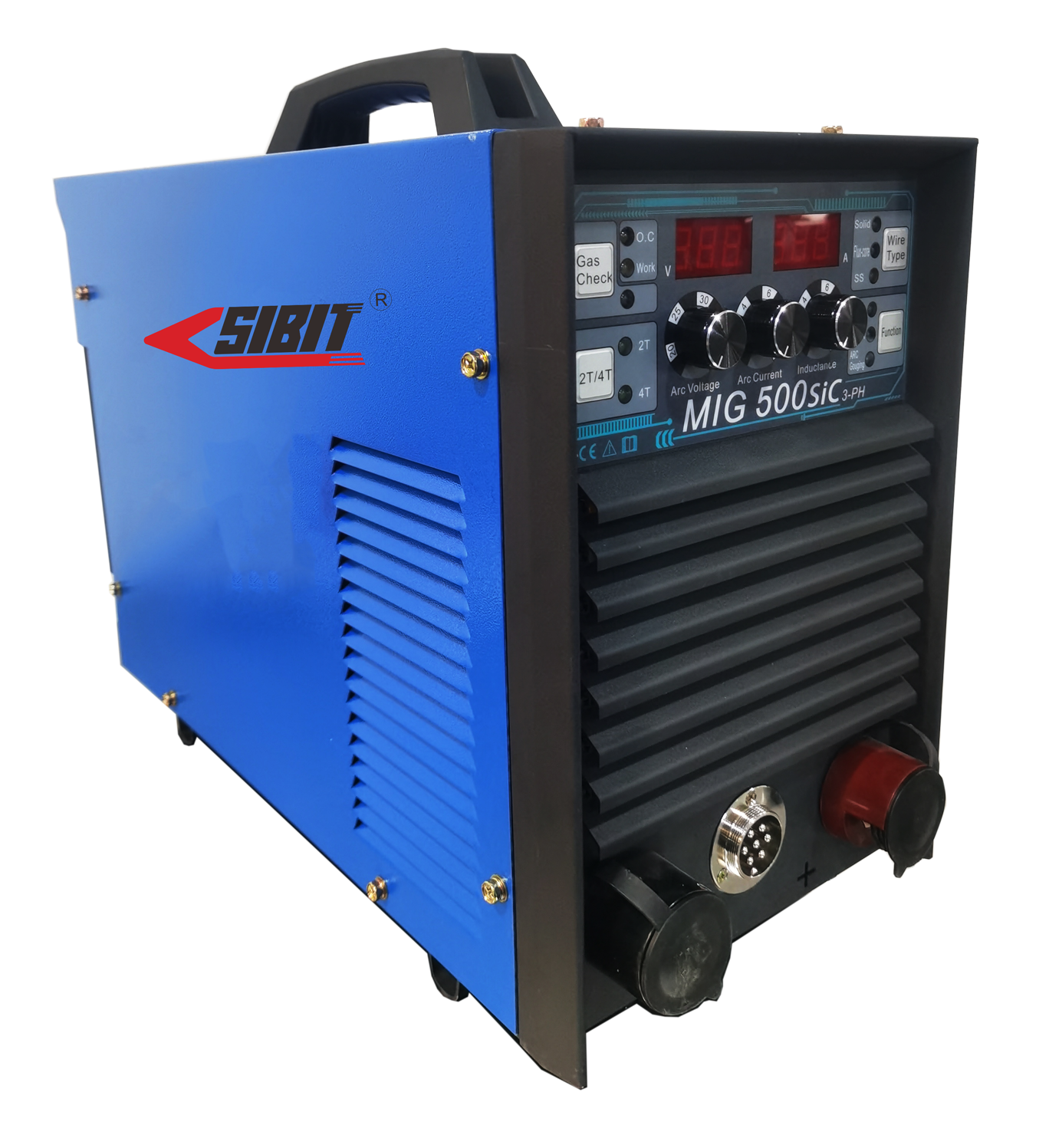

MIG 500SiC
Silicon Carbide Technology Overview
Advanced SiC Power Electronics
Integrating next-generation Silicon Carbide semiconductor technology to deliver superior performance, enhanced efficiency, and compact power density in professional welding systems.
Engineering Excellence
Developing advanced welding systems through systematic innovation methodologies, precision engineering practices, and comprehensive technical validation protocols that exceed industry performance benchmarks.
Manufacturing Precision
Operating state-of-the-art production facilities with integrated quality management systems, advanced automation technologies, and rigorous process controls ensuring consistent product excellence.
Global Distribution Network
Delivering comprehensive equipment solutions through strategic logistics infrastructure, providing expedited international shipping, technical consultation services, and dedicated customer support worldwide.
| Parameter | Unit | Specification |
|---|---|---|
| Power Supply | ||
| Rated Input Voltage | V | 3-Phase AC380V ±10% |
| Permissible Input Voltage Range | V | 320~415 |
| Power Frequency | Hz | 50 |
| Rated Input Capacity | kVA | 27 |
| Rated Input Current | A | 41 |
| Output Characteristics | ||
| Output No-Load Voltage | V | 75 |
| Gas Shielded Welding Current Range | A | 60-500 |
| Manual Welding Current Range | A | 0-500 |
| Performance Specifications | ||
| Rated Duty Cycle (Tested at 40°C) | % | 500A @ 100% |
| Efficiency | η | 85% |
| Power Factor | Cosφ | 0.8 |
| Technology & Features | ||
| Technology | - | Silicon Carbide (SiC) Technology |
| Welding Process | - | MMA / MIG / MAG / Carbon Arc Gouging |
| Applicable Welding Wire | mm | Ø1.0~1.6 |
| Quick Connector | - | DK95B-500A |
| General Features | ||
| Protection | - | Overheat Protection |
| Cooling System | - | Air Cooling |
| Handle | - | YES |
| Physical Specifications | ||
| Dimensions (L×W×H) | mm | 512.5×220×398 |
| Net Weight | kg | 23 |
| Gross Weight | kg | 24.5 |
Product Overview
Revolutionary Silicon Carbide technology redefining heavy-duty industrial MIG welding
What is Silicon Carbide (SiC) Technology?
Silicon Carbide (SiC) represents the next generation of power semiconductor technology. Operating at 100kHz (versus traditional 20-30kHz), SiC semiconductors offer dramatically superior switching speeds, higher efficiency (85%), extremely low losses, and more compact designs. Sibitweld is among the world's first companies to successfully implement this breakthrough technology in MIG welding equipment, delivering 100% duty cycle at 500A in a remarkably compact 23kg package—approximately one-third the size and 58% the weight of conventional MIG-500 units, revolutionizing what's possible in professional heavy-duty MIG welding.
The MIG 500SiC is an advanced Silicon Carbide (SiC) technology welding system designed for heavy-duty industrial applications. Features 100kHz high-frequency operation, 100% duty cycle at 40°C, and comprehensive multi-process capabilities including MIG/MAG/MMA welding and carbon arc gouging (up to 12mm rods, 30kW max). With 85% efficiency, 7-pin control interface for 50m remote operation, 25kW continuous output capacity (500A/50V), and generator compatibility, this ultra-compact system delivers unprecedented performance for the most demanding industrial environments.
Designed For
Professional industrial welders, heavy manufacturing facilities, large-scale fabrication operations, construction companies, and heavy industry requiring maximum duty cycle, superior arc performance, multi-process capabilities, and exceptional portability with 500A output for intensive applications.
Core Technology
Revolutionary Silicon Carbide (SiC) technology at 100kHz ensures extremely low losses, 85% efficiency, 100% duty cycle at 500A, and exceptional power factor (0.8). Ultra-compact design: 512.5×220×398mm dimensions, only 23kg weight—approximately 1/3 the size and 58% the weight of conventional units.
Safety First
Comprehensive protection systems including overheat protection, IP23S protection class for dust and water resistance, Grade H insulation for extended lifespan, and voltage fluctuation tolerance (320-415V) for safe operation with generators in all industrial environments.
Key Features & Benefits
Industry-leading technology delivering unmatched heavy-duty performance and portability
Silicon Carbide (SiC) Technology
Advanced Silicon Carbide technology enables high-frequency operation at 100kHz with extremely low losses. Delivers superior switching speed, higher efficiency (85%), and more compact design compared to traditional IGBT technology. Exceptional performance for heavy-duty industrial applications.
100% Duty Cycle
Continuous welding at 25kW (500A/50V) without any cooling breaks at 40°C ambient temperature. Maximizes productivity and eliminates downtime for demanding industrial applications requiring extended high-amperage welding sessions. Reliable performance for continuous heavy-duty operation.
Ultra-Compact Design
Revolutionary compact dimensions of 512.5×220×398mm—approximately one-third the size of conventional MIG-500 units. Weighs only 23kg, which is 58% of the weight of standard NBC-500, offering superior portability without compromising power or performance. Perfect for mobile heavy-duty applications.
Multi-Process Capability
Versatile welding processes including MIG/MAG gas shielded welding (60-500A), MMA manual welding (0-500A), and carbon arc gouging capability with 30kW maximum output. Supports carbon rods up to 12mm diameter for comprehensive heavy-duty metalworking applications.
Superior Arc Performance
High inverter frequency delivers exceptional welding performance with smooth and stable low-current welding, minimal spatter at high currents, and reliable penetration for strong welds. Consistent weld quality across all amperage ranges for professional-grade heavy-duty applications.
Versatile Wire Compatibility
Parameters adaptable for solid wire, flux-cored wire, and stainless steel wire (Ø1.0-1.6mm). Optimized settings for various welding wire types ensure optimal performance across different welding applications and material requirements for maximum flexibility.
7-Pin Control Interface
Features 7-pin control interface compatible with 7-pin cable feeder, supporting long cable welding up to 50 meters without compromising performance. DK95B-500A quick connector for efficient setup and operation in large-scale projects and extensive work areas.
Generator Compatible
Voltage fluctuation tolerance (320-415V input range) ensures reliable operation with generators for on-site construction work. Recommended to use generators with power rating over 55kW for optimal performance. Perfect for remote locations without stable power supply.
85% Efficiency
Industry-leading 85% efficiency with 0.8 power factor reduces energy consumption and operating costs. SiC technology delivers superior performance while minimizing power requirements (27kVA rated input capacity, 41A rated input current) for heavy-duty continuous operation.
Material Compatibility
Versatile welding across multiple metal types
Excellent performance on carbon steel welding applications
Superior results on low alloy steel materials
Professional-grade stainless steel processing capabilities
Reliable cast iron welding and repair applications
Applications
Professional versatility across demanding heavy-duty industrial scenarios
Construction & Fabrication
- Ironwork fabrication projects
- Door and window processing
- Railing construction and installation
- Building installation projects
- Interior decoration work
Manufacturing Industries
- Metal cabinet production
- Steel furniture manufacturing
- Equipment installation services
- Industrial fabrication operations
- Heavy-duty structural metalwork
Repair & Maintenance
- Mechanical repair services
- Agricultural machinery repair
- Automobile maintenance and repair
- Motorcycle service applications
- Heavy equipment repair
Power Source Options
- Generator compatible operation (55kW+)
- 50m remote distance control
- Voltage fluctuation tolerance (320-415V)
- Stable grid power operation
- On-site and off-grid applications
Summary
The future of professional heavy-duty MIG welding technology
The MIG 500SiC represents a breakthrough in heavy-duty MIG welding technology, combining advanced Silicon Carbide (SiC) technology with exceptional portability. With its 100% duty cycle at 40°C, 85% efficiency rating, and comprehensive multi-process capabilities (MIG/MAG/MMA/carbon arc gouging up to 12mm rods), this system delivers professional-grade performance in an ultra-compact 23kg package—approximately one-third the size and 58% the weight of conventional MIG-500 units. Operating at 100kHz with extremely low losses and 25kW continuous output capacity (500A/50V) ensures exceptional welding quality for the most demanding applications.
Ideal for heavy-duty industrial applications requiring reliability, precision, versatility, and exceptional portability in challenging environments. The 7-pin control interface for 50m remote operation, versatile wire compatibility (solid/flux-cored/stainless steel wire Ø1.0-1.6mm), carbon arc gouging capability (30kW max, up to 12mm rods), and generator compatibility (55kW+) make it the perfect choice for large-scale construction sites, heavy manufacturing facilities, fabrication shops, and industrial operations seeking cutting-edge technology and uncompromising heavy-duty performance.
World's First Silicon Carbide (SiC) Heavy-Duty MIG Welding Technology
Sibitweld is among the first companies worldwide to successfully implement Silicon Carbide (SiC) technology in professional heavy-duty MIG welding equipment, setting a new standard for efficiency, performance, portability, and reliability in the industrial welding industry. Experience high-frequency operation at 100kHz with extremely low losses, delivering 100% duty cycle at 500A in a remarkably compact package that's approximately 1/3 the size and 58% the weight of conventional units.
