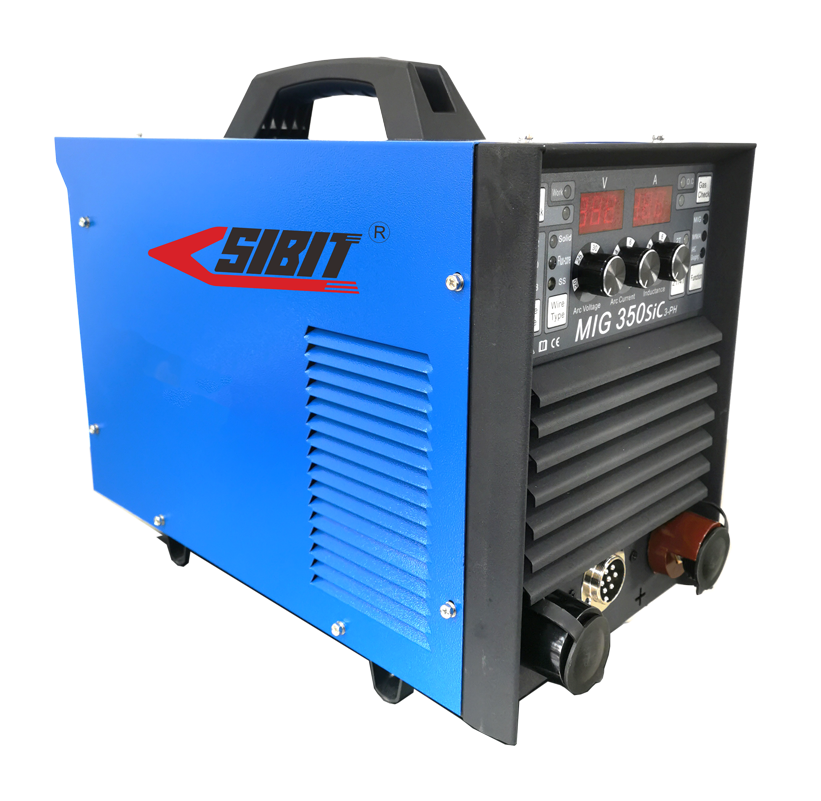

MIG 350SiC
Silicon Carbide Technology Overview
Advanced SiC Power Electronics
Integrating next-generation Silicon Carbide semiconductor technology to deliver superior performance, enhanced efficiency, and compact power density in professional welding systems.
Engineering Excellence
Developing advanced welding systems through systematic innovation methodologies, precision engineering practices, and comprehensive technical validation protocols that exceed industry performance benchmarks.
Manufacturing Precision
Operating state-of-the-art production facilities with integrated quality management systems, advanced automation technologies, and rigorous process controls ensuring consistent product excellence.
Global Distribution Network
Delivering comprehensive equipment solutions through strategic logistics infrastructure, providing expedited international shipping, technical consultation services, and dedicated customer support worldwide.
| Parameter | Unit | Specification |
|---|---|---|
| Power Supply | ||
| Rated Input Voltage | V | 3-Phase AC380V ±10% |
| Permissible Input Voltage Range | V | 320~415 |
| Power Frequency | Hz | 50 |
| Rated Input Capacity | kVA | 16.5 |
| Rated Input Current | A | 25 |
| Output Characteristics | ||
| Output No-Load Voltage | V | 68.5 |
| Gas Shielded Welding Current Range | A | 0-350 |
| Manual Welding Current Range | A | 0-350 |
| Performance Specifications | ||
| Rated Duty Cycle (at 40°C) | % | 350A @ 100% |
| Efficiency | η | 85% |
| Power Factor | Cosφ | 0.8 |
| Technology & Features | ||
| Technology | - | Silicon Carbide (SiC) Technology |
| Welding Process | - | MMA / MIG / MAG |
| Applicable Welding Wire | mm | Ø0.8~1.2 |
| Quick Connector | - | DK50B-300A |
| General Features | ||
| Protection | - | Overheat Protection |
| Cooling System | - | Air Cooling |
| Handle | - | YES |
| Enclosure/Standards/Approvals | ||
| Insulation Class | Grade | H |
| Protection Class | IP | IP23S |
| Physical Specifications | ||
| Dimensions (L×W×H) | mm | 467×219×366 |
| Net Weight | kg | 15.3 |
| Gross Weight | kg | 18 |
Product Overview
The MMA-330SiC delivers 330A output with 100% duty cycle at 40°C. Silicon Carbide semiconductor technology enables high-frequency operation (up to 100kHz), 85% efficiency, and compact 11.3kg design. Supports MMA welding processes with adjustable arc force and hot start capabilities.
Silicon Carbide (SiC) Technology
SiC semiconductors operate at high frequency (up to 100kHz) versus traditional 20-30kHz, providing superior switching speed, 85% efficiency, and reduced power loss compared to traditional IGBT technology. Sibitweld is the first company to implement SiC technology in professional welding equipment, achieving 100% duty cycle at 330A in a 11.3kg package—significantly lighter than conventional units.
Target Applications
Industrial welding, fabrication shops, construction sites, manufacturing facilities, and mobile welding operations requiring 330A continuous output. Ideal for professionals demanding reliable performance in challenging environments.
Core Technology
SiC technology at high frequency (up to 100kHz) with 85% efficiency, 100% duty cycle at 330A, 0.8 power factor. Dimensions: 467×219×366mm, weight: 11.3kg.
Protection Systems
Overheat protection, IP23S rating, Grade H insulation, voltage tolerance 320-415V for generator operation (recommended 50kW+ generator).
Key Features
SiC Technology
High-frequency operation (up to 100kHz) with 85% efficiency and reduced power loss compared to traditional IGBT technology.
100% Duty Cycle
Continuous welding at 330A without cooling breaks at 40°C ambient temperature.
Compact Design
467×219×366mm dimensions, 11.3kg weight—significantly lighter than conventional units.
Adjustable Controls
Arc force (0-100A) and hot start (0-100A) adjustment for various welding conditions.
Arc Performance
Smooth operation at low currents, minimal spatter at high currents, consistent penetration.
Electrode Compatibility
Handles acidic and alkaline electrodes, Ø2.5-5.0mm rod diameter range.
Long Cable Support
Supports cable lengths up to 50 meters for extended reach operations.
Generator Compatible
320-415V input range. Recommended generator: 50kW minimum for optimal performance.
85% Efficiency
0.8 power factor, 13.5kVA rated input capacity, 36A rated input current.
VRD Safety
Voltage Reduction Device reduces open-circuit voltage to 24V for enhanced operator safety.
Remote Control
REM switch allows for remote control or pedal use for enhanced process control.
Digital Display
Dual digital displays for voltage (V) and current (A) provide clear, precise readouts.
Material Compatibility
Applications
Ironwork & Fabrication
- Ironwork production
- Door and window processing
- Fence manufacturing
- Metal cabinet production
Construction & Installation
- Building installation
- Interior decoration
- Renovation projects
- Structural welding
Repair & Maintenance
- Machinery repair
- Equipment installation
- Agricultural machinery
- Automotive maintenance
Summary
The MMA-330SiC combines SiC technology with 100% duty cycle at 40°C, 85% efficiency, and professional welding capabilities in a 11.3kg package. Features include high-frequency operation (up to 100kHz), adjustable arc force (0-100A) and hot start (0-100A), VRD safety (24V), remote control capability, and generator compatibility (320-415V input range). Supports Ø2.5-5.0mm welding rods and cable lengths up to 50m. Suitable for carbon steel, low alloy steel, stainless steel, and cast iron welding applications across ironwork, construction, metal furniture, machinery repair, and automotive maintenance sectors.
