Industrial Welding Robot: ST08-1840

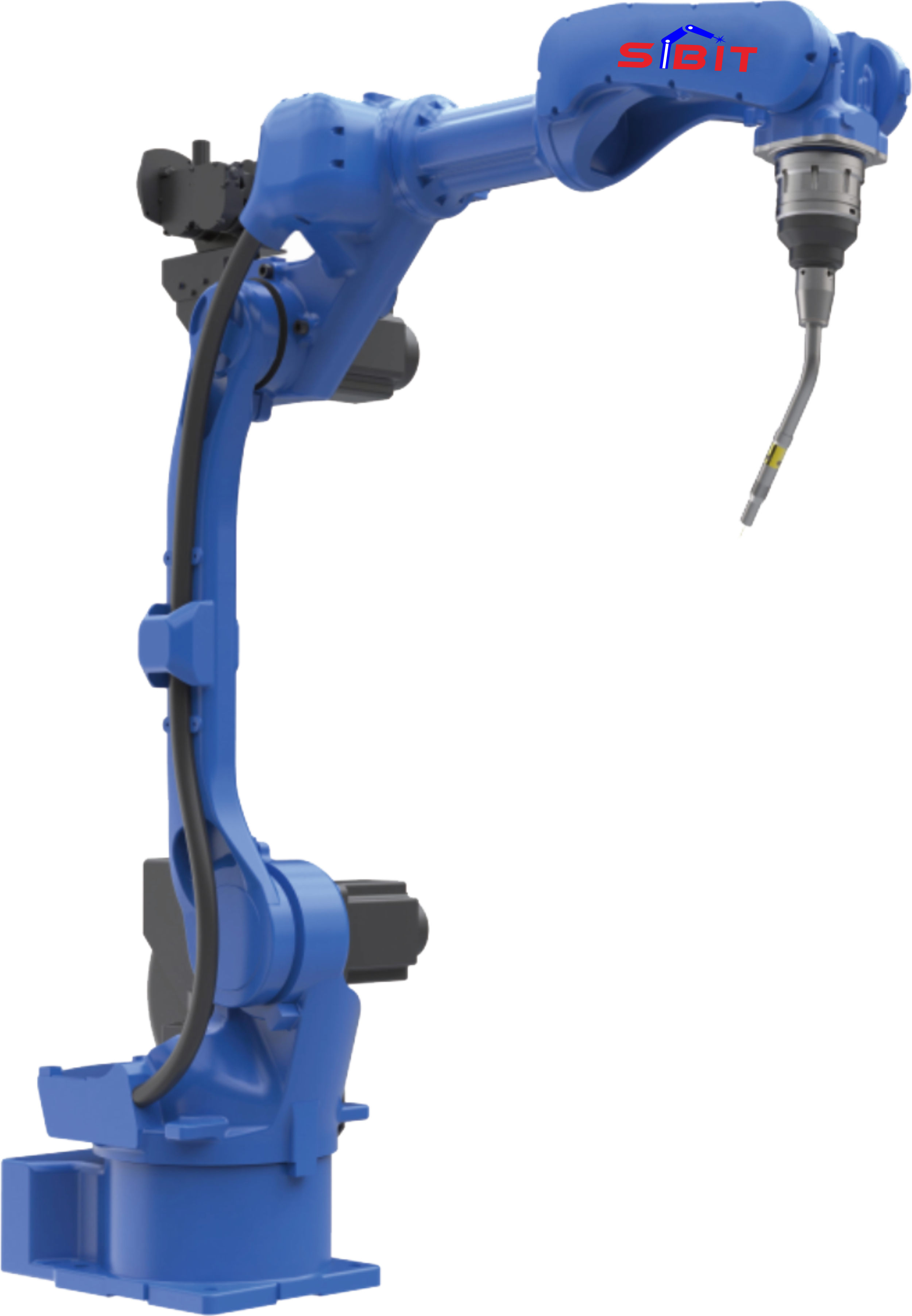

Blue industrial robotic arm with a logo saying 'SIBIT' on the end effector, positioned in front of a background with red, green, blue, and gray vertical lines.
  • The ST08-1840 Industrial Welding Robot is a cutting-edge solution designed for industrial welding applications.

  • This robot offers precise and efficient welding capabilities, making it ideal for a wide range of manufacturing environments.

  • With its advanced features and robust construction, the ST08-1840 ensures high-quality welds while maximizing productivity.

  • Whether you're working with steel, aluminum, or other materials, this welding robot delivers exceptional performance and reliability.


Blue industrial robotic arm with a logo reading 'SIBIT' on the gripper, positioned to operate on a vertical metal cylinder.

Model No.

Controlled axis

Max payload

Max stroke

IP Level

Installation mode

Robot mass

Repeatability

Welding machines

Welding current

Welding torch

J1 axis S

J2 axis L

J3 axis U

J4 axis R

J5 axis B

J6 axis T

ST08-1840

6-DOF

8kg

1840mm

J1, J2-IP56; J3, J4, J5, J6-- IP67

Floor type, ceiling type

180 kg

±0.05 mm

>Standard: Aotai NBC-350R (MIG/MAG/CO2)

>Optional: Aotai NBC-350RL (low spatter)

>Optional: Aotai MIG-350RP (pulse MIG)

350A/500A

Standard air-cooling torch with built-in anti-collision protection


Travel range

±160°

+80°~-145°

+145°~-75°

±190°

+50°~-210°

±230°

Travel speed

150 ˚/s

149 ˚/s

150 ˚/s

392 ˚/s

272 ˚/s

520 ˚/s



Electrical cabinet specifications

Dimensions

Cabinet Mass

Cooling method

IP Level

Input power

I/O signal

LAN

Serial port I/F

RAM capacity

650*460*580mm

50KG

Natural cooling

IP54

220VAC 50/60Hz

16-in / 16-out 24VDC; 2 analog output 0~10V

EtherCAT, TCP/IP

RS485*1, RS422*1, RS232*1, CAN*1, USB*1

JOB 200,000 steps (200MB)

Installation environment

Ambient temperature

Humidity

Vibrations

Altitude

Other requirements

0~45°C

20~80%RH, no condensing

Below 0.5G

Below 1000m

●With no corrosive or combustible gas

●With no water, oil or drug splashing

●With no electromagnetic field nearby

●With no radiations nearby
