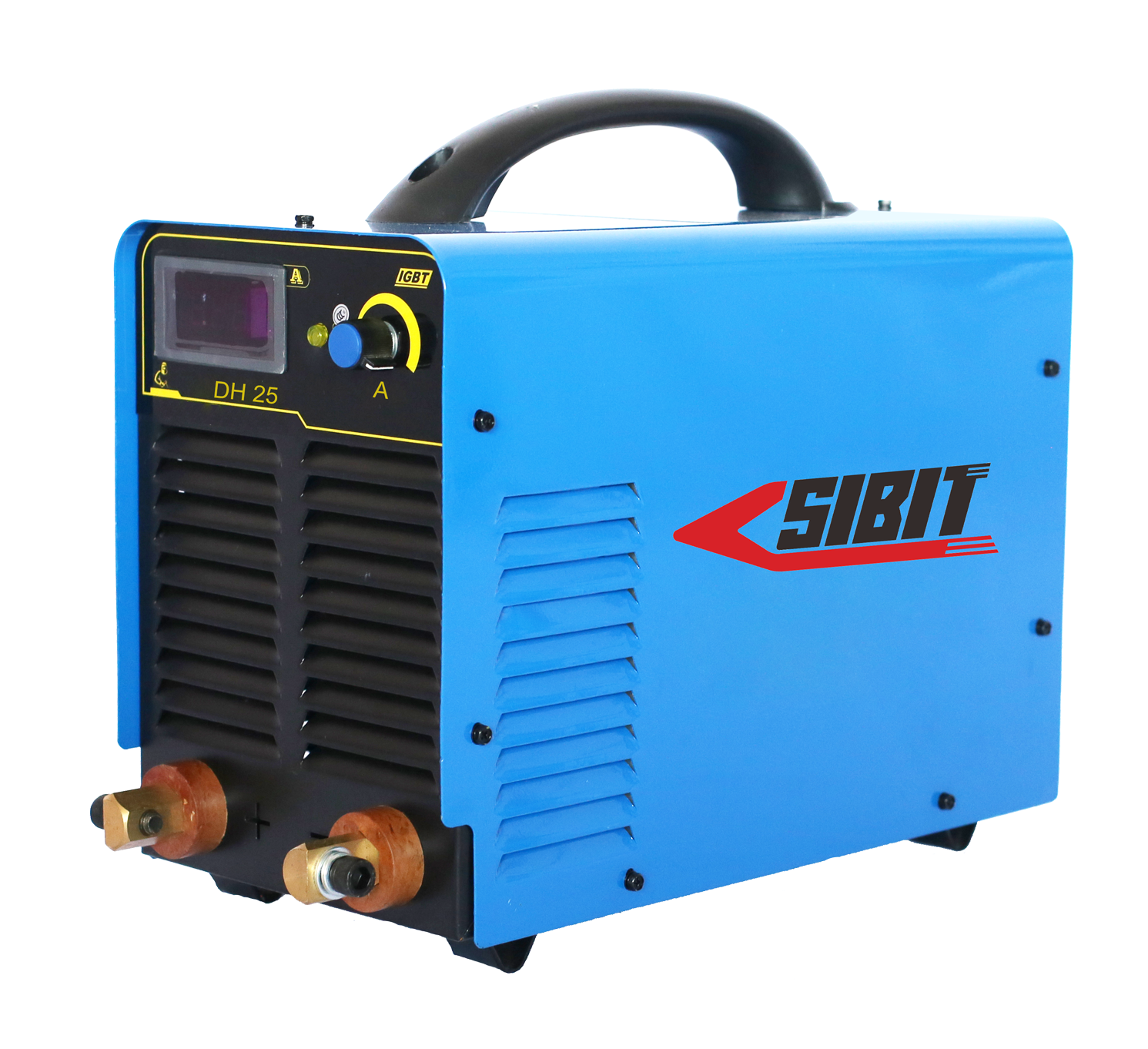

DH 25
IGBT Vertical Bar Welding & Arc Gouging System
Advanced IGBT vertical bar welding machine with 400A maximum output and 60% duty cycle. Features digital meter control, 100m extension wire support, arc gouging capability with 8mm carbon rods, and comprehensive protection for construction and steel structural projects.
Bar welding Joints
| Parameter | Unit | Specification |
|---|---|---|
| Input Characteristics | ||
| Input Voltage | V | 380V AC ±10% 3-Phase |
| Input Capacity | kVA | 26 |
| Output Characteristics | ||
| No-Load Output Voltage | V | 100 |
| Maximum Output Current | A | 400 |
| Performance Specifications | ||
| Duty Cycle | % | 60% |
| Core Technology | ||
| Inverter Technology | - | Advanced IGBT |
| Welding Capabilities | ||
| Steel Bar Diameter Range | mm | 8~25 |
| Welding Process | - | Vertical Bar Welding |
| Arc Gouging Compatible | mm | YES (8mm carbon rods) |
| System Features | ||
| Digital Meter | - | YES (Precise current display) |
| Extension Wire Support | m | Up to 100 |
| Required Clamp Size | - | SIZE 2 (for steel bars ≤28mm) |
| Recommended Flux | - | HJ431 |
| Enclosure/Standards/Approvals | ||
| Protection Class | IP | IP23S |
| Insulation Class | Grade | H |
| Physical Specifications | ||
| Dimensions (L × W × H) | mm | 434 × 171 × 304 |
| Net Weight | kg | 10 |
Product Overview
ADVANCED IGBT TECHNOLOGY · VERTICAL BAR WELDINGSpecially designed vertical bar welding machine featuring advanced IGBT inverter technology for industrial and heavy industrial use. Delivers reliable and durable performance with 400A maximum output current for welding steel bars 8-25mm in diameter, supports arc gouging with 8mm carbon rods, extension wire support up to 100 meters, digital meter for precise current control, and intelligent protection in a lightweight 10kg design for building constructions and steel structural projects.
Advanced IGBT: 400A for 25mm Steel Bar Welding
400A maximum output with advanced IGBT inverter technology—vertical bar welding for steel bars 8-25mm diameter, arc gouging with 8mm carbon rods, three-phase AC380V ±10% input, 26kVA input capacity, 60% duty cycle, digital meter for precise current display, extension wire support up to 100 meters, intelligent overload and overheat protection, SIZE 2 clamp compatibility, and HJ431 flux recommendation in a lightweight 10kg professional configuration.
Target Applications
Vertical steel butt welding for 25mm steel bars, building constructions, steel structural projects, construction and structural engineering.
Core Technology
Advanced IGBT inverter technology, 400A maximum output, 60% duty cycle, digital meter for precise current control, extension wire support up to 100 meters.
Protection Systems
Intelligent overload and overheat protection mechanisms, IP23S rating, Grade H insulation for safety and longevity.
Key Features
Advanced IGBT technology for vertical bar welding
Advanced IGBT Technology
Incorporates advanced IGBT inverter devices for enhanced performance, reliability, and consistent arc quality in vertical bar welding.
High Output Current
Delivers 400A maximum output current for efficient welding of steel bars 8-25mm in diameter with professional-grade performance.
Vertical Bar Welding
Specially designed for welding two pieces of 25mm steel vertically together, ideal for building constructions and steel structural projects.
Arc Gouging Capability
Supports arc gouging with 8mm carbon rods, adding versatility and expanding functionality for various industrial applications.
Extended Welding Area
Supports extension wires up to 100 meters, significantly increasing the welding area and operational flexibility on large construction sites.
Digital Meter
Allows for accurate presetting and display of welding current for precise control and consistent welding quality.
Intelligent Protection
Equipped with overload and overheat protection mechanisms to ensure safety, longevity, and reliable operation during demanding use.
Three-Phase Power
AC380V ±10% three-phase input with 26kVA input capacity provides robust power for heavy industrial bar welding applications.
60% Duty Cycle
60% duty cycle ensures reliable continuous operation for demanding vertical bar welding and construction applications.
Lightweight Design
10kg net weight with compact 434×171×304mm dimensions provides exceptional portability for various construction sites and projects.
SIZE 2 Clamp Compatibility
Requires SIZE 2 clamp applicable to steel bars ≤28mm, ensuring secure and reliable clamping for vertical bar welding operations.
HJ431 Flux Recommendation
Recommended HJ431 steel bar welding flux ensures optimal welding quality and consistent results in vertical bar welding applications.
IP23S Protection
Environmental protection with Grade H insulation ensures durability in construction and heavy industrial environments.
Professional Bar Welding
Built to last and widely applied in building constructions and steel structural projects with reliable and durable performance.
Summary
The DH 25 is a specially designed vertical bar welding machine featuring advanced IGBT inverter technology for industrial and heavy industrial use. Delivers 400A maximum output current for efficient welding of steel bars 8-25mm in diameter with 60% duty cycle. Ideal for welding two pieces of 25mm steel vertically together in building constructions and steel structural projects. Advanced IGBT inverter technology provides enhanced performance, reliability, and consistent arc quality. Supports arc gouging with 8mm carbon rods for added versatility. Digital meter allows accurate presetting and display of welding current for precise control. Extended welding area capability with extension wire support up to 100 meters significantly increases operational flexibility on large construction sites. Three-phase AC380V ±10% input with 26kVA input capacity provides robust power. 100V no-load output voltage. Intelligent overload and overheat protection mechanisms ensure safety and longevity. Requires SIZE 2 clamp applicable to steel bars ≤28mm with HJ431 steel bar welding flux recommendation. Lightweight 10kg design with compact 434×171×304mm dimensions provides exceptional portability. IP23S rating with Grade H insulation. Built to last and widely applied in vertical steel butt welding, construction and structural engineering, building constructions, and steel structural projects.
Advanced IGBT: 400A for 25mm Steel Bar Welding
Specially designed vertical bar welding machine with advanced IGBT inverter technology delivers 400A maximum output for steel bars 8-25mm diameter, arc gouging with 8mm carbon rods, extension wire support up to 100 meters, digital meter for precise control, intelligent protection, and SIZE 2 clamp compatibility in a lightweight 10kg design for building constructions and steel structural projects.
