Product Name:
CUT 120 Plasma Cutter

Model #:
CUT 120

Product Overview:


The CUT 120 is a three-phase air plasma cutter designed for industrial and heavy industrial applications. It utilizes advanced IGBT module technology, enabling it to operate effectively in challenging environments with a high duty cycle. This machine delivers precise, smooth cuts, making it suitable for materials such as low carbon steel, stainless steel, and aluminum.

Pilot arc plasma cutting machines from Sibitweld
Large black copyright symbol on a white background.

Why Choose the CUT 120?

The CUT 120 combines advanced technology, versatility, and robust performance, making it an excellent choice for professionals in demanding industrial environments. Its ability to deliver precise cuts across various metals ensures a versatile and efficient cutting experience.

Sibitweld plasma 120 cutting machine

Applications:

  • Industrial Fabrication: Effective for large-scale industrial fabrication and metalworking projects.

  • Heavy Industrial Applications: Suitable for heavy-duty cutting tasks in industrial settings.

  • Automated Cutting Processes: Ideal for CNC-controlled cutting operations requiring precision and consistency.

Key Features:

  1. Advanced IGBT Module Technology: Incorporates advanced IGBT inverter devices for enhanced performance and efficiency.

  2. Intelligent Protection: Equipped with overload and overheat protection mechanisms to ensure safety and longevity.

  3. Pilot Arc Start System: Provides smooth arc initiation with high-frequency control for precise cuts.

  4. Digital Meter: Allows for accurate presetting and display of cutting current for precise control.

  5. Wide Input Range: Capable of handling input power fluctuations up to ±20%, ensuring stable operation.

  6. VRD (Voltage Reduction Device): Enhances safety during operation by reducing open-circuit voltage.

  7. Competitive Cutting Thickness: Recommended clean cut thickness of 25 mm and maximum cut thickness of 45 mm.

  8. Rapid Arc Strike: Ensures quality narrow cutting and excellent travel speed for efficient operation.

Accessories

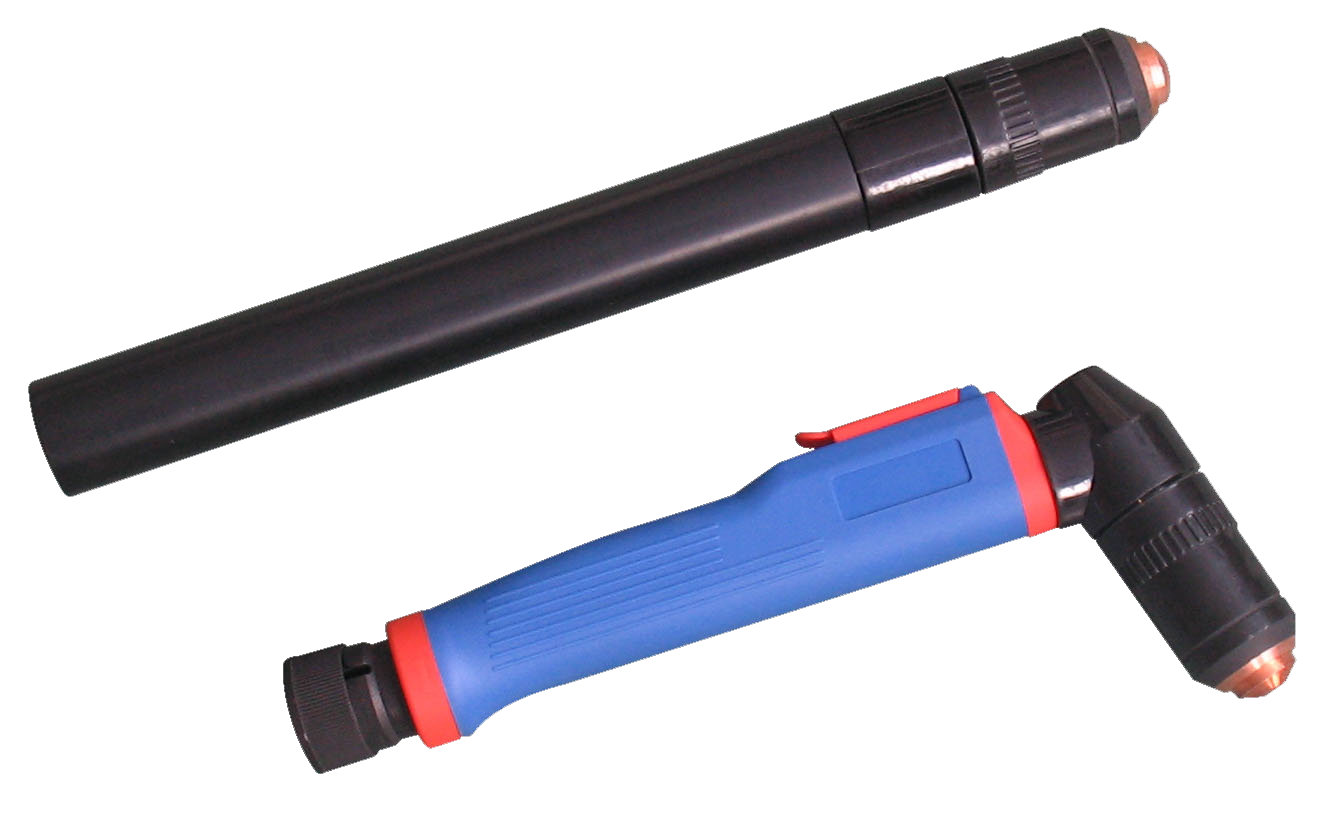

  • CUT gun & Regulator

  • Cut gun consumables

  • 16 mm2 Pure Copper Cable; Cable Length Customizable

Technical Specifications:

Parameter Value
Input Voltage AC380V±10% 3PH
Input Power (KVA) 20
Max Output Current (A) 120
Duty Cycle @ 40°C 120A@60%
No Load Voltage (V) 340
Hot Start YES
Protection & Insulation IP 23S & H
Clean Cut 25mm
Max Cut 45mm
Dimensions (mm) 535x275x470
Weight (kg) 24 kg
