Product Name:
CUT 100 Plasma Cutter

Model #:
CUT 100

Product Overview:


The CUT 100 is a three-phase air plasma cutter designed for light industrial and industrial applications. It utilizes advanced IGBT module technology, enabling it to operate effectively in challenging environments with a high duty cycle. This machine delivers precise, smooth cuts, making it suitable for materials such as low carbon steel, stainless steel, and aluminum.

Sibitweld pilot arc plasma cutters
The image shows a large, black copyright symbol on a white background.

Why Choose the CUT 100?

The CUT 100 combines advanced technology, versatility, and robust performance, making it an excellent choice for professionals in demanding industrial environments. Its ability to deliver precise cuts across various metals ensures a versatile and efficient cutting experience.

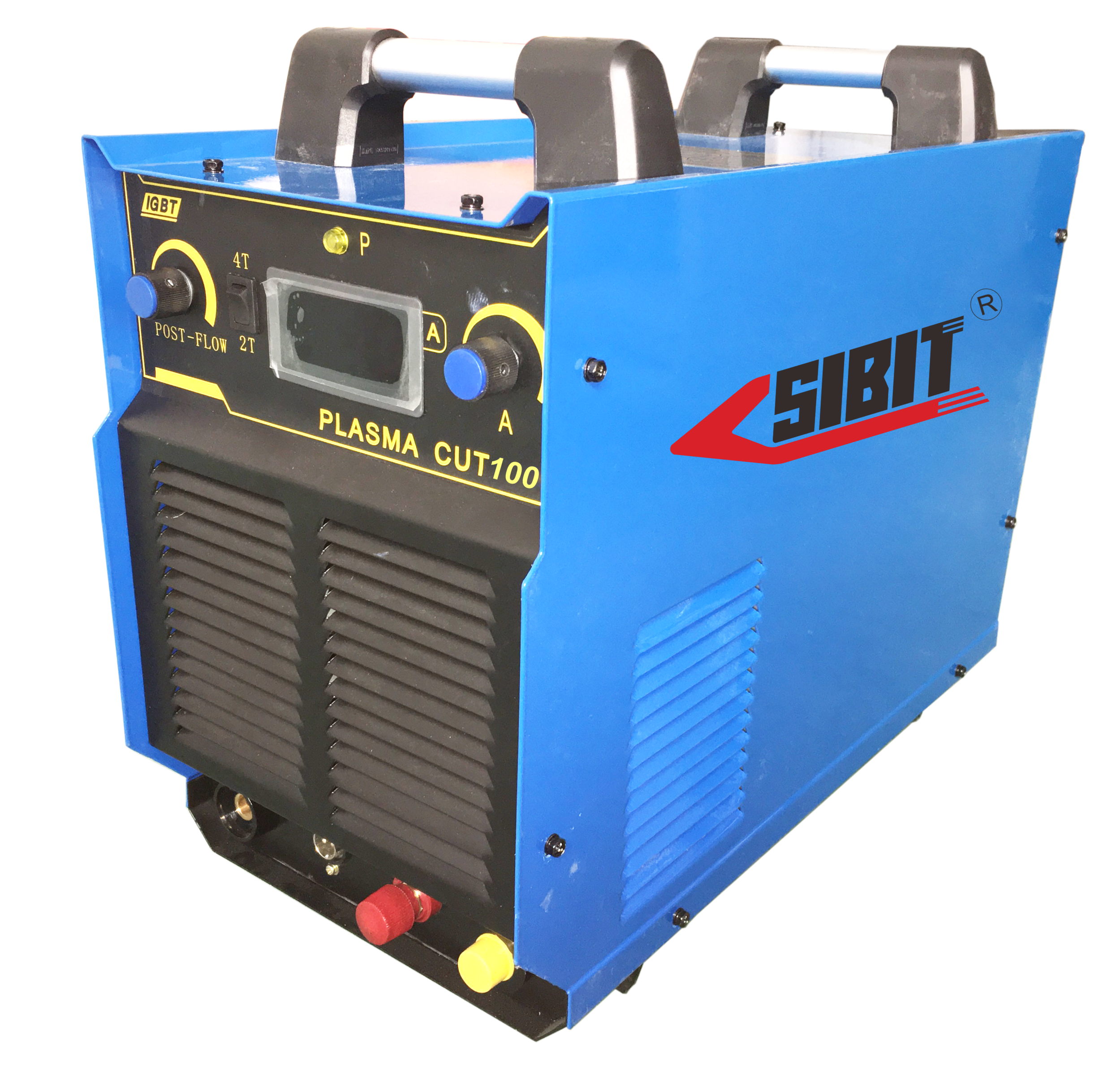

Blue plasma cutter machine labeled SIBIT PLASMA CUT 100 with controls, ventilation grilles, and a handle on top.

Applications:

  • Light Industrial Fabrication: Effective for small-scale industrial fabrication and metalworking projects.

  • Industrial Applications: Suitable for heavy-duty cutting tasks in industrial settings.

  • Automated Cutting Processes: Ideal for CNC-controlled cutting operations requiring precision and consistency.

Key Features:

  1. Advanced IGBT Module Technology: Incorporates advanced IGBT inverter devices for enhanced performance and efficiency.

  2. Intelligent Protection: Equipped with overload and overheat protection mechanisms to ensure safety and longevity.

  3. Pilot Arc Start System: Provides smooth arc initiation with high-frequency control for precise cuts.

  4. Digital Meter: Allows for accurate presetting and display of cutting current for precise control.

  5. Wide Input Range: Capable of handling input power fluctuations up to ±20%, ensuring stable operation.

  6. Competitive Cutting Thickness: Recommended clean cut thickness of 20 mm and maximum cut thickness of 35 mm.

  7. Rapid Arc Strike: Ensures quality narrow cutting and excellent travel speed for efficient operation.

ACCESSORIES

  • CUT gun & Regulator

  • Cut gun consumables

  • 16 mm2 Pure Copper Cable; Cable Length Customizable

Technical Specifications:

Parameter Value
Input Voltage AC380V±10% 3PH
Input Power (KVA) 15.7
Max Output Current (A) 100
Duty Cycle @ 40°C 100A@60%
No Load Voltage (V) 350
Hot Start YES
Protection & Insulation IP 23S & H
Clean Cut 20mm
Max Cut 35mm
Dimensions (mm) 535x275x470
Weight (kg) 24 kg
