Product Name:
CUT 80YN Plasma Cutter

Model #:
CUT 80YN

Product Overview:


The CUT 80YN is a professional-grade air plasma cutter equipped with a built-in air compressor, designed for household, maintenance, and heavy industrial applications. Its portable design allows for easy transportation to any job site, enabling plasma cutting anywhere, anytime. The machine delivers smooth, fast, and precise cuts, making it an ideal solution for cutting low carbon steel, stainless steel, and aluminum.

Close-up of two large black copyright symbols on a white background.

Why Choose the CUT 80YN?

The CUT 80YN combines portability, advanced technology, and user-friendly features, making it an excellent choice for both professionals and hobbyists. Its built-in air compressor and ability to deliver precise cuts across various metals ensure a versatile and efficient cutting experience.

Air Compressor Icon.png

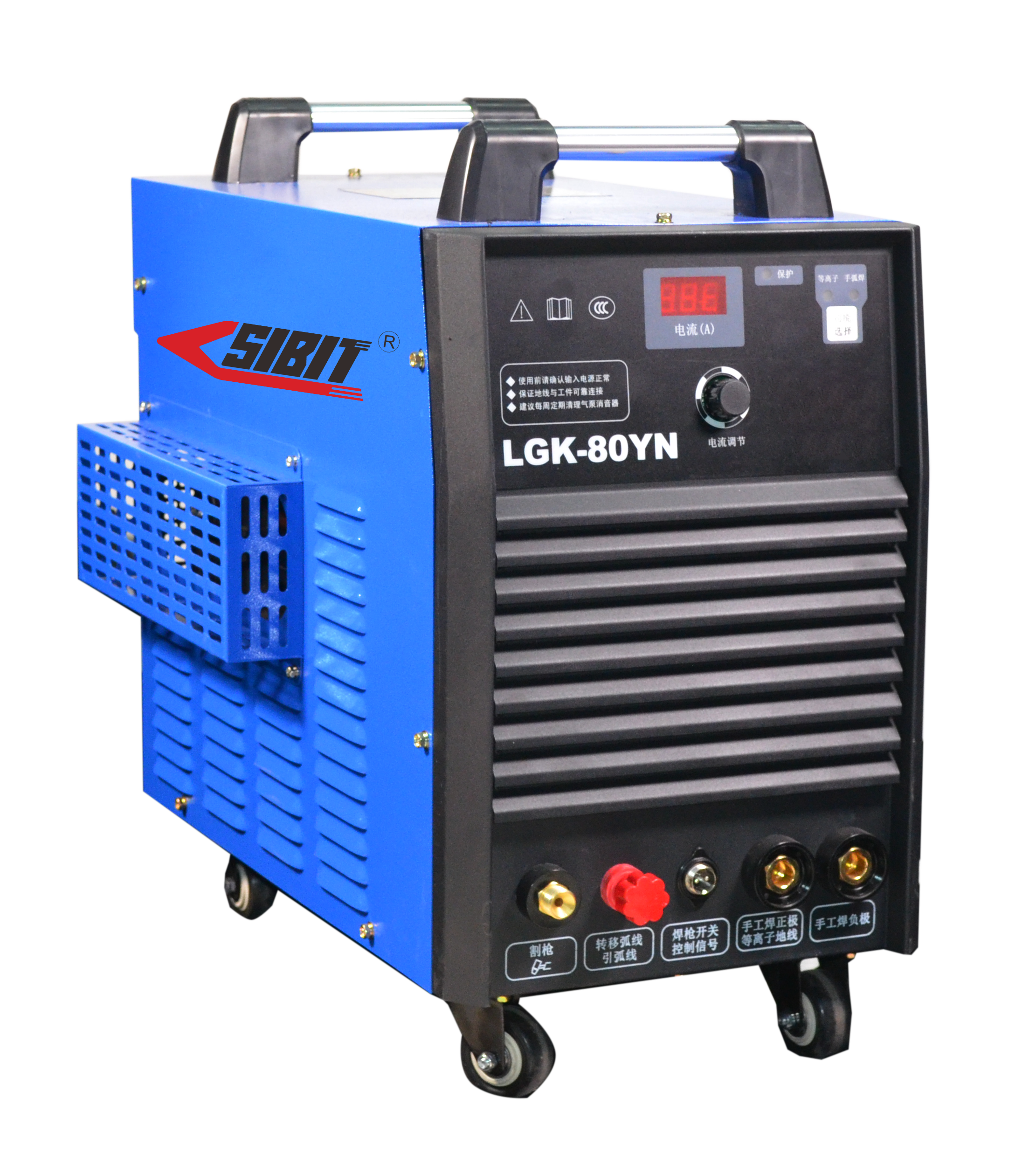

Blue and black industrial welding machine with control panel, vents, and four wheels, labeled LGK-80YN by SIBIT.

Applications:

  • Household Projects: Ideal for DIY enthusiasts and home maintenance tasks requiring metal cutting.

  • Maintenance Work: Suitable for repair and maintenance tasks in workshops and garages.

  • Heavy Industrial Fabrication: Effective for large-scale industrial fabrication and metalworking projects.

Key Features:

  1. Built-in Air Compressor: Eliminates the need for an external air supply, enhancing portability and convenience.

  2. Advanced IGBT Module Technology: Utilizes advanced IGBT inverter devices for improved performance and efficiency.

  3. Intelligent Protection: Equipped with overload and overheat protection mechanisms to ensure safety and longevity.

  4. Touch Start System: Provides smooth arc starting with high-frequency control for precise cuts.

  5. Digital Meter: Allows for accurate presetting and display of cutting current for precise control.

  6. Wide Input Range: Capable of handling input power fluctuations up to ±20%, ensuring stable operation.

  7. Competitive Cutting Thickness: Recommended clean cut thickness of 15 mm and maximum cut thickness of 25 mm.

  8. Rapid Arc Strike: Ensures quality narrow cutting and excellent travel speed for efficient operation.

Standard Accessories:

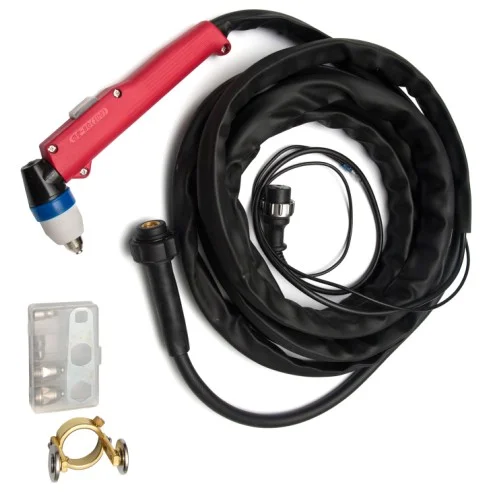

  • P80 Plasma Cutting Torch

  • Cut gun consumables

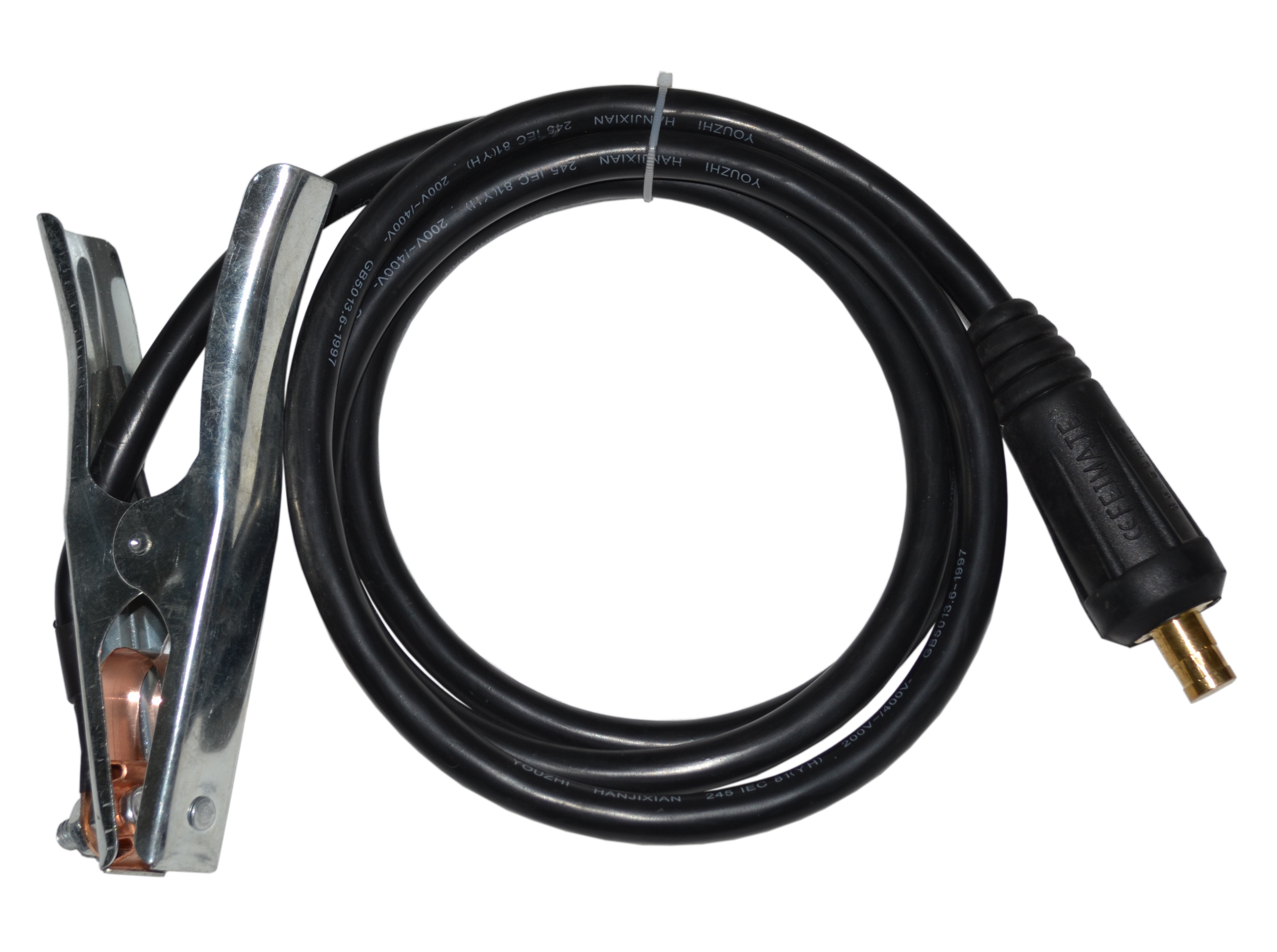

  • Earth Clamp with 16 mm2 Pure Copper Cable; Cable Length Customizable

Technical Specifications:

Parameter Value
Input Voltage AC 380V±10% 3PH
Input Power (KVA) 5.70
Max Output Current (A) CUT: 65 amps & MMA: 160 amps
Duty Cycle @ 40°C 65A @ 60% (Power Source only)
No Load Voltage (V) 344
Hot Start YES
Protection & Insulation IP 23S & H
Clean Cut 15 mm
Max Cut 25 mm
Dimensions (mm) 340*335*310
Weight (kg) 21kg
