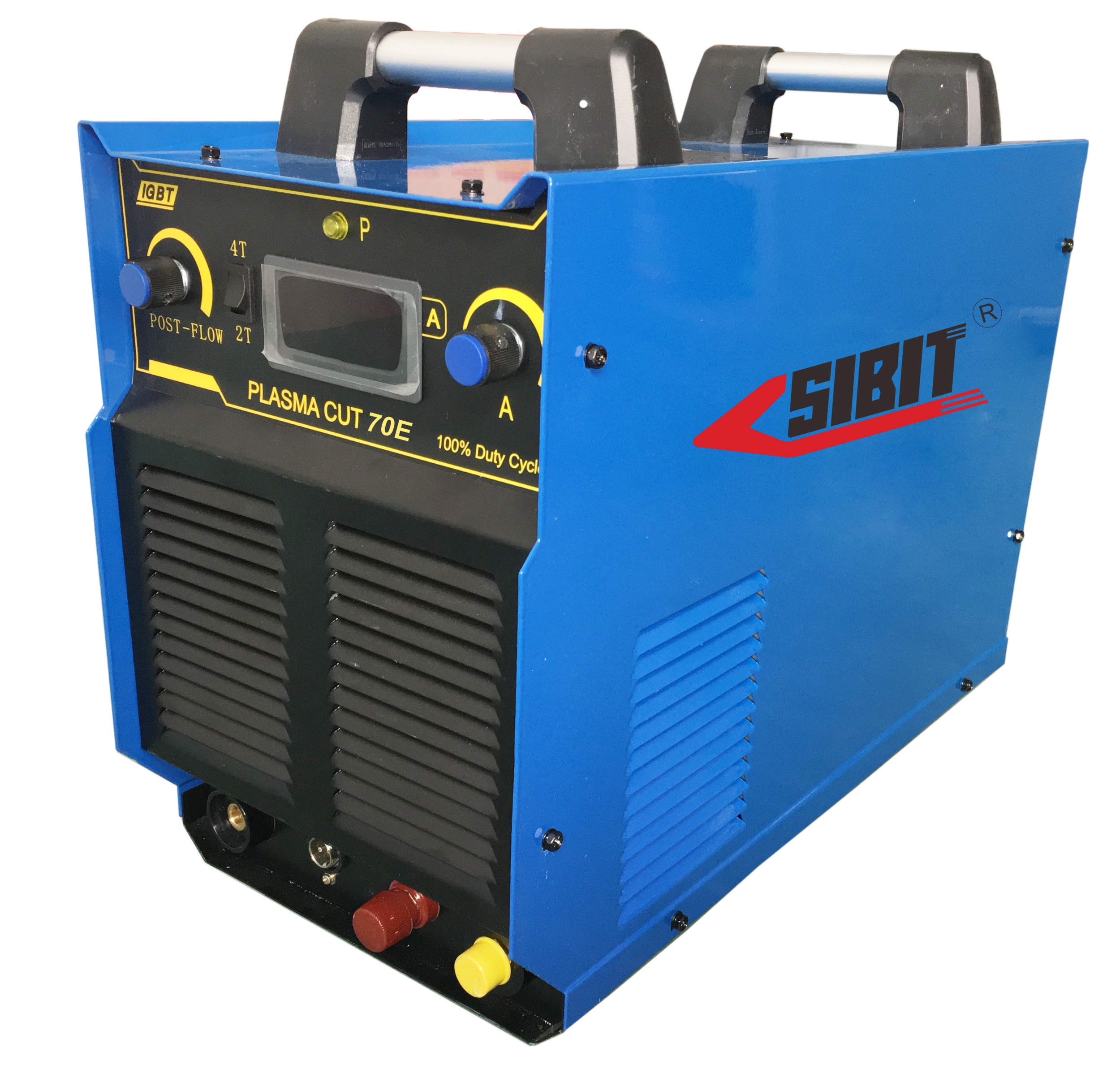

CUT 70E
Three-Phase Industrial CNC Plasma Cutter
Industrial three-phase plasma cutter with 100% duty cycle at 70A for heavy-duty CNC automation. Features pilot arc start, ±20% voltage tolerance, 16mm² output connection, and 15mm clean cut capacity for demanding industrial fabrication and automated cutting operations.
| Parameter | Unit | Specification |
|---|---|---|
| Input Characteristics | ||
| Input Voltage | V | 3-Phase 380V AC ±10% |
| Input Power | kVA | 9.37 |
| Output Characteristics | ||
| No-Load Output Voltage | V | 360 |
| Maximum Output Current | A | 70 |
| Performance Specifications | ||
| Duty Cycle (at 40°C) | % | 70A @ 100% |
| Hot Start | - | YES |
| Core Technology | ||
| Arc Start System | - | Pilot Arc Start (High-frequency control) |
| Inverter Technology | - | Advanced IGBT |
| Cutting Capabilities | ||
| Clean Cut | mm | 15 |
| Maximum Cut | mm | 25 |
| System Features | ||
| Digital Meter | - | YES (Precise current display) |
| Wide Input Voltage Range | - | YES (±20% tolerance) |
| CNC Cutting Compatible | - | YES (100% duty cycle for automation) |
| Output Connection | mm² | 16 |
| Enclosure/Standards/Approvals | ||
| Protection Class | IP | IP23S |
| Insulation Class | Grade | H |
| Physical Specifications | ||
| Dimensions (L × W × H) | mm | 480 × 230 × 420 |
| Net Weight | kg | 21 |
Product Overview
THREE-PHASE CNC PLASMA CUTTING MACHINEAdvanced three-phase air plasma cutter designed for CNC cutting systems and industrial applications. Delivers 70A output with 100% duty cycle for uninterrupted automation, pilot arc technology, clean cuts up to 15mm, and maximum capacity of 25mm in a portable 21kg rugged design.
Three-Phase CNC Performance: 70A @ 100% Duty Cycle
70A output at 100% duty cycle (40°C) with pilot arc start system—designed for full-capacity automatic CNC cutting without interruption, three-phase AC380V power, high-frequency control for non-contact cutting, clean cutting up to 15mm, maximum capacity 25mm, digital meter, and 16mm² output connection in a 21kg portable configuration.
Target Applications
CNC cutting systems, light industrial fabrication, heavy-duty industrial applications, automated cutting processes requiring precision and consistency.
Core Technology
Pilot arc start (high-frequency control), advanced IGBT inverter, 100% duty cycle for CNC, digital meter, AC380V ±10%, 9.37kVA input, 16mm² output.
Protection Systems
Intelligent overload and overheat protection. IP23S rating, Grade H insulation for continuous three-phase CNC operation.
Key Features
100% duty cycle three-phase for CNC automation
100% Duty Cycle
70A at 100% duty cycle (40°C) sustains full capacity for automatic CNC cutting systems without interruption for continuous production.
CNC Cutting Compatible
Designed specifically for CNC-controlled cutting operations with full-capacity performance enabling automated precision cutting.
Three-Phase Power
AC380V three-phase input delivers 70A output with 9.37kVA power for superior industrial CNC cutting performance and efficiency.
Pilot Arc Start System

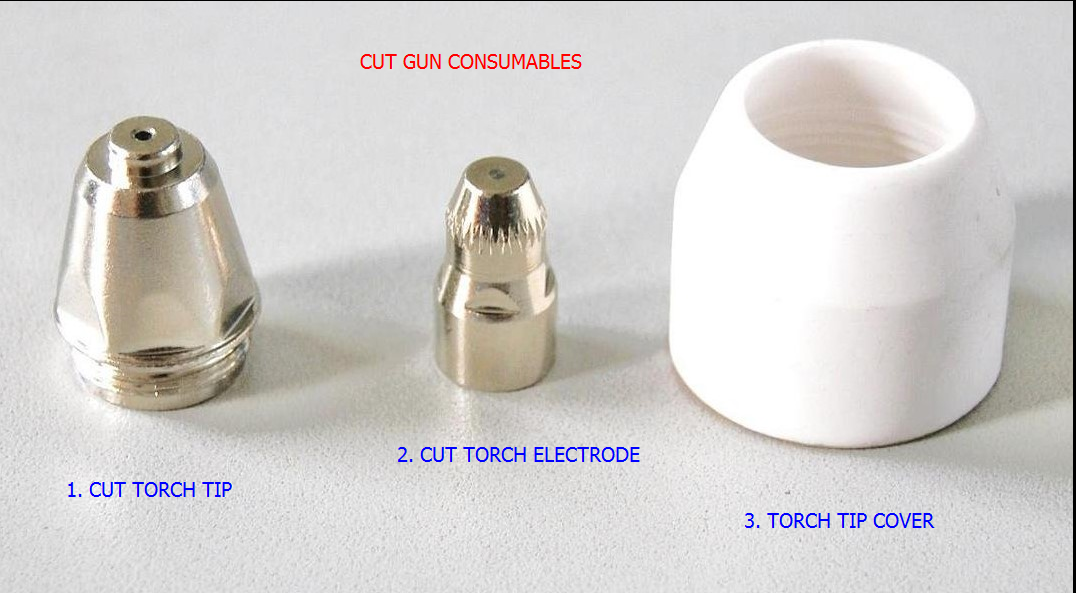

High-frequency control for smooth non-contact arc initiation preserves workpiece quality and extends consumable life in automated systems.
Advanced IGBT Technology
IGBT inverter devices deliver enhanced efficiency, superior performance, and energy savings for continuous three-phase CNC operations.
Digital Meter Display
Precise presetting and display of cutting current enables accurate adjustments for consistent automated cutting performance.
Superior Cutting Capacity
Clean cut up to 15mm, maximum capacity 25mm for various metal thicknesses with quality narrow cutting and excellent travel speed.
Wide Input Voltage Range
AC380V ±10% tolerance handles power fluctuations ensuring consistent three-phase CNC performance with unstable supplies.
Rapid Arc Strike
Fast arc initiation with excellent travel speed enhances productivity for efficient automated three-phase cutting operations.
16mm² Output Connection
Heavy-duty 16mm² pure copper cable output connection ensures reliable power delivery for demanding CNC applications.
Intelligent Protection
Overload and overheat protection mechanisms ensure safety and extend machine longevity during continuous three-phase CNC operations.
Hot Start Function
Reliable arc initiation ensures consistent starting performance across diverse automated cutting conditions and materials.
Rugged Construction
Durable components and robust design withstand continuous three-phase CNC operations for reliable long-term performance.
IP23S Protection
Environmental protection with Grade H insulation ensures durability during continuous automated three-phase cutting operations.
Summary
The CUT 70E is an advanced three-phase air plasma cutter with pilot arc technology delivering 70A output at 100% duty cycle (40°C) for CNC cutting systems and industrial applications. 100% duty cycle sustains full capacity for automatic CNC cutting without interruption enabling continuous production. Three-phase AC380V input provides superior power delivery with 9.37kVA capacity. Pilot arc start system with high-frequency control enables smooth non-contact cutting that preserves workpiece quality and extends consumable life. Features clean cutting up to 15mm with maximum capacity of 25mm for superior automated cutting performance. Advanced IGBT inverter technology provides enhanced efficiency and energy savings. Digital meter enables precise current presetting and display for accurate adjustments. Wide input voltage range (AC380V ±10%) handles power fluctuations for consistent three-phase CNC performance. Rapid arc strike with excellent travel speed enhances productivity. 16mm² output connection with pure copper cable ensures reliable power delivery. Hot start function for reliable arc initiation. Intelligent overload and overheat protection ensures safety during continuous operations. Rugged construction withstands continuous three-phase CNC operations. IP23S rating with Grade H insulation. Portable 21kg design (480×230×420mm). 360V no-load output voltage. Suitable for CNC cutting systems, light industrial fabrication, heavy-duty industrial applications, and automated cutting processes requiring precision and consistency.
Three-Phase CNC Performance: 70A @ 100% Duty Cycle
Three-phase CNC-compatible plasma cutter delivers 70A output at 100% duty cycle for uninterrupted automation, pilot arc start, clean cuts up to 15mm, maximum capacity 25mm, digital meter, wide voltage range (±10%), 16mm² output connection, and intelligent protection in a rugged 21kg design for continuous three-phase CNC cutting operations.
