CUT 60 - Hero Section

Pilot Arc Technology

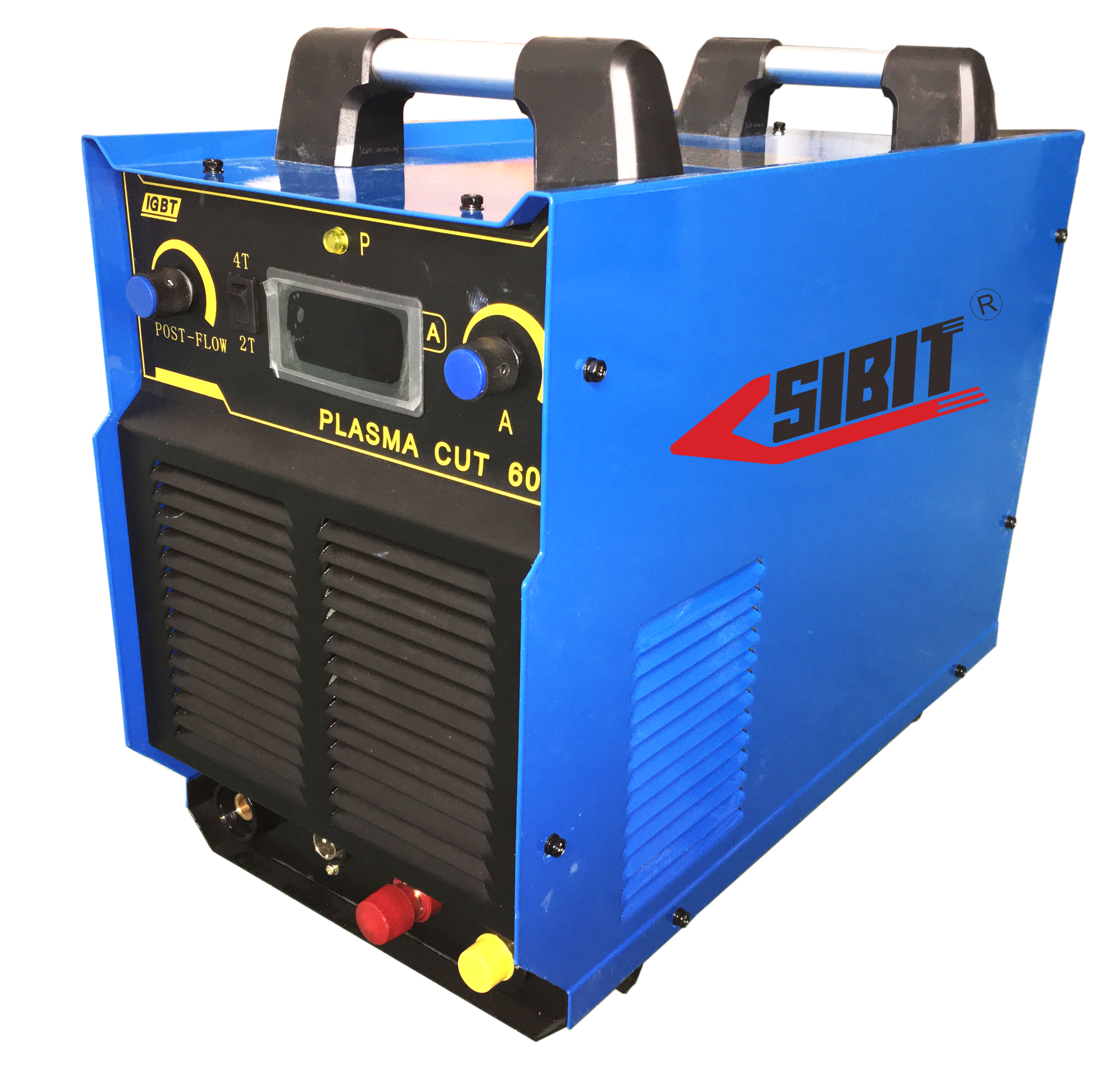

CUT 60

Single-Phase Industrial Plasma Cutter

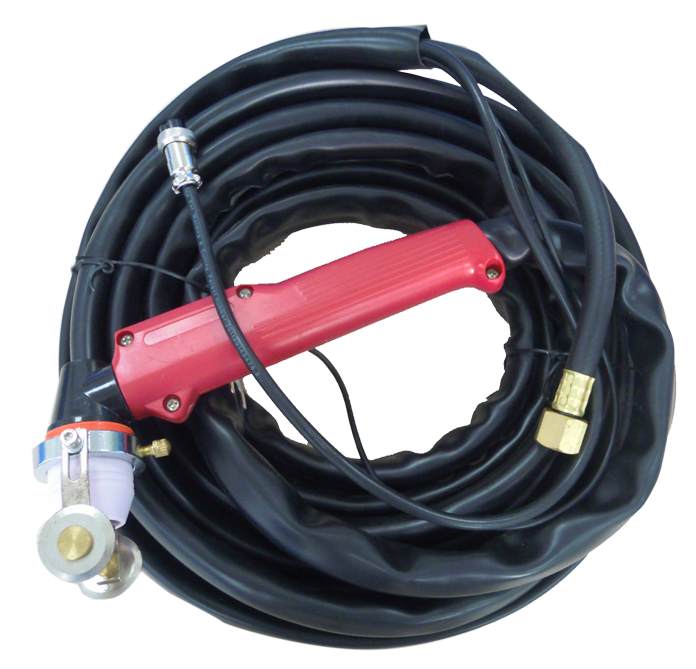

Industrial-grade plasma cutter with pilot arc start and 60A output at 60% duty cycle. Delivers 15mm clean cut and 25mm maximum cut capacity with digital meter control, P80 torch system, and ±10% voltage tolerance for demanding fabrication applications.

60A

Max Output

25mm

Max Cut

18kg

Net Weight

CUT 60 Technical Specifications

        CUT 60 Technical Specifications

            Parameter
            Unit
            Specification

            Input Characteristics

            Input Voltage
            V
            220V AC ±10% 1-Phase

            Input Power
            kVA
            7.73

            Output Characteristics

            No-Load Output Voltage
            V
            360

            Maximum Output Current
            A
            60

            Performance Specifications

            Duty Cycle (at 40°C)
            %
            60A @ 60%

            Hot Start
            -
            YES

            Core Technology

            Arc Start System
            -
            Pilot Arc Start (High-frequency control)

            Inverter Technology
            -
            Advanced IGBT

            Cutting Capabilities

            Clean Cut
            mm
            15

            Maximum Cut
            mm
            25

            System Features

            Digital Meter
            -
            YES (Precise current display)

            Wide Input Voltage Range
            -
            YES (±10% tolerance)

            Enclosure/Standards/Approvals

            Protection Class
            IP
            IP23S

            Insulation Class
            Grade
            H

            Physical Specifications

            Dimensions (L × W × H)
            mm
            480 × 230 × 420

            Net Weight
            kg
            18

CUT 60 Technical Specifications
Parameter	Unit	Specification
Input Characteristics
Input Voltage	V	220V AC ±10% 1-Phase
Input Power	kVA	7.73
Output Characteristics
No-Load Output Voltage	V	360
Maximum Output Current	A	60
Performance Specifications
Duty Cycle (at 40°C)	%	60A @ 60%
Hot Start	-	YES
Core Technology
Arc Start System	-	Pilot Arc Start (High-frequency control)
Inverter Technology	-	Advanced IGBT
Cutting Capabilities
Clean Cut	mm	15
Maximum Cut	mm	25
System Features
Digital Meter	-	YES (Precise current display)
Wide Input Voltage Range	-	YES (±10% tolerance)
Enclosure/Standards/Approvals
Protection Class	IP	IP23S
Insulation Class	Grade	H
Physical Specifications
Dimensions (L × W × H)	mm	480 × 230 × 420
Net Weight	kg	18

CUT 60 Pilot Arc Plasma Cutting Machine | Industrial Plasma Cutter

Product Overview

PILOT ARC PLASMA CUTTING MACHINE

Advanced single-phase air plasma cutter for light industrial and industrial applications. Delivers 60A output with pilot arc technology, clean cuts up to 15mm, and maximum capacity of 25mm in a portable 18kg rugged design for superior performance across diverse job sites.

Industrial Performance: 60A @ 60% Duty Cycle

60A output at 60% duty cycle (40°C) with pilot arc start system—high-frequency control for non-contact cutting, clean cutting up to 15mm, maximum capacity 25mm, digital meter, wide voltage range (AC220V ±10%), and rapid arc striking in an 18kg portable configuration for industrial fabrication.

Target Applications

Light industrial fabrication, automotive repair, construction, structural steel cutting, metal art and custom designs.

Core Technology

Pilot arc start (high-frequency control), advanced IGBT inverter, digital meter, wide voltage range (±10%), 7.73kVA input.

Protection Systems

Intelligent overload and overheat protection. IP23S rating, Grade H insulation for rugged performance.

Key Features

Advanced pilot arc technology for industrial cutting

Pilot Arc Start System

High-frequency control for smooth non-contact arc initiation preserves workpiece quality and extends consumable life.

Advanced IGBT Technology

IGBT inverter devices deliver enhanced efficiency, superior performance, and energy savings for industrial applications.

Digital Meter Display

Precise presetting and display of cutting current enables accurate adjustments for consistent industrial cutting performance.

Superior Cutting Capacity

Clean cut up to 15mm, maximum capacity 25mm for various metal thicknesses with quality narrow cutting and excellent travel speed.

Wide Input Voltage Range

AC220V ±10% tolerance handles power fluctuations ensuring consistent performance with unstable power supplies and generators.

Rapid Arc Striking

Fast arc initiation with excellent travel speed enhances productivity for efficient industrial cutting operations.

Intelligent Protection

Overload and overheat protection mechanisms ensure safety, prevent damage, and extend machine longevity in demanding environments.

Hot Start Function

Reliable arc initiation ensures consistent starting performance across diverse cutting conditions and materials.

Rugged Construction

Durable components and robust design withstand tough industrial environments for reliable long-term performance.

Portable Design

18kg configuration with 480×230×420mm dimensions enables easy transport for various job sites and workshops.

60% Duty Cycle

60A at 60% duty cycle (40°C) provides reliable performance for extended industrial cutting operations.

IP23S Protection

Environmental protection with Grade H insulation ensures durability in light industrial and industrial conditions.

Summary

The CUT 60 is an advanced single-phase air plasma cutter with pilot arc technology delivering 60A output at 60% duty cycle (40°C) for light industrial and industrial applications. Pilot arc start system with high-frequency control enables smooth non-contact cutting that preserves workpiece quality and extends consumable life. Features clean cutting up to 15mm with maximum capacity of 25mm for superior cutting performance. Advanced IGBT inverter technology provides enhanced efficiency and energy savings. Digital meter enables precise current presetting and display for accurate adjustments. Wide input voltage range (AC220V ±10%) handles power fluctuations for consistent performance with unstable supplies. Rapid arc striking with excellent travel speed enhances productivity. Hot start function for reliable arc initiation. Intelligent overload and overheat protection ensures safety and longevity. Rugged construction withstands tough industrial environments. IP23S rating with Grade H insulation. Portable 18kg design (480×230×420mm) for easy transport. 7.73kVA input power, 360V no-load output voltage. Suitable for light industrial fabrication, automotive repair, construction, structural steel cutting, and metal art applications.

Industrial Performance: 60A @ 60% Duty Cycle

Advanced plasma cutter with pilot arc start delivers 60A output, clean cuts up to 15mm, maximum capacity 25mm, digital meter, wide voltage range (±10%), rapid arc striking, and intelligent protection in a rugged 18kg portable design for industrial applications.
