Product Name:

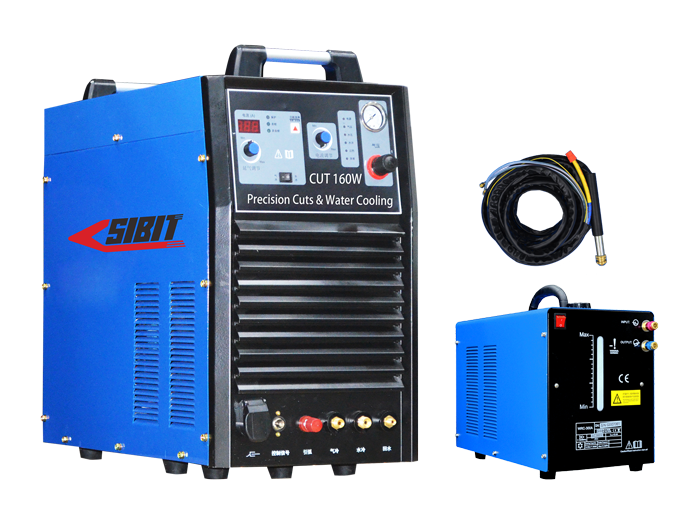

CUT 160W Plasma Cutter

Model #:
CUT 160W

Product Overview:


The CUT 160W is a high-performance, water-cooled air plasma cutter designed for heavy industrial applications. It features advanced IGBT and diode module technology, ensuring exceptional performance in demanding environments with a 100% duty cycle. This machine delivers precise, smooth cuts, making it suitable for materials such as low carbon steel, stainless steel, and aluminum.

The image shows a large printed logo with the letter 'C' followed by a smaller letter 'e' inside a circle, both in black on a white background.

Why Choose the CUT 160W?

The CUT 160W combines advanced technology, water-cooled efficiency, and robust performance, making it an excellent choice for professionals in demanding industrial environments. Its ability to deliver precise cuts across various metals ensures a versatile and efficient cutting experience.

A red commercial refrigerator with glass doors, shelves, and food inside, situated in a kitchen or grocery setting.
Pilot arc plasma cutting machines from Sibitweld

Applications:

  • Heavy Industrial Fabrication: Effective for large-scale industrial fabrication and metalworking projects.

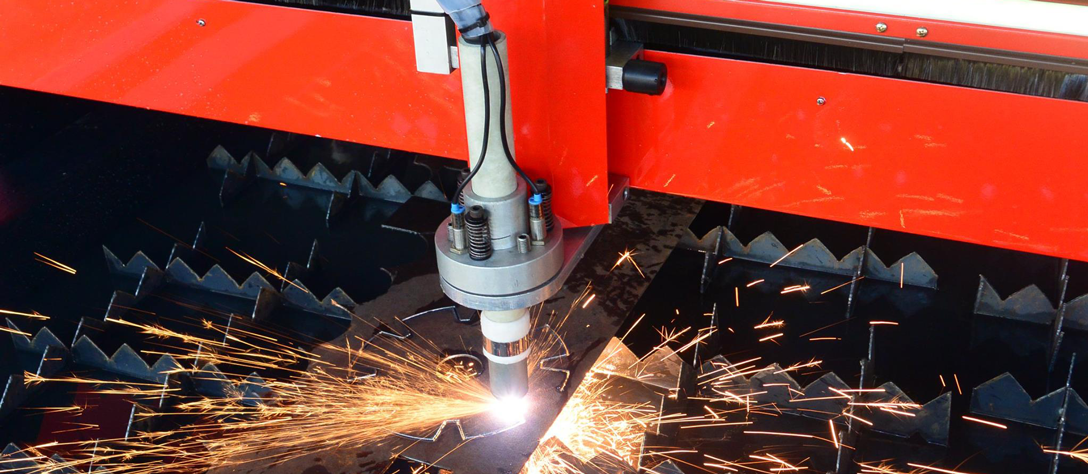

  • Automated Cutting Processes: Ideal for CNC-controlled cutting operations requiring precision and consistency.

  • Gouging Applications: Suitable for metal removal and gouging tasks in industrial settings.

Key Features:

  1. Advanced IGBT and Diode Module Technology: Incorporates advanced inverter devices for enhanced performance and efficiency.

  2. Intelligent Protection: Equipped with overload and overheat protection mechanisms to ensure safety and longevity.

  3. Pilot Arc Start System: Provides smooth arc initiation with high-frequency control for precise cuts.

  4. Digital Meter: Allows for accurate presetting and display of cutting current for precise control.

  5. Wide Input Range: Capable of handling input power fluctuations up to ±10%, ensuring stable operation.

  6. Water Cooling System: Enhances performance and extends consumable life by maintaining optimal operating temperatures.

  7. Competitive Cutting Thickness: Recommended clean cut thickness of 40 mm and maximum cut thickness of 50 mm.

  8. Rapid Arc Strike: Ensures quality narrow cutting and excellent travel speed for efficient operation.

Standard Accessories:

  • 10m Cutting Torch: High-quality torch for optimal performance.

  • 10L Water Tank: Integral part of the water cooling system to maintain optimal operating temperatures.

  • Optional Plasma Gouging Torches: Available for enhanced versatility in gouging applications.

Technical Specifications:

Parameter Value
Input Voltage AC380V±10% 3PH
Input Power (KVA) 33
Max Output Current (A) 160
Duty Cycle @ 40°C 160 A @ 100%
No Load Voltage (V) 315
Protection & Insulation IP 21 & F
Clean Cut 40 mm
Dimensions (mm) 638x342x644
Weight (kg) 45 kg
