Product Name:

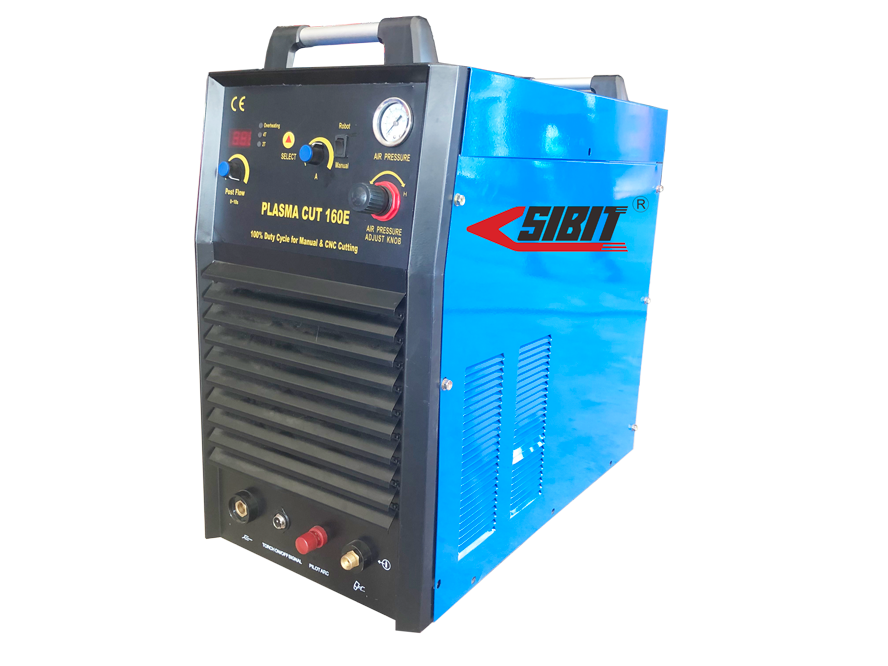

CUT 160E Plasma Cutter

Model #:
CUT 160E

Product Overview:


The CUT 160E is a three-phase air plasma cutter designed for heavy industrial applications. It utilizes advanced IGBT module technology, enabling it to operate effectively in challenging environments with a 100% duty cycle. This machine delivers precise, smooth cuts, making it suitable for materials such as low carbon steel, stainless steel, and aluminum.

The image contains a large, black icon with the Euro currency symbol (€) on a transparent background.
Pilot arc plasma cutting machines from Sibitweld
Close-up of an electrical circuit breaker with a red switch label.

Why Choose the CUT 160E?

The CUT 160E combines advanced technology, versatility, and robust performance, making it an excellent choice for professionals in demanding industrial environments. Its ability to deliver precise cuts across various metals ensures a versatile and efficient cutting experience.


Applications:

  • Heavy Industrial Fabrication: Effective for large-scale industrial fabrication and metalworking projects.

  • Automated Cutting Processes: Ideal for CNC-controlled cutting operations requiring precision and consistency.

Key Features:

  1. Advanced IGBT Module Technology: Incorporates advanced IGBT inverter devices for enhanced performance and efficiency.

  2. Intelligent Protection: Equipped with overload and overheat protection mechanisms to ensure safety and longevity.

  3. Pilot Arc Start System: Provides smooth arc initiation with high-frequency control for precise cuts.

  4. Digital Meter: Allows for accurate presetting and display of cutting current for precise control.

  5. Wide Input Range: Capable of handling input power fluctuations up to ±20%, ensuring stable operation.

  6. Competitive Cutting Thickness: Recommended clean cut thickness of 40 mm and maximum cut thickness of 50 mm.

  7. Rapid Arc Strike: Ensures quality narrow cutting and excellent travel speed for efficient operation.

Accessories:

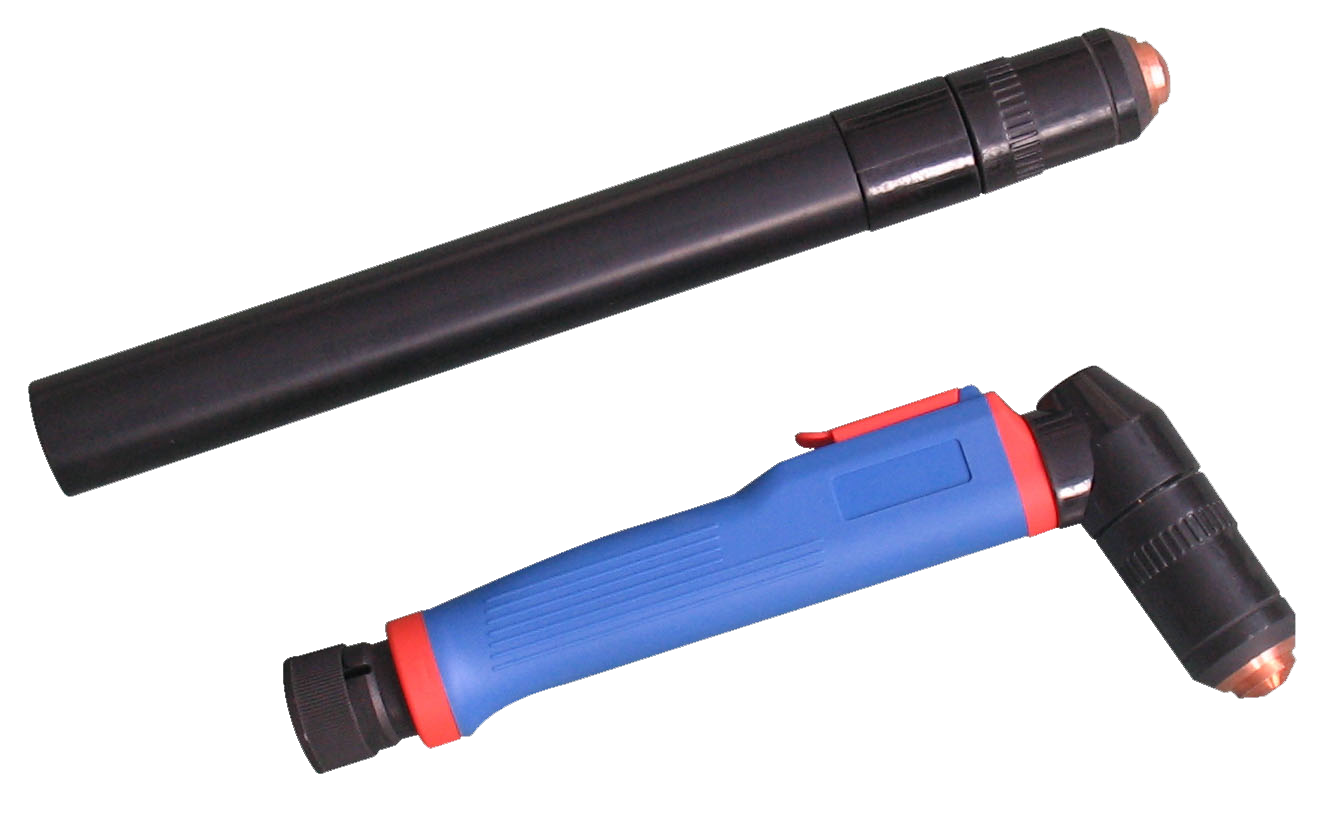

  • A141 Pencil Type CUT Gun & Regulator: High-quality cutting torch and regulator for optimal performance.

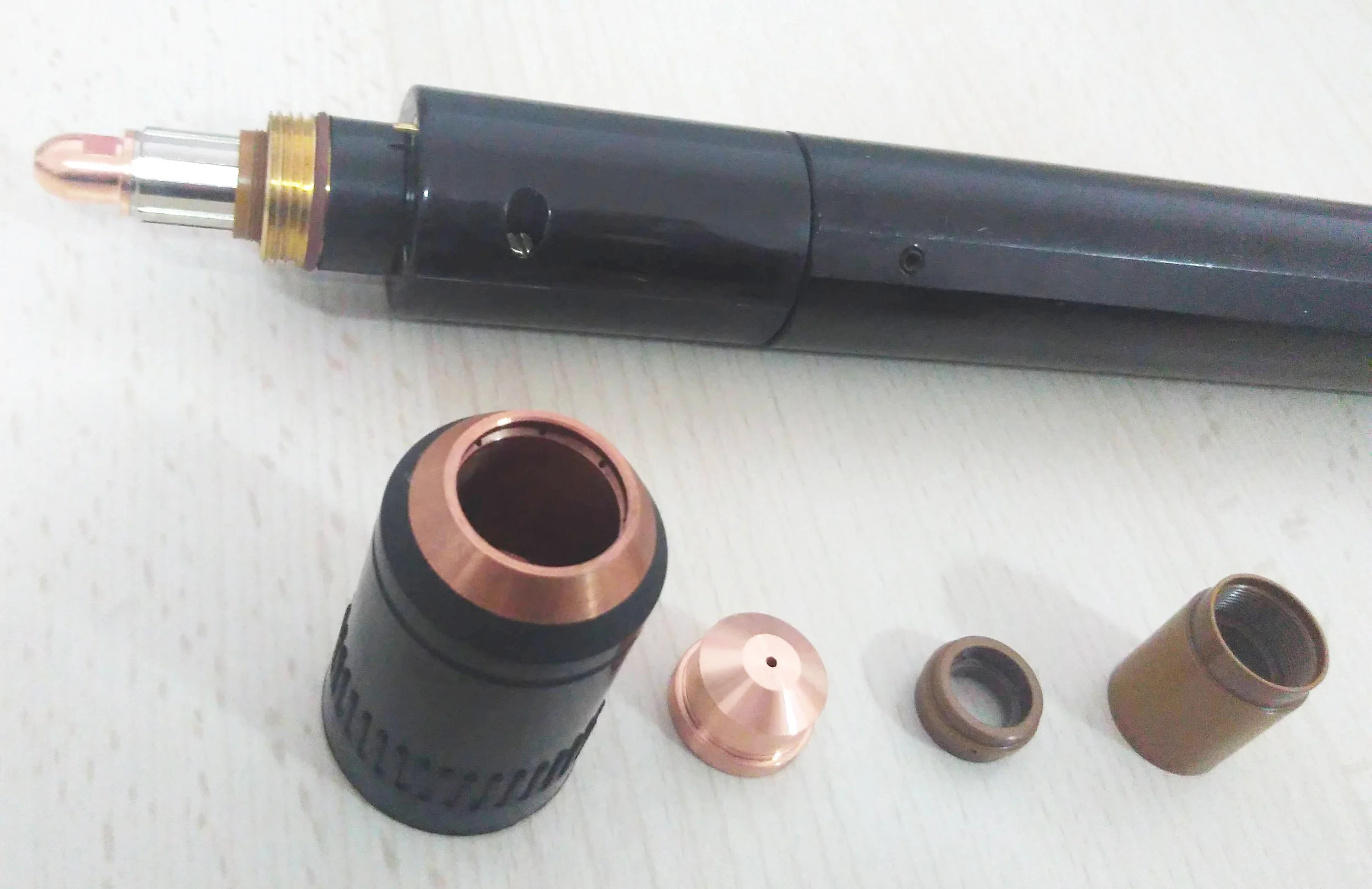

  • Cut Gun Consumables: Essential consumables for maintaining cutting efficiency.

  • 16 mm² Pure Copper Cable: Durable cable with customizable lengths to suit various job site requirements.

Technical Specifications:

Parameter Value
Input Voltage AC380V±10% 3PH
Input Power (KVA) 30
Max Output Current (A) 160
Duty Cycle @ 40°C 160A@100%
No Load Voltage (V) 340
Hot Start YES
Protection & Insulation IP 21 & F
Clean Cut 40mm
Max Cut 50mm
Dimensions (mm) 577x305x545
Weight (kg) 36 kg
