ATIG 315 - Hero Section

Advanced Inverter Technology

ATIG 315

3-Phase AC/DC Pulse TIG/MMA Inverter

Professional AC/DC pulse TIG inverter with adjustable frequency (20-100Hz), expanded AC balance control, and 20% energy efficiency improvement. Features 10-parameter memory storage and remote control for precision welding applications.

315A

Max Output

AC/DC

Pulse TIG

380V

3-Phase

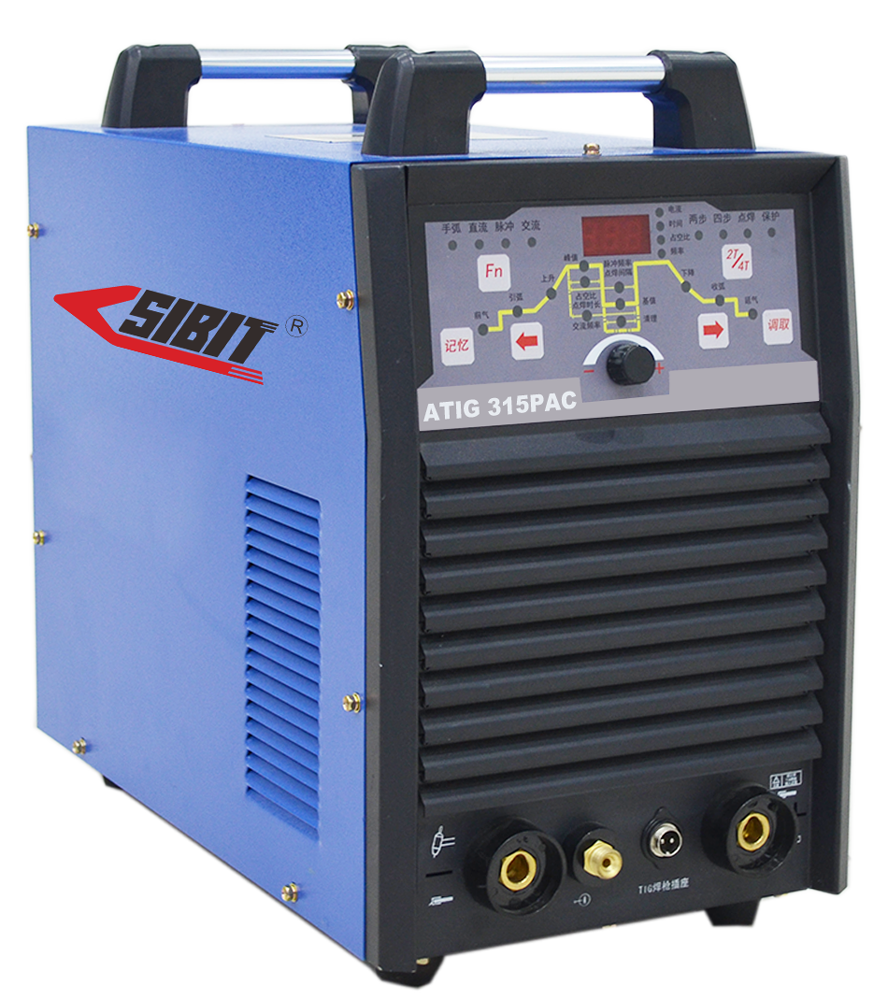

Blue welding machine labeled ATIG 315PAC with control panel and black vents.

TIG 315P AC/DC Technical Specifications

        TIG 315P AC/DC Technical Specifications

            Parameter
            MMA
            TIG

            Input Power Voltage
            3-Phase 380V AC ±10%
            3-Phase 380V AC ±10%

            Rated Input Current (A)
            19
            13.2

            Rated Input Capacity (kVA)
            12.5
            8.7

            Output Current Range (A)
            20 ~ 315
            5 ~ 315

            No-Load Voltage (V)
            60
            60

            Arc Striking Current (A)
            -
            20 ~ 160

            Peak Current (A)
            -
            5 ~ 315

            Base Current (A)
            -
            5 ~ 315

            Arc-ending Current (A)
            -
            5 ~ 315

            Pre-flow (s)
            -
            0.1 ~ 2

            Post-flow (s)
            -
            1 ~ 10

            Up-slope (s)
            -
            0 ~ 10

            Down-slope (s)
            -
            -

            Pulse Frequency (Hz)
            -
            0.2 ~ 20

            Pulse Width (%)
            -
            10 ~ 90

            AC Frequency (Hz)
            -
            20 ~ 100

            Clear Width (%)
            -
            10 ~ 50

            Insulation & Protection
            IP23S & H
            IP23S & H

            Dimensions (L × W × H) (mm)
            535 × 275 × 470
            535 × 275 × 470

            Weight (kg)
            28
            28

TIG 315P AC/DC Technical Specifications
Parameter	MMA	TIG
Input Power Voltage	3-Phase 380V AC ±10%	3-Phase 380V AC ±10%
Rated Input Current (A)	19	13.2
Rated Input Capacity (kVA)	12.5	8.7
Output Current Range (A)	20 ~ 315	5 ~ 315
No-Load Voltage (V)	60	60
Arc Striking Current (A)	-	20 ~ 160
Peak Current (A)	-	5 ~ 315
Base Current (A)	-	5 ~ 315
Arc-ending Current (A)	-	5 ~ 315
Pre-flow (s)	-	0.1 ~ 2
Post-flow (s)	-	1 ~ 10
Up-slope (s)	-	0 ~ 10
Down-slope (s)	-	-
Pulse Frequency (Hz)	-	0.2 ~ 20
Pulse Width (%)	-	10 ~ 90
AC Frequency (Hz)	-	20 ~ 100
Clear Width (%)	-	10 ~ 50
Insulation & Protection	IP23S & H	IP23S & H
Dimensions (L × W × H) (mm)	535 × 275 × 470	535 × 275 × 470
Weight (kg)	28	28

ATIG 315PAC AC/DC Pulse TIG Welding Machine | 3-Phase Industrial Welder

Product Overview

AC/DC PULSE TIG WELDING MACHINE

Versatile 3-phase AC/DC Pulse TIG welding machine for industrial applications. Delivers 315A output with smooth DC and stable AC square wave performance, advanced pulse control, and multi-material capability.

AC/DC Performance: 315A Output

315A TIG (5-315A) / 315A MMA (20-315A) with adjustable AC frequency (20-100Hz), AC balance (10-50%), pulse control, and 20% energy savings for steel, stainless steel, aluminum, copper, and titanium welding.

Target Applications

Industrial fabrication, shipbuilding, precision welding requiring AC/DC versatility across multiple materials.

Core Technology

Advanced inverter, HF start, AC frequency (20-100Hz), AC balance (10-50%), pulse (0.2-20Hz), remote control, memory storage.

Protection Systems

Over-voltage, over-current, overheating protection. IP23S, Grade H insulation, automatic hot start.

Key Features

Advanced AC/DC inverter technology

AC/DC Capability

Smooth DC and stable AC square wave outputs for steel, stainless steel, aluminum, copper, and titanium welding.

Adjustable AC Frequency

20-100Hz control focuses arc cone for precise aluminum and magnesium welding with narrow beads.

AC Balance Control

10-50% adjustment minimizes tungsten erosion and reduces weld etching for superior AC performance.

Pulse Control

Frequency (0.2-20Hz), width (10-90%), up slope (0-10s) for precise heat input management.

HF Start & Hot Start

High-frequency ignition with automatic hot start (20-160A) ensures reliable arc initiation.

Peak & Base Current

Peak (5-315A) and base (5-315A) current control enables precise heat management for thin/thick materials.

Remote Control

Remote current adjustment provides operational flexibility and precise control at distance.

20% Energy Savings

Efficient conversion reduces power consumption compared to conventional TIG welders.

Memory Storage

Save 10 parameter sets for quick setup and consistent results in repetitive operations.

Gas Flow Control

Pre-flow (0.1-2s) and post-flow (1-10s) protect tungsten and weld pool from oxidation.

2T/4T Modes

Selectable trigger modes from front panel for operational flexibility.

Comprehensive Protection

Over-voltage, over-current, overheating safeguards. IP23S, Grade H insulation.

Summary

The ATIG 315PAC is a versatile 3-phase AC/DC Pulse TIG machine delivering 315A capacity (TIG: 5-315A, MMA: 20-315A) with smooth DC and stable AC square wave outputs. Features adjustable AC frequency (20-100Hz), AC balance (10-50%), pulse control (0.2-20Hz, 10-90% width), and automatic hot start (20-160A). Peak/base current control (5-315A), remote capability, gas flow adjustment (pre: 0.1-2s, post: 1-10s), and 2T/4T modes. 20% energy savings with memory storage for 10 parameters. Comprehensive protection with IP23S, Grade H insulation. 3-Phase AC380V ±10% (12.5kVA MMA / 8.7kVA TIG). 535×275×470mm, 28kg. Suitable for steel, stainless steel, aluminum, copper, titanium welding in industrial fabrication, shipbuilding, and precision applications.

AC/DC Performance: 315A Output

Advanced AC/DC machine with 315A capacity, adjustable AC frequency (20-100Hz), AC balance (10-50%), pulse control, 20% energy savings, and memory storage for superior multi-material welding performance.
